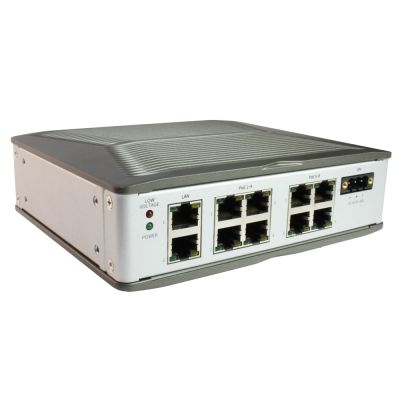

VES31 4/8 PoE+ Port Unmanaged GbE Vehicle Switch
An unmanaged, fanless mobile PoE switch designed for telematics applications in harsh environments
Key Features:
- 4/8 x IEEE 802.3af/at-compliant Gigabit Ethernet ports, 120W
- 4/8 PoE+ standard + 2 x Gigabit Ethernet ports
- Low battery voltage protection
- Jumbo frame support (up to 9216 Bytes)
- CE/FCC/UKCA/E13 mark certification
- Wide power input range 9~36VDC
- -40~70°C operating temperature
- Ignition power on/off support
- Power on/off delay time setting
Steady as a Rock
In addition to CE/FCC/UKCA certifications, these reliable mobile vehicle and railway PoE switches are certified with the E13 mark and EN50155 standards, ensuring top-tier reliability. Encased in a fanless, dustproof chassis, they support a wide voltage input range of 9VDC to 36VDC. Both models are fully operational under conditions of shock, vibration, and extreme temperatures from -40°C to 70°C. Notable features include an auto ignition power on/off function and low battery voltage protection to prevent battery drain, along with a power-on/power-off delay timer for smooth wireless data transmission or power surge prevention.
Round-the-Clock Surveillance
The VES 31-4S/8S and VES 31-4SR/8SR provide stable network service through their 4/8 PoE+ ports with a total output of 120W, along with 2 Gigabit Ethernet ports. The latter models come with M12 X-coded connectors. These mobile PoE switches offer flexibility in connecting up to 8 IP cameras, making them ideal for AI applications such as driver behaviour monitoring, traffic light recognition, theft detection, and railway intrusion prevention. Additionally, all recorded footage can be securely transmitted to an NVR via the VES 31-4S/8S or VES 31-4SR/8SR for future reference.
Uncluttered Yet Efficient
This compact mobile PoE switch, when connected to a wireless access point, simplifies wireless gateway connections by eliminating the need for extra power cables. It offers high-speed, low-latency WWAN/WLAN connectivity, meeting the demands of tasks, entertainment, and infotainment without compromising efficiency.
Time is of the Essence
The mobile vehicle and railway PoE switch also enhances the Passenger Information System (PIS) by seamlessly transmitting large volumes of video streams, voice, and critical data through an Ethernet network. The access point converts and relays this data wirelessly to cabin monitors, helping travellers reduce uncertainty and optimize their schedules for maximum productivity.
|
Architecture |
|
|
Power over Ethernet |
|
|
Network Connector |
|
|
Standard Compliance |
|
|
I/O Interface |
|
|
Power Management |
|
|
Dimensions |
|
|
Environment |
|
|
Standards/Certifications |
|
Ordering Information
VES 31-4S
4 x RJ45 10/100/1000 PoE port (802.3af/at), 2 x RJ45 10/100/1000 Ethernet port, 9~36VDC input, ignition detection, low voltage protection, delay timer, E13 Mark
VES 31-8S
8 x RJ45 10/100/1000 PoE port (802.3af/at), 2 x RJ45 10/100/1000 Ethernet port, 9~36VDC input, ignition detection, low voltage protection, delay timer, E13 Mark
VES 31-4SR
4 x M12 X-Coded 10/100/1000 PoE port (802.3af/at), 2 x M12 X-coded 10/100/1000 Ethernet port, 24VDC input w/o isolation, ignition detection, low voltage protection, delay timer, EN50155
VES 31-8SR
8 x M12 X-coded 10/100/1000 PoE port (802.3af/at), 2 x M12 X-coded 10/100/1000 Ethernet port, 24VDC input w/o isolation, ignition detection, low voltage protection, delay timer, EN50155
You have to VES 31-4S (P/N: 10VE0003100X0)
4 x RJ45 10/100/1000 PoE port (802.3af/at), 2 x RJ45 10/100/1000 Ethernet port, 9~36VDC input, ignition detection, low voltage protection, delay timer, E13 Mark
VES 31-8S (P/N: 10VE0003101X0)
8 x RJ45 10/100/1000 PoE port (802.3af/at), 2 x RJ45 10/100/1000 Ethernet port, 9~36VDC input, ignition detection, low voltage protection, delay timer, E13 Mark
