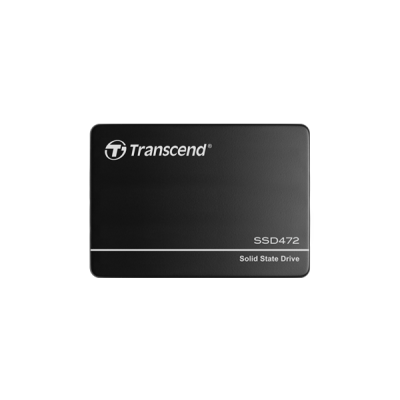

SSD472K & SSD472K-I 2.5" SATA SSDs
128GB/256GB/512GB/1TB/2TB/4TB 2.5" SATA & PATA SSDs
Key Features:
- Compliant with RoHS 2.0 standards
- DDR3 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Extended Temp. (-20°C ~ 75°C) and Wide Temp. (-40°C ~ 85°C) options available
Transcend's SSD472K features the SATA III 6Gb/s interface and 112-layer 3D NAND technology. Its built-in DRAM cache allows faster data access, while anti-sulfur resistors guarantee its reliability in harsh conditions. The SSD472K is fully tested in-house to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles and an extended operating temperature ranging from -20℃~75℃.
Transcend also offers the SSD472K-I with wide temperature (-40℃ ~ 85℃) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.
Firmware Features
- Dynamic thermal throttling
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- NCQ command for better performance
- Full drive encryption with Advanced Encryption Standard (AES) (optional)
- Power-saving DevSleep (Device Sleep) mode (optional)
Hardware Features
- Compliant with RoHS 2.0 standards
- DDR3 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Extended Temp. (-20°C ~ 75°C) and Wide Temp. (-40°C ~ 85°C) options available
|
Appearance |
|
|
Dimensions |
100.45 mm x 69.85 mm x 7 mm (3.95" x 2.75" x 0.28") |
|---|---|
|
Weight |
54 g (1.9 oz) |
|
Form Factor |
2.5" |
|
Interface |
|
|
Bus Interface |
SATA III 6Gb/s |
|
Storage |
|
|
Capacity |
|
|
Flash Type |
112-layer 3D NAND flash |
|
Operating Environment |
|
|
Operating Voltage |
5V±5% |
|
Operating Temperature |
|
|
Storage Temperature |
-55°C (-67°F) ~ 85°C (185°F) |
|
Humidity |
5% ~ 95% |
|
Shock |
15 G, 11 ms, 3 axis |
|
Vibration (Operating) |
20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency) |
|
Power |
|
|
Power Consumption (Operation) |
5 watt(s) |
|
Power Consumption (IDLE) |
1.3 watt(s) |
|
Performance |
|
|
Sequential Read/Write (CrystalDiskMark) |
Read: Up to 560 MB/s Write: Up to 520 MB/s |
|
4K Random Read/Write (IOmeter) |
Read: Up to 90,000 IOPS Write: Up to 85,000 IOPS |
|
Mean Time Between Failures (MTBF) |
3,000,000 hour(s) |
|
Terabytes Written (TBW) |
Up to 9680 TBW |
|
Drive Writes Per Day (DWPD) |
2.16 (3 yrs) |
|
Note |
|
|
Warranty |
|
|
Certificate |
|
