Brand: Philips

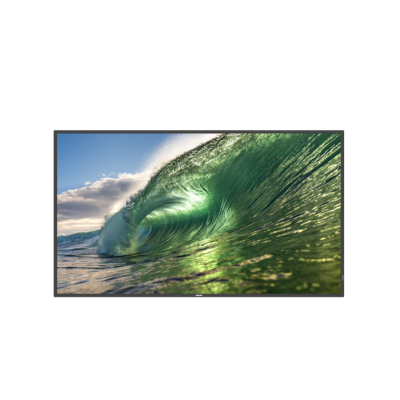

55BDL3650QE 55" QE-Line Eco 4K UHD Android Display
In stock
SKU:
55BDL3650QE
Philips Signage 3000 Series EcoDesign
Key Features:
- Optional Interact for wireless screen share
- PPDS Wave ready for remote management
- FailOver. Ensure content is always running
- Android SoC processor. Native and web apps
- Connect and control your content via the cloud
- Wifi and Bluetooth 5.2 via an optional module
- Consumes >50% less energy compared to equivalent models
- EPEAT Silver Climate+ certified
- 100% recycled and recyclable packaging
Enquire Now
Enquire Now
Engage your audience with this environmentally conscious 4K Ultra HD digital display. Delivering uncompromised 4K UHD performance while running on half the power compared to other market models, with the very latest PPDS EcoDesign.
Connectivity
| Audio output | 3.5 mm jack |
|---|---|
| Optional WiFi functionality | CRD22 Wi-Fi dongle |
| Video input | DVI-I (x 1) |
| HDMI 2.0 (x 2) | |
| USB 2.0 (x 2) | |
| USB 3.0 (x 2) | |
| Audio input | 3.5 mm jack |
| Other connections | micro SD |
| OPS | |
| External control | RJ45 |
| RS232C (in/out) 2.5 mm jack | |
| IR (in/out) 3.5 mm jack |
Convenience
| Remote control signal | Lockable |
|---|---|
| Energy-saving functions | Smart Power |
| Placement | Landscape (18/7) |
| Portrait (18/7) | |
| Network controllable | RS232 |
| RJ45 | |
| Tiled Matrix | Up to 15 x 15 |
| Keyboard control | Lockable |
| Hidden | |
| Signal loop through | RS232 |
| IR Loop through |
Accessories
| Included Accessories | IR sensor cable (1.8 m) (x 1) |
|---|---|
| RS232 daisy-chain cable | |
| Philips logo (x 1) | |
| AC Power Cord | |
| AC Switch Cover | |
| Cable clip (x2) | |
| Quick start guide | |
| RS232 cable | |
| USB Cover (x 1) |
Internal Player
| Memory | 16 GB |
|---|---|
| 3 GB DDR | |
| GPU | G52 MC1 |
| CPU | Dual-core cortex A53 1.1 GHz |
| Dual-core cortex A73 1.15 GHz | |
| Quad-Core Cortex A55 |
Dimensions
| Wall Mount | 400 mm x 400 mm, M6 |
|---|---|
| Set Height | 712.6 mm |
| Set Width | 1241.8 mm |
| Set Width (inch) | 48.89 inch |
| Set Depth | 63.6 mm |
| Product weight | 17.2 kg |
| Bezel width | 13.9 mm (Even bezel) |
| Set Depth (inch) | 2.50 inch |
| Product weight (lb) | 37.92 lb |
| Set Height (inch) | 28.06 inch |
Sound
| Built-in speakers | 2 x 10 W RMS |
|---|
Power
| Energy Label Class | D |
|---|---|
| Consumption (Typical) | 70 W |
| Power Saving Features | Smart Power |
| Consumption (Max) | 120 W |
| Standby power consumption | <0.5 W |
| Mains power | 100 ~ 240 VAC |
Multimedia Applications
| USB Playback Picture | JPEG |
|---|---|
| BMP | |
| PNG | |
| USB Playback Video | H.264 |
| H.263 | |
| H.265 | |
| MPEG1/2 | |
| MPEG4 | |
| VP8 | |
| VP9 | |
| USB Playback Audio | AAC |
| HEAAC | |
| MPEG |
Operating conditions
| Temperature range (storage) | -20 ~ 60 °C |
|---|---|
| Temperature range (operation) | 0 ~ 40 °C |
| Humidity range (storage) [RH] | 5~95% RH (No condensation) |
| Humidity range (operation)[RH] | 20~80% RH (No condensation) |
| Altitude | 0 ~ 3000 m |
| MTBF | 30,000 hour(s) |
Picture/Display
| Panel resolution | 3840 x 2160 |
|---|---|
| Pixel pitch | 0.315 x 0.315 mm |
| Brightness | 350 cd/m² |
| Diagonal screen size (metric) | 138.7 cm |
| Display colours | 1.06 Billion |
| Optimum resolution | 3840 x 2160 @ 60 Hz |
| Picture enhancement | 3/2 - 2/2 motion pull down |
| Dynamic contrast enhancement | |
| Motion compens. deinterlacing | |
| Aspect ratio | 16:9 |
| Dynamic contrast ratio | 500,000:1 |
| Viewing angle (horizontal) | 178 degree |
| Operating system | Android 10 |
| Panel technology | IPS |
| Response time (typical) | 8 ms |
| Viewing angle (vertical) | 178 degree |
| Diagonal screen size (inch) | 54.6 inch |
| Contrast ratio (typical) | 1200:1 |
Miscellaneous
| On-Screen Display Languages | English |
|---|---|
| French | |
| German | |
| Italian | |
| Polish | |
| Turkish | |
| Russian | |
| Simplified Chinese | |
| Spanish | |
| Traditional Chinese | |
| Arabic | |
| Japanese | |
| Regulatory approvals | CE |
| CB | |
| BSMI | |
| FCC, Class A | |
| VCCI | |
| J-Moss | |
| ETL | |
| RoHS | |
| Warranty | 3 year warranty |
Supported Display Resolution
|
Video formats |
480i, 60 Hz |
|---|---|
|
480p, 60 Hz |
|
|
1080p, 50, 60 Hz |
|
|
1080i, 50, 60 Hz |
|
|
720p, 50,60 Hz |
|
|
3840 x 2160p, 24, 25, 30, 60 Hz |
|
|
Computer formats |
1920 x 1080, 60 Hz |
|
1600 x 1200, 60 Hz |
|
|
1440 x 900, 60 Hz |
|
|
1280 x 1024, 60 Hz |
|
|
1280 x 720, 60 Hz |
|
|
1280 x 800, 60 Hz |
|
|
1024 x 768, 60, 70, 75 Hz |
|
|
720 x 400, 70 Hz |
|
|
640 x 480, 60, 67, 72, 75 Hz |
|
|
1152 x 870, 75 Hz |
|
|
1680 x 1050, 60 Hz |
|
|
800 x 600, 56, 60, 72, 75 Hz |
|
|
1152 x 864, 75 Hz |
|
|
832 x 624, 75 Hz |
|
|
3840 x 2160, 24, 25, 30, 60 Hz |
