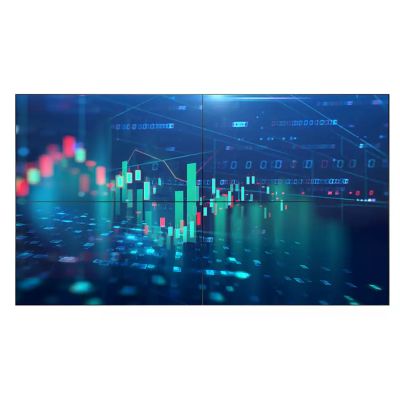

65BDL6005X 65" UHD IPS 24/7 Video Wall Display
65BDL6005X 65" UHD IPS 24/7 Video-Wall 2.3mm-Bezel OPS
Key Features:
- Effortless setup. Total control.
- Operate, monitor and maintain with CMND & Control
- Add Android processing power with an optional CRD50 module
- Cost-effective system solution
- FailOver ensures content is always playing
- Brilliant images. Endless possibilities.
- IPS panel: rich color consistency from every angle
- Ultra HD monitors. Brilliant images. Clear contrast
- Ultra-narrow bezels. For distraction-free images
- Powerful system solution
- Energy-saving automatic backlight control
- OPS slot allows for PC embedding without cabling
- Tiling mode. Create tiled 4K videowalls of any size
The 65BDL6005X is a 65" UHD IPS 24/7 video wall display designed with an ultra-narrow bezel for use in tiled screen setups. Equipped with CMND & Control for network management along with Pure Colour Pro for better visual calibration.
Key Features:
- Effortless setup. Total control.
- Operate, monitor and maintain with CMND & Control
- Add Android processing power with an optional CRD50 module
- Cost-effective system solution
- FailOver ensures content is always playing
- Brilliant images. Endless possibilities.
- IPS panel: rich color consistency from every angle
- Ultra HD monitors. Brilliant images. Clear contrast
- Ultra-narrow bezels. For distraction-free images
- Powerful system solution
- Energy-saving automatic backlight control
- OPS slot allows for PC embedding without cabling
- Tiling mode. Create tiled 4K videowalls of any size
Picture/Display
• Diagonal screen size: 64.5 inch / 164 cm
• Panel resolution: 3840 x 2160
• Optimum resolution: 3840 x 2160 @ 60 Hz
• Brightness: 500 cd/m²
• Dynamic contrast ratio: 500,000:1
• Response time (typical): 8 ms
• Aspect ratio: 16:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.372 x 0.372 mm
• Display colors: 1.07 B
• Contrast ratio (typical): 1300:1
• Haze: 25 %
Supported Display Resolution
• Computer formats
720 x 400 70Hz
800 x 600 60, 75Hz
1024 x 768 60, 75Hz
1280 x 768 60Hz
1280 x 800 60Hz
1280 x 960 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1366 x 768 60Hz
1600 x 1200 60Hz
1920 x 1080 60Hz
3840 x 2160 60Hz
• Video formats
720p 50, 60Hz
1080i 25, 30Hz
1080p 50, 60Hz
3840 x 2160 60Hz
2160P 50 60Hz ((HDMI/OPS/DP)
Connectivity
• Video input: Display Port1.2 (x1), DVI-D (x1), HDMI
2.0 (x2), VGA (Analog D-Sub) (x1)
• Audio input: 3.5 mm mini jack (x1)
• Video output: DisplayPort 1.2 (x1)
• Audio output: 3.5 mm Mini Jack (x1)
• External control: IR (in) 3.5 mm jack, IR (in/out)
RJ45, LAN RJ45 (x2), RS232 (in/out) RJ45
• Other connections: OPS, USB 2.0 (x1)
Convenience
• Placement: Landscape (24/7), Portrait (24/7)
• Tiled Matrix: Up to 10 x 10
• Signal loop through: DisplayPort, IR and RS232 via
RJ45, LAN
• Ease of installation: Carrying Handles, Smart Insert
• Energy saving functions: Smart Power
• Network controllable: LAN (RJ45)
• Screen saving functions: Pixel Shift, Low Brighte
Dimensions
• Set dimensions (W x H x D): 1432.6 x 807.6 x 88.8
mm(D@WallMount)/91.7 mm(D@Handle) mm
• Set dimensions in inch (W x H x D):
56.40 x 31.80 x 3.50 (D@WallMount)/3.61
(D@Handle) inch
• Bezel width: 2.3 mm + 1.2 mm
• Wall Mount: 400mm x 400mm, M6
• Product weight: 29.2 kg
Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hour(s)
• Humidity range (operation)[RH]: 20 - 80% (without
condensation)
• Humidity range (storage) [RH]: 5 - 95% (without
condensation)
Power
• Consumption (Typical): 210 W
• Consumption (Max): 400 W
• Standby power consumption: 0.5 W
• Consumption (On mode): 150 W
• Energy Label Class: G
Sound
• Built-in speakers: 2 x 10W (RMS)
Accessories
• Included Accessories: AC Switch Cover, Edge
Alignment Kit, Gap pad x3, IR sensor cable (1.8 m)
(x1), Quick start guide (x1), Remote control & AAA
batteries, RJ45 / RS232 converter, Wire Clamper
(x3), Power cord, DP cable (x1), RJ45 cable (x1)
Miscellaneous
• On-Screen Display Languages: Arabic, English,
French, German, Italian, Japanese, Polish, Russian,
Spanish, Simplified Chinese, Turkish, Traditional
Chinese
• Regulatory approvals: CE, FCC, Class A, RoHS, CB,
ETL
• Warranty: 3 years warranty
