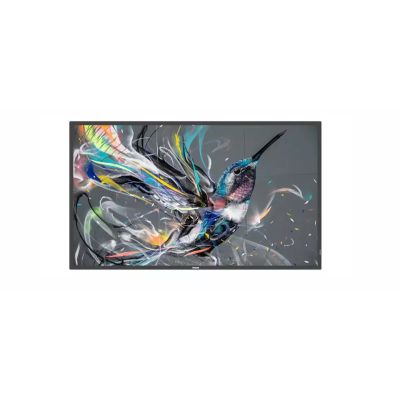

75BDL3511Q UHD 18/7 Display
75BDL3511Q 75" UHD Easy-Setup 18/7 SmartPlayer CMND & Control Failover
Key Features:
- Schedule what you want, when you want with SmartPlayer
- Energy-saving automatic backlight control
- Integrated media player. Easily schedule USB content
- FailOver ensures content is always playing
- Easy control. Remotely manage networked displays
- Support for OPS inserts
The 75BDL3511Q is a 75 inch UHD easy-setup 18/7 display with included SmartPlayer to allow for schedulded content management all from a single USB device. Support for OPS inserts such as the CRD50 for additional computing power. The failover feature ensures an output is always displayed even in the event of the primary source disconnecting. CMND & Control provides network management through a LAN connection, giving both monitoring capabilites and input control.
Key Features:
- Schedule what you want, when you want with SmartPlayer
- Energy-saving automatic backlight control
- Integrated media player. Easily schedule USB content
- FailOver ensures content is always playing
- Easy control. Remotely manage networked displays
- Support for OPS inserts
|
Picture/Display |
|
|
Diagonal screen size |
74.5 inch / 189.3 cm |
|
Panel resolution |
3840x2160 |
|
Optimum resolution |
3840x2160 @ 60 Hz |
|
Brightness |
400 cd/m² |
|
Dynamic contrast ratio |
500,000:1 |
|
Response time (typical) |
8 ms |
|
Aspect ratio |
16:9 |
|
Viewing angle (H / V) |
178 / 178 degree |
|
Pixel pitch |
0.4296 x 0.4296 mm |
|
Display colors |
1.07 Billion |
|
Panel technology |
IPS |
|
Contrast ratio (typical) |
1200:1 |
|
Clinical image |
D-Image preset (dicom part 14 compatible) |
|
Haze |
1% |
|
Supported Display Resolution (Computer Format) |
|
|
Resolution |
Refresh Rate |
|
640 x 480 |
60, 67, 72, 75Hz |
|
720 x 400 |
70Hz |
|
800 x 600 |
56, 60, 72, 75Hz |
|
832 x 624 |
75Hz |
|
1024 x 768 |
60, 70, 75Hz |
|
1152 x 864 |
75Hz |
|
1152 x 870 |
75Hz |
|
1280 x 720 |
60Hz |
|
1280 x 800 |
60Hz |
|
1280 x 1024 |
60Hz |
|
1440 x 900 |
60Hz |
|
1600 x 1200 |
60Hz |
|
1680 x 1050 |
60Hz |
|
1920 x 1080 |
60Hz |
|
Supported Display Resolution (Video Format) |
|
|
Resolution |
Refresh Rate |
|
480i |
60Hz |
|
480p |
60Hz |
|
576p |
50Hz |
|
576i |
50Hz |
|
720p |
60Hz |
|
1080i |
50, 60Hz |
|
1080p |
50, 60Hz |
|
3840 x 2160 |
30Hz |
| 3840 x 2160 | 60Hz |
|
Connectivity |
|
|
Video input |
DVI-I (x 1), HDMI 2.0 (x2), USB 2.0 (x2) |
|
Audio input |
3.5 mm jack |
|
Audio output |
3.5mm jack |
|
External control |
IR (in/out) 3.5 mm jack, RJ45, RS232C (in/out) 2.5 mm jack |
|
Other connections |
OPS |
|
Convenience |
|
|
Placement |
Landscape (18/7), Portrait (18/7) |
|
Tiled Matrix |
Up to 10 x 15 |
|
Signal loop through |
RS232, IR Loopthrough |
|
Ease of installation |
Smart Insert |
|
Energy saving functions |
Smart Power |
|
Network controllable |
RS232, RJ45 |
|
Keyboard control |
Hidden, Lockable |
|
Remote control signal |
Lockable |
|
Start-up |
Switch on delay, Switch on status, Boot on source |
|
Start-up window |
enable / disable Philips logo |
|
Operating Conditions |
|
|
Temperature range (operation) |
0 ~ 40 °C |
|
Temperature range (storage) |
-20 ~ 60 °C |
|
Altitude |
0 ~ 3000 m |
|
MTBF |
50,000 hour(s) |
|
Humidity range (operation)[RH] |
20 ~ 80% RH (No condensation) |
|
Humidity range (storage) [RH] |
5 ~ 95% RH (No condensation) |
|
Power |
|
|
Consumption (Typical) |
180 W |
|
Consumption (Max) |
320 W |
|
Standby power consumption |
<0.5W |
|
Mains power |
100 - 240V~, 50/60Hz |
|
Power Saving Features |
Smart Power |
|
Energy Label Class |
G |
|
Sound |
|
|
Built-in speakers |
2 x 10W RMS |
|
Accessories |
|
|
Included Accessories |
IR sensor cable (1.8 m) (x1), |
|
Miscellaneous |
|
|
On-Screen Display Languages |
Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese |
|
Regulatory approvals |
CE, FCC, Class A, CB, BSMI, |
|
Warranty |
3 year warranty |
|
Multimedia Applications |
|
|
USB Playback Video |
H.264, JPEG, MPEG, WMV3 |
|
USB Playback Picture |
BMP, JPEG, PNG |
|
USB Playback Audio |
AAC, WMA, MPEG, HEAAC |
|
Dimensions |
|
|
Set dimensions (W x H x D) |
1683.5 x 961.7 x 69.5mm(D@wall mount) / |
|
Set dimensions in inch (W x H x D) |
66.28 x 37.86 x 2.74(@ wall mount)/ 3.61(@ |
|
Bezel width |
14.9 mm (Even bezel) |
|
Wall Mount |
600mm x 400mm , M8 |
|
Product weight |
37.30 kg |
|
Product weight (lb) |
82.23 lb |
