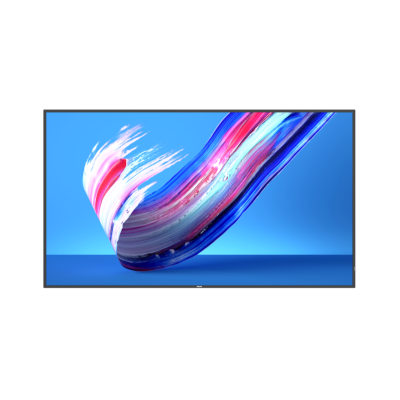

75BDL3650Q 75" 18/7 Q-Line Android Display 4K Ultra HD
Inform and enthrall with a Philips Q-Line digital display.
Key Features:
- 75"
- Direct LED Backlight
- Ultra HD
Connect and control your content via the cloud
Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium-based browser, design your content online and connect a single display, or your complete network. Show content in both landscape and portrait mode, with full HD resolution. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlists.
FailOver. Ensure your display never goes blank
Critical for demanding commercial applications, FailOver is a revolutionary technology that automatically plays backup content on screen in the unlikely event of an input source or application failure. Simply select a primary input connection and a FailOver connection and you are ready for instant content protection.
Easily schedule content from USB or internal memory
Easily schedule content to play from USB or internal memory. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done.
Optional Interact for wireless screen share
Wirelessly screen share using your existing Wi-Fi network to instantly and securely connect devices, or use our optional HDMI Interact dongle to cast directly onto the screen without connecting to the secured network.
Android SoC processor. Native and web apps
Powered by our Android 10 SoC platform, these hard-working Philips professional displays are optimised for native Android apps, and you can install web apps directly onto the display too. Flexible and secure, ensuring display specs stay up to the moment for longer.
Catch the Wave for revolutionary results
Unlock the power, versatility, and intelligence inside your Philips Q-Line displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and set-up, monitoring and controlling displays, upgrading firmware, managing playlists, and setting power schedules. Saving you time, energy, and environmental impact.
-
Picture/Display
- Diagonal screen size (inch)
-
74.5 inch
- Diagonal screen size (metric)
-
189.3 cm
- Panel resolution
-
3840 x 2160
- Optimum resolution
-
3840 x 2160 @ 60 Hz
- Brightness
-
400 cd/m²
- Contrast ratio (typical)
-
1200:1
- Dynamic contrast ratio
-
500,000:1
- Response time (typical)
-
8 ms
- Aspect ratio
-
16:9
- Viewing angle (horizontal)
-
178 degree
- Viewing angle (vertical)
-
178 degree
- Pixel pitch
-
0.4296 x 0.4296 mm
- Display colors
-
1.07 Billion
- Picture enhancement
-
-
3/2 - 2/2 motion pull down
-
Progressive scan
-
Dynamic contrast enhancement
-
- Panel technology
-
ADS
- Operating system
-
Android 10
- Haze
-
2%
-
Supported Display Resolution
- Computer formats
-
-
1920 x 1080, 60Hz
-
1680 x 1050, 60Hz
-
1600 x 1200, 60Hz
-
1440 x 900, 60Hz
-
1280 x 1024, 60Hz
-
1280 x 800, 60Hz
-
1280 x 720, 60Hz
-
1024 x 768, 60, 70, 75Hz
-
1152 x 864, 75Hz
-
3840 x 2160, 60 Hz, 50 Hz
-
720 x 400, 70Hz
-
800 x 600, 56, 60, 72, 75Hz
-
800 x 600, 56,60,72 Hz
-
832 x 624, 75Hz
-
- Video formats
-
-
1080i, 50, 60Hz
-
720p, 50,60 Hz
-
1080p, 50, 60Hz
-
2160p, 50, 60Hz
-
-
Connectivity
- Video input
-
-
USB 2.0 (x2)
-
DVI-I (x 1)
-
HDMI 2.0 (x2)
-
USB 3.0 (x1)
-
- Audio input
-
3.5 mm jack
- Audio output
-
3.5mm jack
- External control
-
-
RS232C (in/out) 2.5 mm jack
-
IR (in/out) 3.5 mm jack
-
RJ45
-
- Other connections
-
-
micro SD
-
OPS
-
-
Convenience
- Keyboard control
-
-
Hidden
-
Lockable
-
- Network controllable
-
-
RS232
-
RJ45
-
- Signal loop through
-
-
RS232
-
IR Loopthrough
-
- Energy saving functions
-
Smart Power
- Remote control signal
-
Lockable
- Tiled Matrix
-
Up to 3 x 3
- Placement
-
-
Landscape (18/7)
-
Portrait (18/7)
-
- Ease of installation
-
Smart Insert
-
Dimensions
- Bezel width
-
14.9 mm (Even bezel)
- Set Width
-
1683.5 mm
- Set Height
-
961.7 mm
- Set Depth
-
69.5mm(D@wall mount) / 91.8mm(D@handle) mm
- Set Width (inch)
-
66.28 inch
- Set Height (inch)
-
37.86 inch
- Set Depth (inch)
-
2.74(@ wall mount)/ 3.61(@ handle) inch
- Product weight
-
35.75 kg
- Product weight (lb)
-
78.82 lb
- Wall Mount
-
600 mm x 400 mm, M8
-
Operating conditions
- Altitude
-
0 ~ 3000 m
- Temperature range (operation)
-
0 ~ 40 °C
- Temperature range (storage)
-
-20 ~ 60 °C
- MTBF
-
50,000 hour(s)
- Humidity range (operation)[RH]
-
20 ~ 80% RH (No condensation)
- Humidity range (storage) [RH]
-
5 ~ 95% RH (No condensation)
-
Power
- Mains power
-
100 - 240V~, 50/60Hz
- Standby power consumption
-
<0.5W
- Power Saving Features
-
Smart Power
- Consumption (Max)
-
330 W
- Consumption (Typical)
-
165 W
- Energy Label Class
-
G
-
Sound
- Built-in speakers
-
2 x 10W RMS
-
Accessories
- Included Accessories
-
-
IR sensor cable (1.8 m) (x1)
-
RS232 daisy-chain cable
-
Philips logo (x1)
-
AC Power Cord
-
AC Switch Cover
-
Cable clip (x2)
-
HDMI cable (1.8 m) (x1)
-
Quick start guide
-
Remote control & AAA batteries
-
RS232 cable
-
USB Cover (x1)
-
-
Multimedia Applications
- USB Playback Video
-
-
H.264
-
H.263
-
H.265
-
MPEG1/2
-
MPEG4
-
VP8
-
VP9
-
- USB Playback Picture
-
-
BMP
-
JPEG
-
PNG
-
- USB Playback Audio
-
-
AAC
-
HEAAC
-
MPEG
-
-
Miscellaneous
- Warranty
-
3 year warranty
- On-Screen Display Languages
-
-
Simplified Chinese
-
Traditional Chinese
-
English
-
French
-
German
-
Italian
-
Polish
-
Russian
-
Spanish
-
Turkish
-
Japanese
-
Arabic
-
- Regulatory approvals
-
-
CE
-
CB
-
FCC, Class A
-
VCCI
-
RoHS
-
UL
-
-
Internal Player
- CPU
-
Quad Core Cortex A55
- GPU
-
G52 MC1
- Memory
-
-
16GB
-
3GB DDR
-
