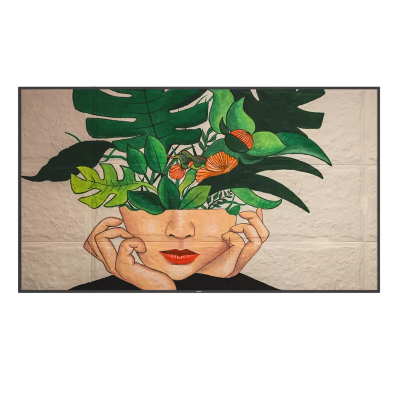

86BDL4511D 86" D-Line Professional 4K UHD Display
Make it stand out with a fast Philips D-Line Professional 4K UHD display.
Key Features:
- 86"
- UHD (3840 x 2160)
- 500cd/m²
Make it stand out with a fast Philips D-Line Professional 4K UHD display. Philips superb picture quality ensures true colours and intense contrast. You can effortlessly display content from multiple sources on a single screen.
Operate, monitor, and maintain with CMND & Control
Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.
FailOver ensures content is always playing
From the waiting room to the meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.
SmartPower for energy saving
The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.
Schedule what you want, when you want with SmartPlayer
Turn your USB into a true cost-effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug it into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own created playlists anytime, anywhere.
ADS wide-view panel display
Be seen from any angle with ADS wide-view technology. Advanced Super Dimension Switch delivers faster on-display picture processing for smoother content transitions, remarkable image accuracy, and superior colour reproduction with 180-degree viewing.
Picture/Display
| Diagonal screen size (metric) | 217.4 |
|---|---|
| Diagonal screen size (inch) | 85.6 |
| Panel resolution | 3840 x 2160 |
| Optimum resolution | 3840 x 2160 @60 Hz |
| Brightness | 500 |
| Dynamic contrast ratio | 500,000:1 |
| Response time (typical) | 8 |
| Aspect ratio | 16:9 |
| Viewing angle (horizontal) | 178 |
| Viewing angle (vertical) | 178 |
| Pixel pitch | 0.4935 x 0.4935 mm |
| Display colours | 1.07 Billion |
| Panel technology | IPS |
| Contrast ratio (typical) | 1200:1 |
| Haze | 3% |
Supported Display Resolution
| Computer formats | 640 x 480, 60 Hz |
|---|---|
| 800 x 600, 60 Hz | |
| 1024 x 768, 60 Hz | |
| 1280 x 720, 60 Hz | |
| 1280 x 1024, 60 Hz | |
| 1440 x 900, 60 Hz | |
| 1600 x 900, 60 Hz | |
| 1680 x 1050, 60 Hz | |
| 1920 x 1080, 60 Hz | |
| 3840 x 2160, 30, 60 Hz | |
| Video formats | 480i, 60 Hz |
| 480p, 60 Hz | |
| 576p, 50 Hz | |
| 576i, 50 Hz | |
| 720p, 50,60 Hz | |
| 1080i, 50, 60 Hz | |
| 1080p, 50, 60 Hz | |
| 2160p, 24, 30, 60 Hz |
Connectivity
| Video input | Display Port1.2 (x 1) |
|---|---|
| DVI-I (x 1) | |
| HDMI 2.0 (x 3) | |
| USB 2.0 (x 2) | |
| Audio input | 3.5 mm jack |
| Video output | DisplayPort 1.2 (x 1) |
| HDMI 2.0 (x 1) | |
| Audio output | 3.5 mm jack |
| External control | IR (in/out) 3.5 mm jack |
| RJ45 | |
| RS232C (in/out) 2.5 mm jack | |
| Other connections | OPS |
Convenience
| Placement | Landscape (24/7) |
|---|---|
| Portrait (24/7) | |
| Screen-saving functions | Pixel Shift, Low Bright |
| Signal loop through | DisplayPort |
| RS232 | |
| HDMI | |
| IR Loop through | |
| Energy-saving functions | Smart Power |
| Network controllable | RS232 |
| RJ45 | |
| Keyboard control | Hidden |
| Lockable |
Operating conditions
| Temperature range (operation) | 0 ~ 40 |
|---|---|
| Temperature range (storage) | -20 ~ 60 |
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 |
| Humidity range (operation)[RH] | 20–80% RH (No condensation) |
| Humidity range (storage) [RH] | 5–95% RH (No condensation) |
Power
| Consumption (Typical) | 355 |
|---|---|
| Consumption (Max) | 560 W |
| Standby power consumption | <0.5 W |
| Mains power | 100 ~ 240 VAC, 50 ~ 60 Hz |
| Energy Label Class | G |
Sound
| Built-in speakers | 2 x 10 W RMS |
|---|
Accessories
| Included Accessories | AC Switch Cover |
|---|---|
| Philips logo (x 1) | |
| RS232 daisy-chain cable | |
| AC power cord | |
| IR sensor cable (1.8 m) (x 1) | |
| Quick start guide (x 1) | |
| Remote control and AAA batteries | |
| RS232 cable | |
| USB Cover and screw x 1 | |
| Wire Clamper (x 3) |
Miscellaneous
| On-Screen Display Languages | Arabic |
|---|---|
| Dutch | |
| Danish | |
| English | |
| French | |
| Finnish | |
| German | |
| Italian | |
| Japanese | |
| Norwegian | |
| Polish | |
| Portuguese | |
| Russian | |
| Spanish | |
| Swedish | |
| Simplified Chinese | |
| Turkish | |
| Traditional Chinese | |
| Regulatory approvals | CE |
| FCC, Class A | |
| CCC | |
| RoHS | |
| CB | |
| BSMI | |
| EMF | |
| VCCI | |
| PSB | |
| ETL | |
| CECP | |
| EAC | |
| Warranty | 3 year warranty |
Multimedia Applications
| USB Playback Video | H.263 |
|---|---|
| H.264 | |
| H.265 | |
| MPEG | |
| USB Playback Picture | BMP |
| JPEG | |
| PNG | |
| USB Playback Audio | AAC |
| MPEG | |
| HEAAC |
Dimensions
|
Set Width |
1929.0 |
|---|---|
|
Set Height |
1100.0 |
|
Set Depth |
69.5 (D@Wall mount)/ 91.8 (D@Handle) |
|
Set Width (inch) |
75.94 |
|
Set Height (inch) |
43.31 |
|
Set Depth (inch) |
2.74 (D@Wall mount)/ 3.61 (D@Handle) |
|
Bezel width |
15.5 mm (Even bezel) |
|
Wall Mount |
600(H)x400(V) mm, M8 |
|
Product weight |
50.24 |
|
Product weight (lb) |
110.67 |
