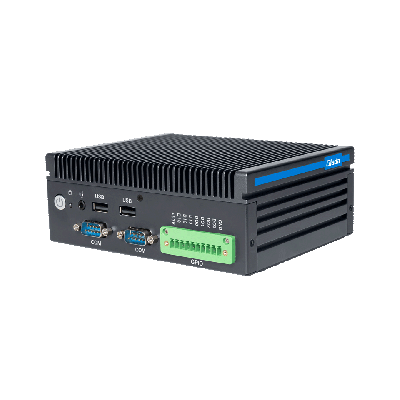

AF208 Fanless Semi-industrial N97 CPU
Fanless semi-industrial computer, Intel Alder Lake-N Inside, Supports 4K Display
Key Features:
- Intel® Alder Lake-N N-series/Core processors
- 1 x DP (4096 x 2160 @60 Hz)
- 1 x HDMI (4096 x 2160@60 Hz)
- Support Wi-Fi/BT module
- Fanless design
- -20°C ~60°C (-4°F~140°F) Operating temp.
- Lockable DC-IN, 12~24 V, 45 W
Powered by Intel Alder Lake-N Processors
The Giada AF208 outdoor digital signage player is powered by Intel® Alder Lake-N processors and supports up to 16GB DDR5-4800MHz memory. This power-efficient processing unit ensures optimal performance while keeping energy consumption low, a critical factor for outdoor digital signage that operates around the clock.

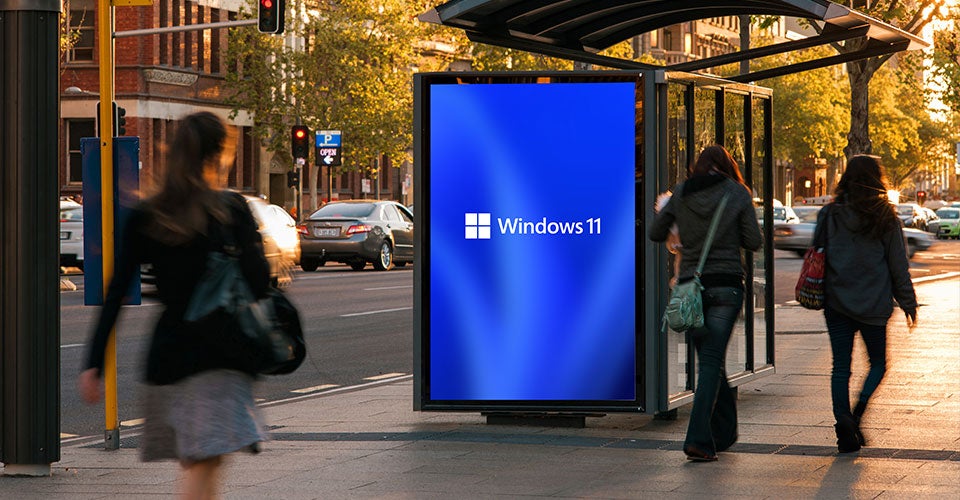

Wide-range Temperature & Voltage
The Giada AF208 outdoor signage player can operate within a wide temperature range of -20℃ to 60℃, making it suitable for use in various rugged environments. Its wide voltage (12 V24 V) range also makes it ideal for a variety of outdoor applications, including bus stop displays, drive-through menus, digital billboards, and wayfinding systems.
4K Media Playback with Dual Display Outputs
The signage player delivers smooth 4K media playback with dual display outputs. Equipped with Intel® UHD Graphics, it provides stunning, high-quality visuals through HDMI 2.0 and DP1.2 outputs, ensuring sharp, vibrant content that engages audiences in any outdoor environment.
Fanless Design
The Giada AF208 boasts a fanless design, making it a perfect fit for outdoor environments where space is often limited and airflow may be constrained. This design ensures that the player runs quietly and efficiently, with minimal maintenance required, while avoiding dust and debris build-up that can occur in traditional fan-based systems.
|
Processor |
CPU |
Intel® Processor N97
Intel® Atom X7211E Processor |
|
Turbo Frequency |
3.60 GHz/3.20 GHz |
|
|
Chipset |
SoC |
|
|
Processing Units |
4 Cores/2 Cores |
|
|
TDP |
12 W/6 W |
|
|
Memory |
Size |
8 GB/16 GB |
|
Type |
LPDDR5-4800 MHz, Single-channel |
|
|
Storage |
Socket 1 |
1 x M-Key M.2 (2280) for PCIe3.0 X4 SSD |
|
Display |
GPU |
Intel® UHD Graphics |
|
Graphic Engine |
DirectX 12.1, OpenGL 4.6, OpenCL 3.0 |
|
|
Display Interface |
1 x DP1.2 (Max.4096 x 2160 @60Hz) 1 x HDMI2.0 (Max.4096 x 2160 @60Hz) |
|
|
Network |
Network Controller |
1 x Intel l i226-V Gigabit Ethernet, 1 x Intel i210-AT Gigabit Ethernet |
|
Ethernet Interface |
1 x 2.5 GbE RJ45, 1 x 1 GbE RJ45 |
|
|
Wi-Fi/BT |
1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6/6E |
|
|
I/O interface |
USB |
2 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0 |
|
Serial Port |
2 x RS232, 2 x RS485 |
|
|
Audio |
1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT) |
|
|
Button |
1 x Power on, 1 x CLR-CMOS |
|
|
GPIO |
10pin GPIO (4 x GPI, 4 x GPO) |
|
|
Antenna |
2 x Connector for Wi-Fi/BT |
|
|
System |
TPM |
Optional: TPM2.0 |
|
Watchdog Timer |
Yes |
|
|
Auto Power On |
Yes |
|
|
RTC |
Set up independently every day, a week as a cycle |
|
|
Power Requirement |
Lockable DC-IN, 12~24 V, 45 W |
|
|
Dimensions |
160 mm x 130 mm x 60 mm (6.30” x 5.12” x 2.36”) |
|
|
Construction |
Metal, Grey |
|
|
Operating System |
Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit) |
|
|
Operating Temperature |
-20°C ~60°C (-4°F~140°F) @0.7m/s Air Flow |
|
|
Humidity |
95% @ 45°C (non-condensing) |
|
|
Certifications |
CE, FCC Class B, UKCA |
AF208-N9753N0G-GIA
CPU: Intel® Processor N97, Memory: 8 GB, LPDDR5, Single-channel
AF208-7211E53N0G-GIA
CPU: Intel® Atom X7211E Processor, Memory: 8 GB, LPDDR5, Single-channel
