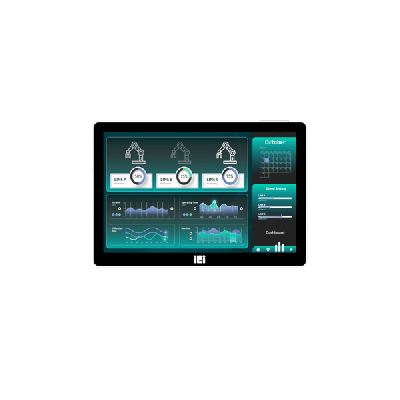

AFL4-W101-ADLP 10.1” Light Industrial Fanless Panel PC 12th Gen
10.1” Fanless Panel PC with Intel Alder Lake-P Core Processor
Key Features:
-
Intel Alder Lake-P Platform
-
New narrow bezel design
-
Anti-glare and Anti-UV PCAP
-
Support Gloved and Wet Hand Operation
-
Support WiFi 6E and Bluetooth 5.2
The AFL4-ADLP is a fanless and stylish panel PC from IEI's AFOLUX series, which offers affordable luxury solutions for light industrial markets. It runs on a 12th Gen Intel® Core™ processor and 8GB LPDDR4x soldered memory, providing excellent performance and reliability. It features an optimized PCAP touchscreen, a rich I/O port selection, and the latest wireless communication technology – Wi-Fi 6E and Bluetooth 5.2- making it ideal for high-speed connectivity and large embedded RAM applications. The AFL4-ADLP is suitable for various fields such as factory automation, retail, digital signage, transportation, and surveillance.
|
System |
|
|---|---|
|
CPU |
12th Gen Intel® Core™ Mobile i7/i5/i3 Processors (Alder Lake-P) |
|
On-board Memory |
Dual channel On board LPDDR4X 8G |
|
Communication |
|
|
Wireless |
IEEE 802.11ax 2T2R module (Wi-Fi 6E) with BT v5.0 (M.2 2230 A-key) |
|
I/O Interface |
|
|
Ethernet |
LAN1: Intel® I225V 2.5GbE controller LAN2: Intel® I225-LM 2.5GbE controller (Intel AMT) |
|
Audio |
AMP 1.2W (internal speaker) |
|
Expansion |
1 x M.2 M key 2242 (PCIE Gen4 x 4) 1 x M.2 M key 2280 (PCIE Gen4 x 4) |
|
Audio Codec |
Realtek ALC888S |
|
Power |
|
|
Input |
12V DC |
|
Environment |
|
|
Operating Temperature |
-10°C ~ 50°C |
|
Safety & EMC |
CE/EMC , FCC , RED (Class A) |
|
Humidity |
10% to 95% (non-condensing) |
|
Storage Temperature |
-20°C ~ 60°C |
|
IP Level |
Front panel IP65 |
|
Physical Characteristics |
|
|
Color |
Silver+Black |
|
Mounting |
Wall, Rack, Stand, ARM, VESA100 |
|
Construction Front Panel |
Aluminum die casting+SECC |
|
LCD |
|
|
Size |
10.1” |
|
Resolution |
1280 x 800 (16:10) |
|
Brightness (cd/m2) |
350(cd/m²) |
|
Contrast Ratio |
900:1 |
|
Viewing Angle (H-V) |
170°/170° |
|
Backlight MTBF |
30000 hours |
|
Touch |
|
|
Touch Screen |
Multi-point projected capacitive type (anti-UV / anti-glare coating,support gloves) Surface hardness: ≥7H |
|
Touch Controller |
EETI EXC 81 Series |
|
I/O Interface |
|
|
I/O Interface |
2 x RS-232 (by DB9) |
|
2 x RS-232/422/485 (by DB9) |
|
|
2 x LAN |
|
|
1 x DC Input Jack |
|
|
1 x Reset Button |
|
|
1 x Power Switch |
|
|
1 x AT/ATX switch |
|
|
2 x USB 3.2 Gen1x1 |
|
|
1 x USB2.0 |
|
|
1 x HDMI™ (up to 3840*2160 @30Hz) |
|
|
2 x LAN (Intel® I225V 2.5GbE controller) |
|
|
2 x USB 3.2 Gen2 |
|
|
OS Support |
|
|
OS Support |
Windows 10 IoT Linux |
