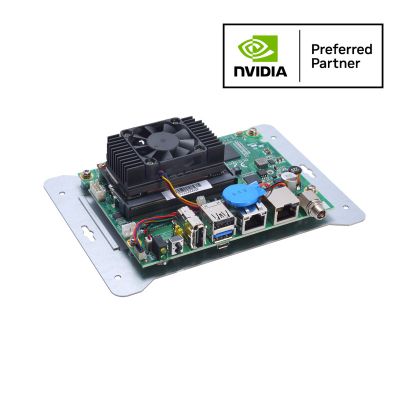

AIE110-ONX Edge AI Developer Kit with NVIDIA® Jetson Orin™
Axiomtek AIE110-ONX Edge AI Developer Kit NVIDIA® Jetson Orin™ SoM
Key Features:
- NVIDIA® Jetson Orin™ NX (up to 100 TOPS)
- 1 USB 2.0, 1 USB 3.2 Gen2, 1 GbE LAN
- Supports one 15W GbE PoE for camera
- 1 M.2 Key M NVMe SSD slot
- 1 PCI Express Mini Card slot for Wi-Fi/Bluetooth/LTE/GPS
- JetPack supported
- Supports 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon
The NVIDIA® Jetson Orin™ NX offers exceptional processing power with up to 100 TOPS. It features connectivity options such as 1 USB 2.0 port, 1 USB 3.2 Gen2 port, and 1 GbE LAN port. The device supports a 15W GbE Power over Ethernet (PoE) port specifically designed for camera connectivity. Furthermore, it includes a versatile M.2 Key M NVMe SSD slot for expandable storage and a PCI Express Mini Card slot that enables functionality for Wi-Fi, Bluetooth, LTE, or GPS.
Jetson Orin™ NX is fully compatible with JetPack, a comprehensive software development kit provided by NVIDIA, ensuring seamless development and deployment of applications. It offers robust support for secure 24/7 remote monitoring, control, and over-the-air (OTA) deployment, empowered by Allxon's technology, ensuring continuous operation with enhanced security measures.
Key Features:
- NVIDIA® Jetson Orin™ NX (up to 100 TOPS)
- 1 USB 2.0, 1 USB 3.2 Gen2, 1 GbE LAN
- Supports one 15W GbE PoE for camera
- 1 M.2 Key M NVMe SSD slot
- 1 PCI Express Mini Card slot for Wi-Fi/Bluetooth/LTE/GPS
- JetPack supported
- Supports 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon
| AI Accelerator | NVIDIA® Jetson OrinTM NX |
| CPU | 16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| 8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 | |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| System Memory | 16GB: 16GB 128-bit LPDDR5 onboard |
| 8GB: 8GB 128-bit LPDDR5 onboard | |
| Carrier Board | SBC87903 |
| System I/O Outlet | 1 x HDMI 2.1 with 4K2K supported |
| 1 x 10/100/1000 Mbps Ethernet (via Jetson OrinTM NX) | |
| 1 x 10/100/1000 Mbps PoE (Intel® I210-IT; max. up to 15W) | |
| 1 x USB 3.2 Gen2, 1 x USB 2.0 | |
| 1 x DIO (pin header) | |
| 1 x Micro USB | |
| 1 x Recovery switch | |
| 1 x Reset button | |
| 1 x Power button | |
| 1 x 12 VDC power input connector | |
| Watchdog Timer | Built-in Orin™ NX |
| Storage | 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot |
| *Orin NX no longer has built-in eMMC and only supports SSD for the bootable device. | |
| *The AIE110-ONX requires an SSD for image installation. Kindly order the SSD if you need image installation service. | |
| Expansion Interface | 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) |
| 1 x SIM slot | |
| System Indicator | 1 x Green LED for system power-on |
| 1 x Yellow LED for M.2 storage | |
| Power Supply | 12 VDC screw type |
| Operating Temperature | -10°C to +60°C (14°F to +140°F) |
| Humidity | 10% - 95%, non-condensing |
| Vibration Endurance | 3 Grms with M.2 (5 to 500Hz, X, Y, Z directions) |
| Dimensions | 165 mm (6.49") (W) x 117 mm (4.60") (D) x 37.7 mm (1.48") (H) |
| Weight (net/gross) | 0.3 kg (0.66 lb)/ 0.9 kg (1.98 lb) |
| Certifications | CE |
| OS Support | Linux Ubuntu 20.04 or later |
