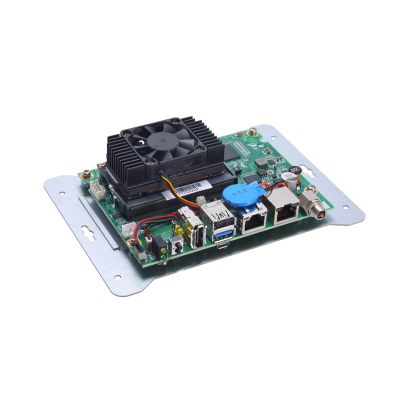

AIE110-XNX Edge AI Developer Kit NVIDIA® Jetson Xavier™
AIE110-XNX Edge AI Developer Kit NVIDIA® Jetson Xavier™ 1 x GbE LAN 1 x GbE PoE
Key Features:
- NVIDIA® Jetson Xavier™ NX, 384-core NVIDIA Volta™ GPU
- 1 USB 2.0, 1 USB 3.2 Gen2, 1 GbE
- Supports one 15W GbE PoE for camera
- 1 M.2 M-Key NVMe SSD slot and 1 Micro SD slot
- 1 PCI Express Mini Card for Wi-Fi/Bluetooth/LTE/GPS
- JetPack supported
- Supports 24/7 secure remote monitoring, control, and OTA
deployment empowered by Allxon
The AIE110 powered by a NVIDIA® Carmel™ 6-core ARM cpu in junction with a 384-core NVIDIA® Volta™ GPU to enable a system capable of AI development. Included with 1 GbE LAN & POE connections to enable the use of cameras and 24/7 secure monitoring and control through remote software. Includes 8GB of LPDDR4x memory onboard and has additional expansion slots for M.2 NVME SSD's alongside Mini PCI Express for use with LTE/Wi-Fi chips.
Key Features:
- NVIDIA® Jetson Xavier™ NX, 384-core NVIDIA Volta™ GPU
- 1 USB 2.0, 1 USB 3.2 Gen2, 1 GbE
- Supports one 15W GbE PoE for camera
- 1 M.2 M-Key NVMe SSD slot and 1 Micro SD slot
- 1 PCI Express Mini Card for Wi-Fi/Bluetooth/LTE/GPS
- JetPack supported
- Supports 24/7 secure remote monitoring, control, and OTA
deployment empowered by Allxon
|
AI Accelerator |
NVIDIA® Jetson Xavier™ NX |
|
CPU |
6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3 |
|
GPU |
384-core NVIDIA Volta™ GPU with 48 Tensor Cores |
|
System Memory |
8GB 128-bit LPDDR4x onboard |
|
Carrier Board |
SBC87903 |
|
System I/O Outlet |
1 x HDMI 2.0 with 4K2K supported 1 x 10/100/1000 Mbps Ethernet (via Jetson Xavier™ NX) 1 x 10/100/1000 Mbps PoE (Intel® i210-IT; max. up to 15W) 1 x USB 3.2 Gen2, 1 x USB 2.0 1 x DIO (pin header) 1 x Micro USB 1 x Recovery switch 1 x Reset button 1 x Power button 1 x 12 VDC power input connector |
|
Watchdog Timer |
Built-in Xavier NX |
|
Storage |
Onboard 16GB eMMC (via Jetson Xavier™ NX) 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot 1 x Micro SD slot *The bootable device supported by eMMC only |
|
Expansion Interface |
1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) 1 x SIM slot |
|
System Indicator |
1 x Green LED for system power-on 1 x Yellow LED for M.2 storage |
|
Power Supply |
12 VDC screw type |
|
Operating Temperature |
-10°C to +60°C (14°F to +140°F) |
|
Humidity |
10% - 95%, non-condensing |
|
Vibration Endurance |
3 Grms with M.2 (5 to 500Hz, X, Y, Z directions) |
|
Dimensions |
165 mm (6.49") (W) x 117 mm (4.60") (D) x 37.7 mm (1.48") (H) |
|
Weight (net/gross) |
0.3 kg (0.66 lb)/ 0.9 kg (1.98 lb) |
|
Certifications |
CE, FCC Class A |
|
OS Support |
Linux Ubuntu 18.04 or later |
