Brand: Axiomtek

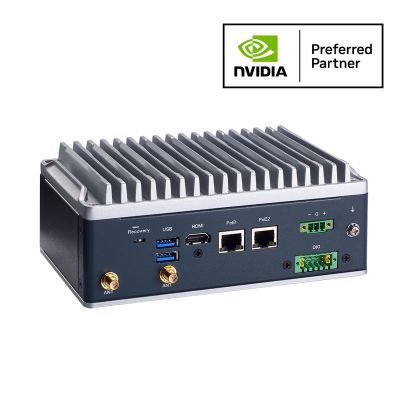

AIE510-ONX Fanless Edge AI System with NVIDIA Jetson Orin NX

In stock

SKU:

AIE510-ONX-16GB

NVIDIA Jetson Orin NX 16GB, 1 HDMI, 1 GbE PoE, 1 2.5 GbE PoE, 2 USB, 1 COM/CAN, and 8-CH DIO for AMR & Robotics

Key Features:

NVIDIA Jetson Orin NX (100 TOPS)
Seamless speed: 5G, Wi-Fi 6E, and 2.5 GbE combined
Easily manage: USB and PoE device power control
Supports dual PoE for camera & sensor connectivity
-25°C to +60°C operating temperature range
Supports 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon

Enquire Now

Name

Phone

Postcode

Message

AI Accelerator	NVIDIA® Jetson Orin™ NX 16GB (100 TOPS)
CPU	8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
GPU	1024-core NVIDIA Ampere GPU with 32 Tensor Cores
Chipset	N/A
System Memory	16GB 128-bit LPDDR5 onboard
COM	1 x DB9 for COM & CAN
USB	2 x USB 3.2 Gen2
Ethernet/PoE	1 x 10/100/1000 Mbps PoE (via Orin™ NX) 1 x 10/100/1000/2500 Mbps PoE (Intel® I226-IT)
Display	1 x HDMI 2.1 with 4K2K supported
Digital I/O	1 x 8-CH DIO
Audio	N/A
Storage	1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
Expansion	1 x M.2 Key E 2230 slot for Wi-Fi 6(E) 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) for Wi-Fi/LTE 1 x M.2 Key B 3042/3052 slot for 5G/LTE 1 x Nano SIM slot
Others	5 x SMA-type antenna connector 1 x Debug port 1 x Recovery switch (for image update) 1 x Remote switch 1 x AT/ATX switch 1 x Reset button 1 x Power button 1 x 24 VDC power input connector
Power Supply	24 VDC screw type
Watchdog Timer	Built-in Orin NX
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-25°C to +60°C (-13°F to +140°F)
Relative Humidity	10% - 95%, non-condensing
Vibration	3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)
Dimensions (W x D x H)	TBC
Weight (net/gross)	TBC
Certifications	CE, FCC Class A, UKCA
EOS Support	Linux Ubuntu 20.04 or later
Mounting	Wall mount kit DIN-rail kit VESA mount kit

AIE510-ONX-16GB (P/N-E27H510100)
Fanless edge AI system with NVIDIA® Jetson Orin™ NX 16GB, 1 HDMI, 1 GbE PoE, 1 2.5 GbE PoE, 2 USB, 1 COM/CAN, and isolated DIO (4-in/4-out)
AIE510-ONX-GMSL (P/N-E27H510105)
Fanless edge AI system with NVIDIA® Jetson Orin™ NX 16GB, 1 HDMI, 1 GbE PoE, 1 2.5 GbE PoE, 2 USB, 1 COM/CAN, isolated DIO (4-in/4-out) and 4-CH GMSL
