Brand: Sierra Wireless

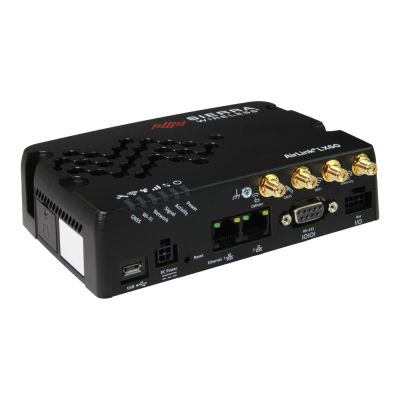

AirLink LX60 Dual Ethernet LTE Router

In stock

SKU:

LX60

Dual Ethernet 4G Router for primary and secondary/backup retail applications including ATMs, kiosks and POS terminals

See the WIFI + 4G model here

Key Features:

4G Cat-4
2x Ethernet (1 Gbps)
Single Serial
IP20 Rated
AirLink Complete

$685.00

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The AirLink® LX60 provides LTE connectivity and Wi-Fi for primary and secondary/backup retail applications, including ATMs, kiosks, and POS terminals. It also supports taxis, fleets, and IoT infrastructure applications in protected environments.

This product is listed in 5G/LTE Gateways, Digital Signage, Industrial Automation, Transport

Specifications

	North America	EMEA	Australia & New Zealand

CELLULAR
Peak D/L	Up to 150 Mbps, Cat-4 (WP7610)	Up to 150 Mbps, Cat-4 (WP7607)	Up to 150 Mbps, Cat-4 (WP7609)
Peak U/L	Up to 50 Mbps	Up to 50 Mbps	Up to 50 Mbp

4G LTE
Frequency Bands	B2, B4, B5, B12, B13, B17, B66	B1, B3, B7, B8, B20, B28	B1, B3, B5, B7, B8, B28

3G WCDMA/HSPA+
Frequency Bands	B2, B4, B5	B1, B8	B1, B5, B8

2G GSM/GPRS
Frequency Bands		900, 1800

Approvals
Regulatory	FCC, IC/ISED, PTCRB	GCF, CE	GCF, RCM
Carrier	AT&T, Verizon, T-Mobile

Part Numbers
Part Numbers	1104580, 1104572 (Wi-Fi + GNSS), 1104493 (Wi-Fi + GNSS + Telemetry)	1104046, 1104047 (Wi-Fi + GNSS)	1104048, 1104049 (Wi-Fi + GNSS)

HOST INTERFACES
	2 Gigabit RJ-45 Ethernet ports RS-232 serial port (DB-9) USB 2.0 Micro-B Connector 3 SMA antenna connectors (cellular, diversity, GNSS) 1 RP SMA antenna connector (Wi-Fi) Active GNSS antenna support Aux Port (RS-485/GPIO)

SECURITY
	Remote Authentication (LDAP, RADIUS, TACACS+) DMZ Inbound and Outbound Port filtering Inbound and Outbound Trusted IP MAC Address Filtering Secure Firmware Update

SATELLITE NAVIGATION GNSS (OPTIONAL)
	Dedicated 48 channel GNSS Receiver supporting GPS, GLONASS, BeiDou, Galileo Tracking Sensitivity: -162 dBm Reports (Update Rate 1Hz): NMEA, TAIP Reliable Store and Forward via serial, TCP or UDP Inertial Navigation Sensors (Accelerometer and Gyro)

WI-FI (OPTIONAL)
	Dual Band 2.4/5GHz Wi-Fi 802.11 b/g/n/ac (Wave2 Client Mode) Support for 10 clients, WPA2 Enterprise Output power 16dBm Access Point or Client Mode (Wi-Fi as WAN) Single SSID Support Captive Portal

LAN (ETHERNET/USB)
	DHCP Server IP Passthrough VLAN Host Interface Watchdog PPPoE

ENVIRONMENTAL
Operating Temperature	-20°C to +65°C / -4°F to +149°F
Storage Temperature	-40°C to +85°C / -40°F to +185°F
Humidity	90% RH @ 60°C
	Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity IP20 rated ingress protection

POWER
Input/Operating Voltage	7 to 36 VDC
Power Modes	Low voltage disconnect to prevent battery drain Built-in protection against voltage transients including 5 VDC engine cranking Ignition Sense with time delay shutdown

INPUT/OUTPUT
	Configurable I/O (5 pins total) 5 Digital Inputs: ON Voltage: 2.7 to 36 VDC 1 Digital Open Collector Output > sinking 300 mA 3 Analog Inputs: 0.5-5/0.5-10 VDC (range selectable) Configurable Pull-ups for dry contact input

SERIAL
	TCP/UDP PAD Mode Modbus (ASCII, RTU, Variable) PPP DNP3 Interoperability

NETWORK AND ROUTING
	Network Address Translation (NAT) Reliable Static Route Port Forwarding Dynamic DNS Policy Routing Verizon PNTM NEMO/DMNR IPV6 Gateway VRRP

VPN
	IPsec, GRE, and OpenVPN Client Up to 5 concurrent tunnels Split Tunnel Dead Peer Detection (DPD)

ROUTER MANAGEMENT INTERFACES
	Local web user interface AT Command Line Interface (Telnet/SSH/Serial) SNMP SMS Commands

APPLICATION FRAMEWORK
	ALEOS Application Framework (AAF) LUA Scripting Language

EVENTS ENGINE
	Custom event triggers and reports Configurable interface, no programming
Event Types	Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature and Voltage
Report Types	RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV)
Event Actions	Drive Relay Output

VEHICLE TELEMETRY
	OBD II/ J1939 interface over serial (optional) Diagnostic real time alerts/reports (via AMM)

INDUSTRY CERTIFICATIONS
Safety	IECE Certification Bodies Scheme (CB Scheme), UL 60950
Vehicle Usage	ISO7637-2, SAE J1455 (Shock, Vibration, Electrical)
Environmental	RoHS2, REACH, WEEE
Hazardous Environments	Class 1 Div 2 – Ambient temperatures of 0ºC to +60ºC

ACCESSORIES
In The Box	LX60, DC Power Cable and Quick Start Guide
Other Accessories (sold separately)	2000579 AC Adapter, 12VDC 6001214 DIN Rail Bracket 6001004 I/O Cable 6001110 Cellular Paddle Antenna 6001111 Wi-Fi 2.4/5Hz Paddle Antenna For Telemetry Variant (1104493): 6001204 OBD-II Y Cable 6001192 J1939 Y Cable
