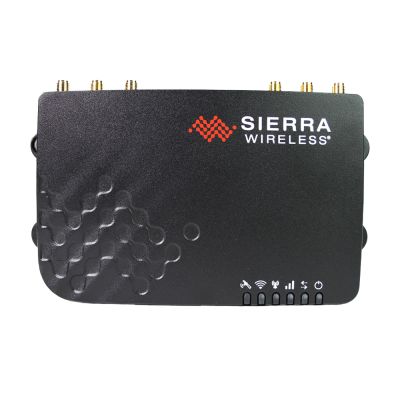

Airlink MP70 High Performance LTE Vehicle Router
High-performance, LTE-Advanced vehicle router with GPS+CAN for mission-critical applications.
- LTE-A PRO version 600/150Mbps
- Dual SIM automatic network failover
- Opt. Dual band 2.4/5GHz 802.11ac Wifi AP/Client/WAN mode
- GNSS - GPS, GLONASS, Galileo, Beidou
- 4 x GbE with WAN failover
- OBD II/ J1939/ J1708 interface over serial
- -30 ~ +70°C operation
- MIL 810-G, IP64 rated
- 7~36VDC input
- Remote, secure network management - Cloud – ALMS, Hosted – AMM
Offering high power, long-range Gigabit Wi-Fi and Gigabit Ethernet, and up to 600 Mbps downlink and 150 Mbps speeds over LTE-Advanced Pro, the AirLink MP70 unites the fleet with the enterprise network and enables multiple field applications to work simultaneously, further and faster from the vehicle than ever before.
- Offers high-performance vehicle area network (VAN)
- Provides connected vehicle awareness
- Purpose-built for vehicles
- Provides secure intelligent communications
- Network management in the cloud or in the enterprise data centre
- Includes the first year of network management and support with AirLink Complete
MP70 Benefits
High-Performance Vehicle Area Network (VAN)
With dual-band Gigabit Wi-Fi and Gigabit Ethernet, the AirLink MP70 enables a complete portfolio of broadband mission-critical applications to work simultaneously, further and faster from the vehicle than ever before.
Built for first responders and field personnel, the MP70 offers up to 600 Mbps downlink speeds and upload speeds of 150 Mbps over LTE-Advanced with fallback to 3G networks, and up to 1.3 Gbps over 802.11ac Wi-Fi (with 3x3 MIMO) and Gigabit 4-port Ethernet. The AirLink MP70 can host up to 128 simultaneous Wi-Fi clients, and concurrently connect multiple mission-critical applications in and around the vehicle including laptops, DVRs and tablets, in addition to providing live video streaming, and rapid and secure access to remote databases, such as record management systems.
Connected Vehicle Awareness
The AirLink MP70 increases efficiency, streamlines operations and reduces costs by supporting advanced remote visibility and instant insight into the vehicle area network (VAN), field applications and assets, and the workforce.
Utilizing next-generation GNSS location technology that supports 48 satellites from 4 different satellite constellations (GPS, GLONASS, Galileo, Beidou) with inertial navigation (dead reckoning). The MP70 provides fast, reliable and precise vehicle location, even in the most challenging environments, including urban canyons and tunnels or covered structures.
Purpose Built for Vehicles
The MP70 provides superior reliability and continuous operation in harsh environments. It will survive extreme transient surges, and maintain continuous power during 5V brownouts and spikes from -600 VDC to 200 VDC.
Secure, Intelligent Communications
Offering up to 5 concurrent VPN sessions, the AirLink MP70 enables secure communications to multiple back-end systems and provides remote authentication management to allow the implementation of enterprise-grade systems to control access to devices in the field.
|
CELLULAR
|
|
|---|---|
|
Peak D/L
|
Up to 600 Mbps, Cat 12
Up to 150 Mbps
|
|
Peak U/L
|
|
|
4G LTE
|
|
|---|---|
|
Frequency Bands
|
B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66
Band 26, 28
|
|
Public Safety Bands
|
|
|
3G WCDMA/HSPA+
|
|
|---|---|
|
Frequency Bands
|
B1, B2, B4, B5, B6, B8, B9, B19
|
|
Approvals
|
|
|---|---|
|
Regulatory
|
CE, GCF, RED, RCM
|
|
Carrier*
|
Telstra
|
|
Part Numbers
|
|
|---|---|
|
Part Numbers
|
1104072, 1104074 (Wi-Fi)
|
|
HOST INTERFACES
|
|---|
| 4 Gigabit RJ-45 Ethernet ports
RS-232 serial port (DB-9)
USB 2.0 Micro-B Connector 3 SMA antenna connectors (cellular, diversity, GNSS) Active GNSS antenna support |
|
SECURITY
|
|---|
| Remote Authentication (LDAP, RADIUS, TACACS+) DMZ
Inbound and Outbound Port filtering
Inbound and Outbound Trusted IP MAC Address Filtering PCI compatible Secure Firmware Update FIPS 140-2 |
|
SATELLITE NAVIGATION (GNSS)
|
|---|
| Dedicated GNSS Receiver supporting GPS, GLONASS, BeiDou, Galileo
Tracking Sensitivity: -162 dBm
Reports: NMEA 0183 V3.0, TAIP, RAP, XORA Multiple Redundant Servers Reliable Store and Forward Inertial Navigation Sensors (Accelerometer and Gyro) |
|
WI-FI (OPTIONAL)
|
|---|
| Dual Band 2.4/5GHz Wi-Fi
802.11 b/g/n/ac with support for 128 clients
WPA2 Enterprise High output power Simultaneous AP/Client Mode WiFi as WAN Mode (Multiple SSIDs, Captive Portal) |
|
LAN (ETHERNET/USB)
|
|---|
| DHCP Server
IP Passthrough
VLAN Host Interface Watchdog PPPoE |
|
ENVIRONMENTAL
|
|
|---|---|
|
Operating Temperature
|
-30°C to +70°C / -22°F to +158°F
|
|
Storage Temperature
|
-40°C to +85°C / -40°F to +185°F
|
|
Humidity
|
95% RH @ 60°C
|
|
Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity
IP64-rated ingress protection |
|
|
POWER
|
|
|---|---|
|
Input/Operating Voltage
|
7 to 36 VDC
|
|
Power Modes
|
Low voltage disconnect to prevent battery drain
Built-in protection against voltage transients including 5 VDC engine cranking and +200 VDC load dump Ignition Sense with time delay shutdown |
|
INPUT/OUTPUT
|
|---|
|
Configurable I/O (5 pins total)
|
|
SERIAL
|
|---|
| TCP/UDP PAD Mode
Modbus (ASCII, RTU, Variable)
PPP DNP3 Interoperability |
|
NETWORK AND ROUTING
|
|---|
| Network Address Translation (NAT) Reliable Static Route
Port Forwarding Dynamic DNS
Policy Routing Verizon PNTM NEMO/DMNR IPV6 Gateway VRRP |
|
VPN
|
|---|
| IPsec, GRE, and OpenVPN Client
Up to 5 concurrent tunnels
Split Tunnel Dead Peer Detection (DPD) |
|
ROUTER MANAGEMENT INTERFACES
|
|---|
| Local web user interface
AT Command Line Interface (Telnet/SSH/Serial)
SNMP SMS Commands |
|
APPLICATION FRAMEWORK
|
|---|
| ALEOS Application Framework (AAF)
LUA Scripting Language
|
|
EVENTS ENGINE
|
|---|
| Custom event triggers and reports
Configurable interface, no programming
Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature and Voltage Report Types: RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV) Event Actions: Drive Relay Output |
|
INDUSTRY CERTIFICATIONS
|
|
|---|---|
|
Safety
|
IECEE Certification Bodies Scheme (CB Scheme), UL60950
|
|
Vehicle Usage
|
E-Mark (UN ECE Regulation 10.04), ISO7637-2, SAE J1455 (Shock, Vibration, Electrical)
|
|
Environments
|
RoHS2, REACH, WEEE
|
|
Rail Usage
|
EN50155 (Rolling Stock)
|
|
SUPPORT AND WARRANTY
|
|---|
| 1-year standard warranty with up to 5 years extended warranty with current AirLink Complete subscription. Unrestricted critical firmware updates. |
|
ACCESSORIES
|
|
|---|---|
|
In The Box
|
MP70, DC Power Cable and Quick Start Guide
|
|
Other Accessories (Sold Separately)
|
|
|
DIMENSIONS
|
|
|---|---|
|
190mm x 45mm x 105mm (112mm including connectors)
7.5in x 1.75 in x 4.1 in (4.4 in including connectors) |
|
|
Weight
|
0.76kg / 1.68 lb
|
*For carrier specific band support please refer to the hardware user guide.
SKU - 1104072
MP70, 4G LTE-A Pro Router, Global, includes 1-year AirLink Complete
SKU - 1104074
MP70, 4G LTE-A Pro Router, Global, Wi-Fi, includes 1-year AirLink Complete
