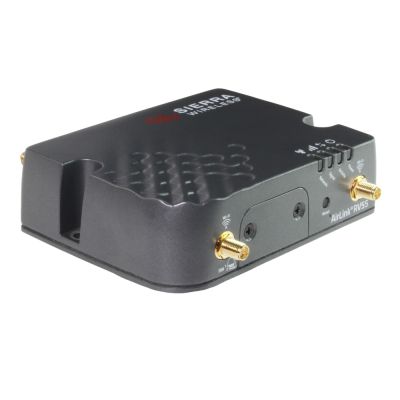

AirLink RV55 Rugged LTE-A Pro Router
The industry's most rugged, compact, LTE-A Pro router, designed for connecting critical remote assets & infrastructure, and vehicles.
Key Features:
- LTE-A PRO up to 600/150Mps
- Dual SIM automatic network failover
- High performance GNSS
- 1 x GbE, 2 x RS232 (DB9), 1 x Digital inputs
- Optional Dual-Band – Dual Chipset Wi-Fi
- -30 ~ +70°C operation
- MIL 810-G, IP64 rated
- 7~36VDC input
- Remote, secure network management: Cloud – ALMS, Hosted – AMM
Simple to install, and easy to manage, the RV55 cellular router is designed for connecting critical remote assets & infrastructure, and vehicles. The RV55 is especially well suited for SCADA, distribution management systems and service vehicle fleets.
The RV55 is also available with Wi-Fi to provide secure, vehicle area networking (VAN) for the mobile workforce and service fleets. The RV55 is designed to meet the harsh environmental and performance requirements of industrial and mobile installations, delivering superior reliability and uninterrupted operation in
outdoor or vehicle environments.
Includes the first year of network management and support with AirLink Complete LTE-A Pro (CAT12) supporting 600Mbps/150Mbps (DL/UL) performance LTE-A Pro and LTE-M/NB-IoT variants for global deployments, and extended coverage Ethernet and Dual-Serial to connect legacy equipment Dual-Band Wi-Fi (optional) for Access Point and/or Wi-Fi WAN GNSS for precision location tracking Remote, secure network management in the cloud or in the enterprise.
Resilient Connectivity
Designed to withstand harsh industrial and vehicle environments, the RV55 is rugged from the ground up: MIL-STD, vehicle grade power supply, and Class I Div2 certified – to keep your remote assets and vehicles connected when you need them most.
Secure Remote Infrastructure
RV55 lets you connect cameras, and sensors to protect and keep your remote assets or workforce secure. Monitor and manage all of your deployed devices through a single, unified management interface with AirLink Network Management solutions.
Reduce Cost and Complexity
RV55 provides out-of-box connectivity to existing legacy or new assets. Built-in dual-serial port, ethernet, and I/O reduce the cost and complexity to interface with legacy equipment. Low-power, rugged and compact form factor makes it easy to integrate into existing installations where space and power may be limited.
Keep Your Mobile Workforce Connected Dual Band Wi-Fi (optional), Ethernet, and Dual SIM capability provide mobile workforce access to critical enterprise applications and connected them wherever they may operate. Built-in GNSS enables position tracking and location-based services.
|
CELLULAR
|
|
|---|---|
|
Peak D/L
|
RV55 LTE-A PRO – Up to 600 Mbps, Cat 12 (EM7511 | EM7565)
RV55 LTE-A PRO – Up to 150 Mbps |
|
Peak U/L
|
|
|
4G LTE
|
|
|---|---|
|
Frequency Bands
|
RV55 LTE-A PRO – 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 1800(B9), 700(B12), 700(B13), 850(B18), 850(B19), 800(B20), 850(B26), 700(B28), 700(B29), 2300(B30), 1500(B32), TDD B41, TDD B42, TDD B43, TDD B46, CBRS B48, 1700(B66)
|
|
3G HSPA/HSPA+
|
|
|---|---|
|
Frequency Bands*
|
RV55 LTE-A PRO – 2100(B1), 1900(B2), AWS(B4), 850(B5), 800(B6), 900(B8), 1700(B9), 850(B19)
|
|
2G EDGE/GSM/GPRS
|
|
|---|---|
|
Frequency Bands
|
RV55 LTE-A PRO – 850, 900, 1800, 1900
|
|
APPROVALS
|
|
|---|---|
|
Regulatory**
|
RV55 LTE-A PRO – FCC, IC, PTCRB, GCF, CE, RCM, IFT, Anatel
RV55 LTE-A PRO – Verizon, AT&T, Telstra (Planned)
|
|
Carrier**
|
|
|
PART NUMBER
|
|
|---|---|
|
Part Number
|
RV55 LTE-A PRO – 1104332, 1104331 (Wi-Fi), 1104331 (Wi-Fi)
|
*For carrier-specific band support please refer to the hardware user guide.
**All approvals are either granted or in progress. Call for the latest approval status.
|
HOST INTERFACES
|
|
|---|---|
|
10/100/1000 Ethernet (RJ45)
RS-232 serial port (DB-9) USB 2.0 Micro-B Connector 3 SMA antenna (cellular, diversity, GNSS) 2 RP-SMA antenna (1×1 Wi-Fi, Optional) Active GPS antenna support |
|
|
SECURITY
|
|
|---|---|
|
Remote Authentication (LDAP, RADIUS, TACACS+, DMZ)
Inbound and Outbound Port filtering Inbound and Outbound Trusted IP MAC Address Filtering PCI compatible Secure Firmware Update |
|
|
WI-FI (OPTIONAL)
|
|
|---|---|
|
Dual Band 2.4/5GHz Wi-Fi
Dual Radio, 802.11 b/g/n/ac (Wave2 Client Mode) Support for 10 clients, WPA2 Enterprise per radio Output power 16dBm Configurable as Dual Band Access Point (AP) or AP+Client Mode Single SSID Support per radio Captive Portal |
|
|
SATELLITE NAVIGATION (GNSS)
|
|
|---|---|
|
LTE-A Pro Variant: 30 Channel GPS and GLONASS Receiver (Tracking Sensitivity: -160dBm)
LTE Variant: 48 Channel Dedicated GNSS Receiver (Tracking Sensitivity: -162 dBm) Accuracy: <2 m (50%), <5 m (90%), <0.2 m/s Acquisition Time: 1s Hot Start Reports: NMEA 0183 V3.0, TAIP, RAP, XORA Multiple Redundant Servers Reliable Store and Forward |
|
|
ENVIRONMENTAL
|
|
|---|---|
|
Operating Temperature
|
-40°C to +70°C / -40°F to +158°F
|
|
Operating Temperature (Wi-Fi variant)
|
-30°C to +70°C / -22°F to +158°F
|
|
Storage Temperature
|
-40°C to +85°C / -40°F to +185°F
|
|
Humidity
|
95% RH @ 60°C
|
|
Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity
IP64-rated ingress protection |
|
|
POWER
|
|
|---|---|
|
Input/Operating Voltage
|
Input Voltage: 7 to 36 VDC
Configurable I/O pin on the power connector
|
|
Power Modes
|
Idle Power: 900mW (75 mA @ 12VDC)
Standby Mode Power: 53 mW (4.4 mA @ 12 VDC) triggered on low voltage, I/O or periodic timer Low voltage disconnect to prevent battery drain Built-in protection against voltage transients including 5 VDC engine cranking and +200 VDC load dump Ignition Sense with time delay shutdown Configurable features and ports to optimize power consumption |
|
NETWORK AND ROUTING
|
|
|---|---|
|
Network Address Translation (NAT)
Reliable Static Route Port Forwarding Dynamic DNS Policy Routing Verizon PNTM NEMO/DMNR IPV6 Gateway VRRP |
|
|
VPN**
|
|
|---|---|
|
IPsec, GRE, and OpenVPN Client
Up to 5 concurrent tunnels Split Tunnel Dead Peer Detection (DPD) FIPS 140-2 compatible |
|
|
INDUSTRY CERTIFICATION
|
|
|---|---|
|
Safety
|
IECEE Certification Bodies Scheme (CB Scheme), UL 60950****
|
|
Vehicle Usage
|
E-Mark (UN ECE Regulation 10.04)
|
|
Environmental
|
RoHS, REACH, WEEE
Hazardous Environments: Class 1 Div 2– Ambient temperatures of -30°C to +60°C |
|
Rail Usage
|
EN50155, ISO7637-2, SAE J1455 (Shock & Vibration)
|
|
SUPPORT AND WARRANTY
|
|
|---|---|
|
1 year standard warranty with up to 5 years extended warranty with current AirLink Complete subscription.
Unrestricted critical firmware updates. |
|
|
LAN (ETHERNET/USB)
|
|
|---|---|
|
DHCP Server Host Interface Watchdog
IP Passthrough PPPoE VLAN |
|
|
SERIAL
|
|
|---|---|
|
TCP/U DP PAD Mode
Modbus (ASCII, RTU, Variable) PPP DNP3 Interoperability Dual Serial option (with an accessory) |
|
|
APPLICATION FRAMEWORK
|
|
|---|---|
|
ALEOS Application Framework (AAF)
LUA Scripting Language |
|
|
NETWORK MANAGEMENT
|
|
|---|---|
|
Secure mobile network & asset management application available in the cloud or licensed platform in the enterprise data centre
Fleet-wide firmware upgrade delivery Router configuration and template management Router staging over the air and local Ethernet connection Over-the-air software and radio module firmware updates Device Configuration Templates Configurable monitoring and alerting Remote provisioning and airtime activation (where applicable) |
|
|
ROUTER MANAGEMENT
|
|
|---|---|
|
ALMS
Local web user interface AT Command Line Interface (Telnet/SSH/Serial) SMS Commands SNMP |
|
|
EVENTS ENGINE
|
|
|---|---|
|
Custom event triggers and reports
Configurable interface, no programming |
|
|
Event Types
|
Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature and Voltage
|
|
Report Types
|
RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV)
|
|
Event Actions
|
Drive Relay Output
|
|
ACCESSORIES
|
|
|---|---|
|
In The Box
|
RV55, DC Power Cable, and Quick Start Guide
|
|
Other Accessories (Sold Separately)
|
|
|
DIMENSIONS
|
|
|---|---|
|
AirLink RV55 – Main Body
|
119 mm x 33 mm x 85 mm (102 mm including wi-fi connectors)
4.69 in x 1.34 in x 3.35 in (3.70 in including connectors) Weight: 320 g |
*For carrier-specific band support please refer to the hardware user guide
**All approvals are either granted or in progress. Call for the latest approval status
*** IPsec, GRE and OpenVPN Client are not available in the member states of the EAEU
**** Ambient temperatures of -30C to +60C
SKU - 1104332
RV55, 4G LTE-A Pro Router, Global, includes 1-year AirLink Complete
SKU - 1104331
RV55, 4G LTE-A Pro Router, Global, Wi-Fi, includes 1-year AirLink Complete
