Brand: Sierra Wireless

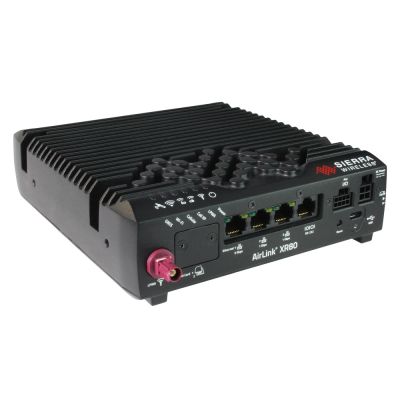

AirLink® XR80 4G/5G High-Performance Multi-Network Router
In stock
SKU:
XR80-5G-1YR_AC/1104791, XR80-5G-WIFI-1YR_AC/1104787
5G High-Performance Multi-Network Router for Public Safety, Fleets and Mission-Critical Fixed Applications
Key Features:
- Expandable 4G/5G
- 5×4 MU MIMO Wi-Fi 6
- 2x 1 Gigabit and
- 1x 5 Gigabit Ethernet
- Single/Dual Serial
- GNSS with Dead Reckoning
- IP64 Rated
- AirLinkOS with AirLink Complete
Enquire Now
Enquire Now
The supercharged AirLink XR80 is purpose-built for fixed and mobile applications with single/dual 5G cellular radios and 5x4 MIMO Wi-Fi 6. It supports complete device-to-cloud security and reduces your total cost of ownership with ALMS Out-of-Band management via built-in LPWA network delivering zero-touch configuration, reset to the factory over the air and remote support regardless of the primary WAN connections. Utilising a cartridge-based design enables long-term expandability and upgradability.
For detailed user configuration details pls sign up for "The Source" and access the Airlink OS page: https://source.sierrawireless.com/airvantage/almsc/
Key Features:
- Expandable 4G/5G
- 5×4 MU MIMO Wi-Fi 6
- 2x 1 Gigabit and
- 1x 5 Gigabit Ethernet
- Single/Dual Serial
- GNSS with Dead Reckoning
- IP64 Rated
- AirLinkOS with AirLink Complete
|
Region |
LTE NAM
|
LTE Global
|
5G NAM
|
5G Global
|
|---|
|
CELLULAR
|
||||
|---|---|---|---|---|
|
Variant
|
North America
|
EMEA & APAC
|
North America
|
EMEA & APAC
|
|
Technology
|
LTE
|
LTE
|
5G
|
5G
|
|
Peak Downlink (Theoretical)
|
2 Gbps
|
2 Gbps
|
4.14 Gbps
|
4.14 Gbps
|
|
Peak Uplink (Theoretical)
|
210 Mbps
|
210 Mbps
|
660 Mbps
|
660 Mbps
|
|
LTE Category
|
Cat-20
|
Cat-20
|
5G
|
5G
|
|
Region
|
NAM
|
EMEA, APAC
|
NAM
|
EMEA, APAC
|
|
Radio
|
EM7690
|
EM7690
|
EM9190
|
EM9190
|
|
MIMO
|
4×4
|
4×4
|
4×4
|
4×4
|
|
RF Connectors
|
FAKRA
|
FAKRA
|
FAKRA
|
FAKRA
|
|
SIM
|
Dual SIM (Mini-2FF)
|
Dual SIM (Mini-2FF)
|
Dual SIM (Mini-2FF)
|
Dual SIM (Mini-2FF)
|
|
FREQUENCY BANDS
|
||||
|---|---|---|---|---|
|
5G Bands
|
–
|
–
|
n1, n2, n3, n5, n28, n41, n66, n71, n77, n78, n79 (NSA & SA Support)
Future Variant adds support for: n7, n8, n12, n20, n25, n38, n40, n48 (NSA & SA Support) |
n1, n2, n3, n5, n28, n41, n66, n71, n77, n78, n79 (NSA & SA Support)
Future Variant adds support for: n7, n8, n12, n20, n25, n38, n40, n48 (NSA & SA Support) |
|
4G LTE Bands
|
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
|
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
|
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71
Future Variant adds support for: B43 |
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71
Future Variant adds support for: B43 |
|
3G HSPA+ Bands
|
B1, B2, B4, B5, B6, B8, B9, B19
|
B1, B2, B4, B5, B6, B8, B9, B19
|
B1, B2, B4, B5, B6, B8, B9, B19
|
B1, B2, B4, B5, B6, B8, B9, B19
|
|
2G GPRS Bands
|
–
|
–
|
–
|
–
|
|
LPWA
|
B1, B2, B3, B4, B5, B8, B9, B10, B12, B13, B17, B18, B19, B20, B25, B26, B27, B28, B66
|
B1, B2, B3, B4, B5, B8, B9, B10, B12, B13, B17, B18, B19, B20, B25, B26, B27, B28, B66
|
B1, B2, B3, B4, B5, B8, B9, B10, B12, B13, B17, B18, B19, B20, B25, B26, B27, B28, B66
|
B1, B2, B3, B4, B5, B8, B9, B10, B12, B13, B17, B18, B19, B20, B25, B26, B27, B28, B66
|
|
WIRELESS CERTIFICATION
|
||||
|---|---|---|---|---|
|
Regulatory
|
FCC, IC/ISED, PTCRB
|
GCF, CE, RED, RCM, ESN
|
FCC, IC/ISED, PTCRB
|
GCF, CE, RED, RCM, ESN
|
|
Carrier
|
AT&T, FirstNet® 4G, T-Mobile, Verizon, Rogers, Telus, Bell, CBRS, C-Band
|
–
|
AT&T, FirstNet® 4G, T-Mobile, Verizon, Rogers, Telus, Bell, CBRS, C-Band
|
Telstra
|
|
Public Safety
|
FirstNet® 4G
|
ESN
|
FirstNet® 4G
|
ESN
|
|
Part Numbers
|
1104881 Base
1104879 Wi-Fi 1104757 XP 5G Cartridge (Optional) |
1104880 Base
1104878 Wi-Fi 1104757 XP 5G Cartridge (Optional) |
1104793 Base
1104789 Wi-Fi 1104757 XP 5G Cartridge (Optional) |
1104791 Base
1104787 Wi-Fi 1104757 XP 5G Cartridge (Optional) |
|
WI-FI (OPTIONAL)
|
|
|---|---|
|
Wi-Fi Standard
|
Wi-Fi 6 802.11ax
|
|
Access Point
|
Dual (2.4 & 5GHz)
|
|
Client (Depot/WAN)
|
Yes
|
|
Client & AP
|
Yes
|
|
Peak Throughput (Theoretical)
|
2400 Mbps
|
|
MIMO
|
5×4
|
|
Security
|
WPA2/3 Enterprise
|
|
Clients
|
Up to 256
|
|
SSID
|
6
|
|
Output Power
|
23.3 dBm per chain
|
|
Frequency
|
2.4/5 GHz
|
|
RF Connectors
|
FAKRA (Beige)
|
|
ENVIRONMENTAL
|
|
|---|---|
|
Operating Temperature
|
-30°C to +70°C / -22°F to +158°F
|
|
Storage Temperature
|
-40°C to +85°C / -40°F to +185°F
|
|
Humidity
|
95% RH @ 60°C
|
|
Military Specification
|
MIL-STD-810G (Shock, Vibration, Thermal Shock, Humidity)
|
|
IP Rating
|
IP64
|
|
INDUSTRY CERTIFICATIONS
|
|
|---|---|
|
Safety
|
IECEE Certification Bodies Scheme (CB Scheme), UL 60950
|
|
Vehicle Usage
|
E-Mark (72/245/EEC, 2009/19/EC), ISO7637- 2, SAE J1455 (Shock & Vibration, Electrical)
|
|
Environmental Directives
|
RoHS2, REACH, WEEE, Prop 65
|
|
Hazardous Environments
|
Class 1 Div 2 – Ambient temperatures of -30°C to +60°C
|
|
Rail Usage
|
EN50155/EN45545 (Rolling Stock)
|
|
POWER
|
|
|---|---|
|
Input Voltage
|
7 to 36 VDC
|
|
Power Consumption
|
Peak: 54W (4.5A @12V)
Standby: 55mW (4.5mA@12V) |
|
Power Modes
|
Built-in protection against voltage transients including 5 VDC engine cranking and +200 VDC load dump
Ignition Sense with time delay shutdown |
|
SECURITY
|
|
|---|---|
|
AAA
|
802.1x /Radius authentication with Wi-Fi
|
|
Firewall
|
Stateful firewall with port forwarding, DMZ
|
|
WLAN Encryption
|
WPA2/WPA3 Personal/Enterprise
|
|
Firmware Update
|
Secure Firmware Update
|
|
NETWORK AND ROUTING
|
|
|---|---|
|
Sierra Cognitive Wireless
IPv4 and IPv6 Routing Network Address Translation (NAT) Port Forwarding DHCP Server IP Passthrough LAN Segmentation IPv4 Passthrough and IPv6 Prefix Extension WAN/LAN Connection Policy Management Policy-Based Routing Configurable MTU size Static Routing WAN Ethernet |
|
|
QoS
|
Application/Traffic Priority Queuing
|
|
WAN Monitors
|
Connection Failure Recovery
|
|
LAN (ETHERNET/USB)
|
|
|---|---|
|
USB to Ethernet
|
|
|
VPN
|
|
|---|---|
|
Integrated with ACM VPN Server
IPsec protocol with IKEv1/IKEv2 FIPS 140-2 Level 1 compliant |
|
|
Encryption
|
AES128/AES192/AES256
|
|
Hashing
|
SHA256/SHA384/SHA512
|
|
Key Exchange
|
DHGroup14/15/16/17/18/19/20/21
|
|
LAN to LAN and Host to LAN
Up to 10 concurrent tunnels per link MOBIKE protocol IP compression Full/Split Tunnel Dead Peer Detection (DPD) |
|
|
ROUTER MANAGEMENT INTERFACES
|
|
|---|---|
|
ALMS
Local web user interface REST API (Beta) |
|
SKU - 1104791
XR80, 5G Router, Global, includes 1-year AirLink Complete
SKU - 1104787
XR80, 5G Router, Global, Wi-Fi, includes 1-year AirLink Complete
