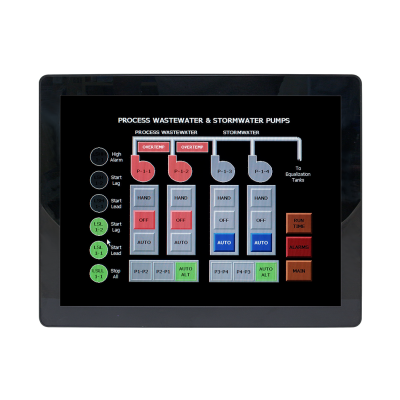

ARC-1538-C1 15" 11th Gen Fanless Rugged Panel PC
15" 11th Intel Core Processor Fanless Rugged Touch Panel PC
Key Features:
- 11th Generation Intel® Core™ i3/i5/i7 Processors (Non-embedded CPU)
- 2 x LAN, 3 x USB3.2 Gen2, 1x USB3.2 Gen1
- 1 x RS232/422/ 485(default), 2 x RS232(default)
- Wi-Fi & BT & 5G (optional)
- TPM 2.0
- 10 points multiple PCAP touch (option for 5-wire Resistive)
- 2 x 260-pin DDR4 3200 MHz SO-DIMM socket, supports up to 64GB max
- 3 x RS232 or GPIO or USB2.0 (optional)
- Front panel IP65
Compact and Durable Design
The ARC-1538-C1 is built for industrial environments, featuring a robust and compact design that ensures reliable performance even in harsh conditions. Its slim profile makes it ideal for space-constrained installations.
Efficient Performance
Powered by Intel® Celeron® or Pentium® processors, this panel PC delivers efficient and smooth performance for a variety of industrial applications. It is suitable for tasks that require high stability and low power consumption.
Versatile Connectivity
With multiple I/O ports, including USB, LAN, and COM, the ARC-1538-C1 supports easy integration with other equipment and devices. It ensures seamless communication across different systems.
Flexible Mounting Options
The panel PC offers multiple mounting options, including VESA, panel, and wall mounts, providing flexibility for various setups and installations.
Ideal for use in industrial automation, control systems, and HMI applications, the ARC-1538-C1 provides a reliable and adaptable solution for modern industrial needs.
System Information
-
Processor
11th Generation Intel® Core™ i3/i5/i7 Processors(Non-embedded CPU)
Intel® Core™ i7-1165G7 Processor, 12M Cache, up to 2.80 GHz
Intel® Core™ i5-1135G7 Processor, 8M Cache, up to 2.40 GHz
Intel® Core™ i3-1115G4 Processor, 6M Cache, up to 3.00 GHz -
System Memory
2 x 260-pin DDR4 3200 MHz SO-DIMM socket, supports up to 64GB max
-
I/O Chipset
NuvoTon_NCT6126D
-
Watchdog Timer
H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step
-
H/W Status Monitor
Monitoring CPU & system temperature and voltage
-
TPM
Onboard NuvoTon NPCT754AADYX support TPM 2.0
-
SBC
EMX-TGLC-B1
-
CPU Cooler (Type)
Fanless heatsink
-
Other
AUX-089 (SIM card expansion card)
Expansion
-
Expansion
1 x M.2 Key B+M 3042/3052/2242/2260/2280 support 1xPCIEx1/SATA/USB3.0/USB2.0 with 1 x SIM card slot, support WWAN+GNSS
1 x M.2 Key E 2230 support WiFi module and CNVi (1 x PCI-e x1 & USB 2.0 signal)
Storage
-
Storage
M.2 type B+M 3042/3052/2242/2260/2280 SSD (SATA)
-
Solid State Drive
1 x 2.5” Drive Bay design
Audio
-
Audio Codec
Realtek ALC897 co-lay ALC888S (Default: ALC897)
-
Speaker Output
2 x 5W
Ethernet
-
LAN Chipset
1 x Intel® I219LM Gigabit Ethernet PHY (LAN1)
1 x Intel® I226LM 2.5 Gigabit Ethernet (LAN2) -
Ethernet Interface
Intel® I219LM : 10/100/1000 Base-Tx GbE compatible
Intel® I226LM: 10/100/1000/2.5G Base-Tx GbE compatible
Power Requirement
-
DC Input
+12V ~ +24V
-
DC Input Connector
Lockable DC Jack (default)
Optional for phoenix connector -
Adapter
Input: 100~240Vac / 50~60Hz
Output: 120W adapter (24V @ 5A) -
ACPI
Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant
Software Support
-
OS
Win10 / Win11 / Linux
Certification
-
Certification Information
CE/ FCC Class B/ UKCA / LVD / VCCI
Panel
-
LCD Size
15", 4:3
-
Display Type
XGA
-
Resolution
1024 x 768
-
Pixel pitch
0.297mm(H) x 0.297mm(V)
-
Luminance
350 cd/m2
-
Contrast ratio
1000
-
Viewing angle
89 (U), 89 (D), 89 (L), 89 (R)
-
Response time
30 ms
-
Backlight
TFT-LCD
-
Touch Type
Projective capacitive multi-touch up to 10 points (option for 5-Wire resistive)
-
Touch Light Transmission
>=85%
-
Touch Controller
ILLITEK ICI2511MP
External I/O
-
USB Port
3 x USB3.2 Gen2, 1 x USB3.2 Gen1
3 x RS232 or GPIO or USB2.0 (optional) -
LAN Port
2 x RJ-45
-
COM Port
1 x RS232/422/485(default)
2 x RS232 (default)
3 x RS232 or GPIO or USB2.0 (optional) -
Display Port
2 x DP++: 1920 x 1080@60 Hz
-
Antenna
2 x Antenna Mounting with Dust Cover
4 x Antenna Mounting with Dust Cover for 5G
System Control
-
LED Indicator
HDD LED, power LED
Data Communication
-
WLAN
IEEE802.11 ac/a/b/g/n 2.4 GHz, 5 GHz (optional)
-
Bluetooth
BT5.1 (optional)
Mechanical & Environmental
-
Operating Temp.
0°C ~ 50°C (32°F ~ 122°F)
-
Storage Temp.
-20°C ~ 60°C (-4°F ~ 140°F)
-
Operating Humidity
40°C @ 95% Relative humidity, non-condensing
-
Dimension (W x L x H)
350.51 x 274.51 x 65 mm
-
Weight
5.8 Kg
-
Vibration Test
With SSD/M.2 SSD : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis
-
Shock Test
Operating with SSD/M.2 SATA: IEC 60068-2-27 testing procedures, 10G for operation mode
-
Drop Test
ISTA 2A, IEC-60068-2-32 Test:Ed
-
IP Rating
Front panel IP65
-
Mounting Kit
Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm
Panel mount with mounting kits -
Power Mode
AT/ATX (ATX is the default)
-
System Fan
Fanless
-
Construction - Front
Die casting with cover lens
-
Construction - Rear
Black die casting
Component
-
Adapter
Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 120W adapter (24V @ 5A adapter)
Ordering Information
-
Ordering Information
PCAP models:
ARC-1538-3G4-C2R
ARC-1538 w/i3-1115G4/PCAP/3COM/4USB/2LAN/2DP/Barebone, w/o Memory/storage/Kit
ARC-1538-5G7-C2R
ARC-1538 w/i5-1135G7/PCAP/3COM/4USB/2LAN/2DP/Barebone, w/o Memory/storage/Kit
ARC-1538-7G7-C2R
ARC-1538 w/i7-1165G7/PCAP/3COM/4USB/2LAN/2DP/Barebone, w/o Memory/storage/Kit
5-Wire Resistive models:
ARC-1538-3G4-C3R
ARC-1538 w/i3-1115G4/Resistive/3COM/4USB/2LAN/2DP/Barebone, w/o Memory/storage/Kit
ARC-1538-5G7-C3R
ARC-1538 w/i5-1135G7/Resistive/3COM/4USB/2LAN/2DP/Barebone, w/o Memory/storage/Kit
ARC-1538-7G7-C3R
ARC-1538 w/i7-1165G7/Resistive/3COM/4USB/2LAN/2DP/Barebone, w/o Memory/storage/Kit
C971XAR38C1000R
Intel AX210 WIFI6 M.2 2230 A-Key kit
C971XAR38C1001R
Intel8265NGW M.2 2230 NGFF BT4.2 kit
C971XAR38C1002R
Wifi M.2 802.11 ac/a/b/g/n,2T2R, BT5.1 kit
C971XAR38C1003R
M.2 4G module LTE Cat4
C971XAR38C1004R
M.2 3042 5G (Sub 6) module
C971XAR38C1005R
COM Kit
C971XAR38C1006R
USB Kit
C971XAR38C1007R
GPIO Kit
C170P060040R
US Power Cord SM001/3P+SM006/3P 1.83M
C170P060050R
EU Power Cord SH005/3P+SH006/3P 1.83M
C170P060060R
JP Power Cord SH001/3P+SH006/3P 1.83M
C170P060070R
UK Power Cord YP61A/3P+YC12/3P 1.83M
C170P060080R
AU Power Cord SH051/3P+SH006/3P 1.83M
