Brand: BOE

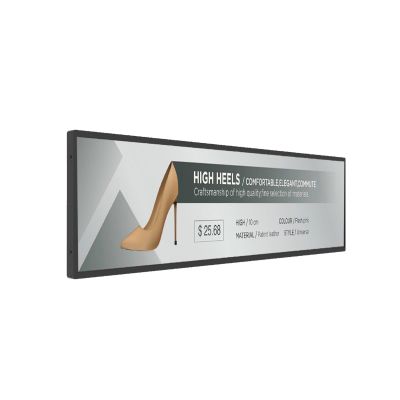

BM370A-M02 37” 700nit Bar Display
In stock
SKU:
BM370A-M02
1920 × 540 Resolution, Multiple External Inputs, Full Metal Shell
Key Features:
- ADSDS Panel Technology
- 1920 × 540 Resolution
- 700nits Brightness
- Multiple External Input
- External Control via RS232
- Slim Design
- Full Metal Shell
Enquire Now
Enquire Now
Key Features:
- ADSDS Panel Technology
- 1920 × 540 Resolution
- 700nits Brightness
- Multiple External Input
- External Control via RS232
- Slim Design
- Full Metal Shell
Display |
|
| Model | BM370A-M02 |
| LCD Tech. | ADS |
| Screen Size | 37 inch |
| Resolution | 1920 × 540 |
| Brightness | 700nits |
| Contrast Ratio | 1200:1 |
| Viewing Angle(H/V) | 178°/178° |
| Display Colors | 16.7 M |
Drive Board |
|
| Input | HDMI × 2 / DP × 2 |
| Output | DP × 1 / HP × 1 |
| External Control | RS232 & IR × 1 (IN/ Out) |
| Networks | - |
| Others | USB 2.0 × 1 (F/W Update Only) |
Power |
|
| Power supply | AC 100V~240V@50/60Hz |
| Power consumption (Typ.) | ≤38 W |
| Power consumption (Standby) | ≤0.5 W |
| Power consumption (Off) | ≤0.5 W |
Environment |
|
| Operation temperature | 0℃~40℃ |
| Operation humidity | 20%~80% RH |
Physical |
|
| Bezel Width | 5.59mm (L/R) / 11.93mm (T/B) |
| Body Dimension | 914.90(W) × 280.90 (H) × 48.8(D) mm |
| Set Weight | 7.84Kg |
| Package Dimension (4 sets inside) | 980 (W) × 370 (H) × 350 (D) mm |
| Package Weight (4 sets inside) | 34kg |
