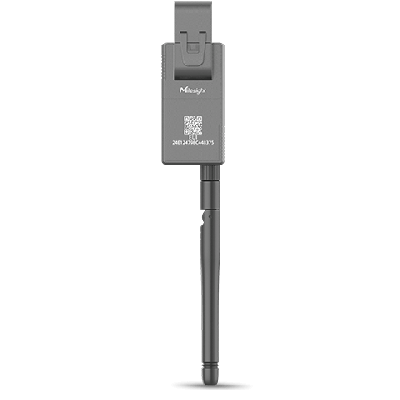

CT101 Smart Current Transformer
Go Wireless, Stay Non-Invasive
Key Features:
-
Self-Powered Operation
-
Superior Accuracy with Up to 3.3kHz Frequency
-
Real-time Accumulated Ampere Hour Calculation
-
Non-invasive Installation
-
Irregular Current Status Alert
-
Compact Size for Versatile Placement
-
Cable-Free Design
-
LoRaWAN® Wireless Technology
The CT10x is designed to derive power directly from the measured circuit, eliminating the constraints of batteries while ensuring seamless operation.
Outperform other competitors on the market, CT10x boasts an impressive high sampling frequency of up to 3.3kHz, guaranteeing unparalleled accuracy and detail.
Calculate accumulated ampere hour in real-time at a one-second interval. This enables precise energy consumption monitoring and analysis, achieving goals such as energy conservation and reduced operational costs.
Split core product design for non-invasive and quick installation, eliminating the risk of circuit damage or power interruptions.
| Electrical | |
|---|---|
| Detection Parameter | RMS Current |
| Sampling Frequency | 3.3 kHz |
| Working Frequency | 50~60 Hz |
| Maximum Input Current | 100 A |
| Minimum Input Current | 1 A |
| Accuracy | ±1 % |
| Resolution | 1 mA |
| Wireless Transmission | |
| Protocol | LoRaWAN® |
| Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137dBm |
| Mode | OTAA/ABP Class A |
| Others | |
| Button | 1 × Reboot Button |
| LED Indicator | 1 × Status/Alarm Indicator |
| Configuration | USB Type-C or Downlink |
| Physical Characteristics | |
| Power Supply | Induced current power supply |
| Color/ Material | Black, Nylon PA66 (UL94 V0) |
| Operating Temperature | -20°C~70°C (-4°F~158°F) |
| Storage Temperature | -25°C~80°C (-13°F~176°F) |
| Relative Humidity | ≤ 95% (Non-condensing) |
| Ingress Protection | IP30 |
| Dimensions | 86.5 × 31 × 37.4 mm (5.7 × 3.54 × 1.47 in) Wire Hole: Ф 16 mm (Ф 0.63 in) |
| Weight | 85.65g |
| Installation | Suspended on the Testing Conductor |
