Brand: Transcend

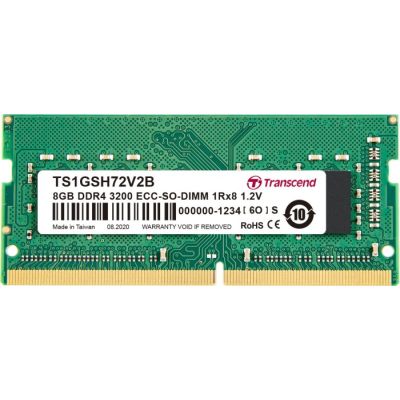

DDR4-3200 SO-DIMM
In stock
SKU:
DDR4-XG-SD-3200/-I
3200/2666/2400/2133 Mbps DRAM Modules
Enquire Now
Enquire Now
The DDR4 DRAM modules from Transcend meet the requirements of the embedded industry with higher energy efficiency and exceptional clock speeds while operating at a nominal voltage of just 1.2V. The modules come in a variety of form factors and technologies, including wide-temperature support and ECC. All parts are of the highest quality because they were obtained directly from the top-tier DRAM chip supplier in the world and rigorously tested for unmatched compatibility, dependability, and performance.
Key Features:
- JEDEC standard 1.2V ± 0.06V power supply
- High energy efficiency
- 8-bit pre-fetch
- Burst Length: 4, 8
- 16 Banks (4 Bank Groups)
- Support DBI mode
- Support Command/Address parity detection
- Support Data Cyclic Redundancy Check (CRC) for improved data reliability
- On-die termination with ODT pin
- Serial presence detect with EEPROM
- 100% tested for stability, compatibility and performance
| RAM Type | DDR4 |
| DIMM Type | ECC SO-DIMM |
| Speed | 3200 |
| CAS Latency | CL22 |
| Capacity | 4/8/16/32GB |
| Rank x Org. | 1Rx8 |
| Component Composition | (1Gx8)x9 |
| Voltage |
1.2V
|
|
Pin Count
|
260 pin
|
|
PCB Height
|
1.18 inches
|
|
PCB Gold Finger Thickness
|
30 µ”
|
|
Anti-Sulfuration
|
Default
|
|
Operating Temperature
|
|
