DF613-I Fanless Signage Player with 10-pin GPIO
Fanless Signage Player with Intel 13th Gen. and Supports 8K Display
Key Features:
- Intel® Raptor Lake-P Core i3/i5 processors
- 1 x DP (7680 x 4320 @60 Hz)
- 2 x HDMI (4096 x 2304 @60 Hz)
- 8 bi-directional GPIOs (10-pin Phoenix)
- Support Intel® vPro® technology
- Fanless design

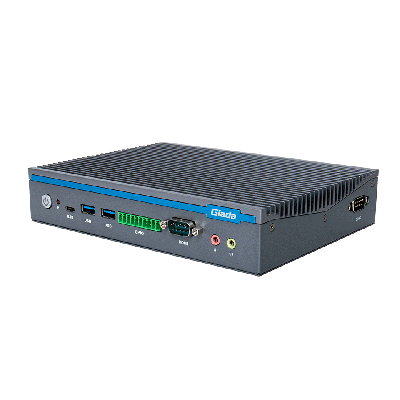

Introducing the Giada DF613-I Fanless Embedded PC
Elevate your digital infrastructure with the Giada DF613-I, a fanless embedded PC designed to deliver exceptional performance and reliability. Perfect for a diverse range of applications, including digital signage, interactive kiosks, and edge computing, the DF613-I is the epitome of versatility and efficiency.
Features:
- Fanless Design: The DF613-I's fanless architecture ensures silent operation and minimal maintenance, making it ideal for noise-sensitive environments and prolonged use.
- Robust Performance: Powered by Intel® processors, the DF613-I provides robust computing power suitable for demanding applications.
- Compact and Durable: Its compact form factor and rugged construction are perfect for space-constrained installations and harsh operating conditions.
- Versatile Connectivity: Equipped with multiple I/O ports, including HDMI, DP, USB 3.0, and LAN, the DF613-I offers versatile connectivity options to support various peripherals and devices.
- Enhanced Graphics: Integrated Intel® UHD Graphics ensures superior visual performance for high-resolution displays and graphics-intensive applications.
- Energy Efficient: The fanless design not only ensures quiet operation but also contributes to energy savings, making it an eco-friendly choice.
Applications:
- The Giada DF613-I is perfect for numerous industries and use cases:
- Digital Signage: Deliver reliable, high-performance content for advertising and informational displays.
- Interactive Kiosks: Provide engaging user experiences with responsive and powerful computing capabilities.
- Edge Computing: Optimize data processing at the edge with robust performance and connectivity.
Why Choose the Giada DF613-I:
- Reliability: Engineered for continuous operation, the DF613-I ensures minimal downtime and consistent performance.
- Flexibility: Its versatile design allows for easy integration into various setups and environments.
- Support: Backed by Giada's reputation for quality and customer support, the DF613-I is a reliable choice for your critical applications.
Enhance your digital infrastructure with the Giada DF613-I Fanless Embedded PC. Contact us today to learn more about how this powerful and efficient solution can meet your needs.
|
CPU |
CPU |
Intel® Core™ i3-1315U processor |
|
Efficient Frequency |
3.30 GHz/3.40 GHz |
|
|
Performance Frequency |
4.50 GHz/4.60 GHz |
|
|
Chipset |
SoC |
|
|
Processing Units |
6 Cores /10 Cores |
|
|
Configurable TDP-up |
15 W /15 W |
|
|
Memory |
Size |
Up to 64 GB |
|
Type |
2 x SO-DIMM DDR4-3200 MHz |
|
|
Storage |
Socket 1 |
1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD |
|
Display |
GPU |
Intel® UHD Graphics (Core™ Core i3) Intel® IRIS® Xe Graphics (Core™ Core i5) |
|
Graphic Engine |
DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC
|
|
|
Display Interface |
1 x DP (Max.7680 x 4320 @60 Hz)
2 x HDMI (Max.4096 x 2304 @60 Hz)
|
|
|
Network |
Network Controller |
1 x Intel i219-LM Gigabit Ethernet 1 x Realtek RTL8111H Gigabit Ethernet |
|
Ethernet Interface |
2 x RJ45 |
|
|
Wi-Fi/BT |
1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi) |
|
|
Mobile Network |
1 x B-Key M.2 (3042) for 3G/4G, 1 x SIM Slot |
|
|
I/O interface |
USB |
1 x USB Type-C,
4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0
|
|
GPIO |
8 bi-directional GPIOs (10-pin Phoenix) |
|
|
Serial Port |
1 x RS232, 1 x RS232/422/485 |
|
|
Audio |
1 x MIC-IN, 1 x AUDIO-OUT
|
|
|
Button |
1 x Power on, 1 x CLR-CMOS |
|
|
Antenna |
2 x Connector for Wi-Fi/BT |
|
|
System |
TPM |
Optional: TPM2.0 |
|
Watchdog Timer |
Yes |
|
|
Auto Power On |
Yes |
|
|
RTC |
Set up independently every day, a week as a cycle |
|
|
Power Requirement |
DC-IN, 19 V/4.74 A |
|
|
Dimensions |
200 mm x 150 mm x 40 mm (7.87” x 5.90” x 1.57”) |
|
|
Construction |
Metal, Grey |
|
|
Operating System |
Windows 11 (64bit) /Linux Ubuntu (64bit) |
|
|
Operating Temperature |
0°C ~45°C (32°F~113°F) @0.7m/s Air Flow |
|
|
Humidity |
95% @ 45°C (non-condensing) |
|
|
Certifications |
CE, FCC Class B, UKCA |
1335U40N0G-GIA
