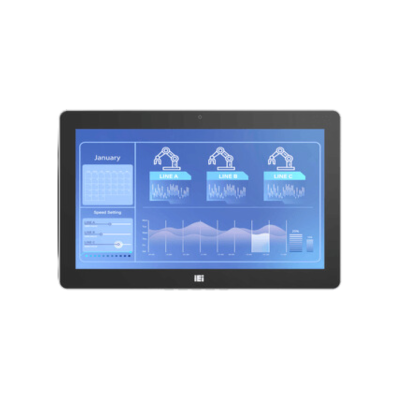

DM2-W156 15.6” IP65-Front Industrial Display
15.6” Latest Generation Industrial Monitor
Key Features:
-
Front OSD, easy access for setting adjustment
-
Speakers are positioned at the front, ensuring clear sound delivery even in panel mount
-
Supports gloved operation and waterproof protection
-
Built-in camera, ideal for AI facial recognition
-
USB 3.2 Gen1 Type-A supports 10W
-
IP65-compliant front panel with aluminium frame
-
Anti-glare and anti-UV PCAP
The DM2 series LCD monitor is the latest member of IEI’s line of sophisticated LCD designs with flat bezels. It is designed to fit industrial automation. The flat front panel provides IP 65 protection, effectively warding off dust and water. Flexible analog or digital interfaces are provided for ease of connection with a management computer.
|
Display |
|
|---|---|
|
LCD Size |
15.6” (16:9) |
|
Brightness(cd/m2) |
450 |
|
Max Resolution |
1920 x 1080 |
|
Contrast Ratio |
800:1 |
|
Backlight MTBF(hrs) |
50000 |
|
I/O Interface |
|
|
I/O Ports |
1 x VGA (DB-15) 1 x HDMI 1 x DisplayPort1.2 1 x USB 3.2 Gen1 Type-B 4 x USB 3.2 Gen1 Type-A (5V2A) (Lite without) 1 x Line out 1 x 9V-36V DC jack 1 x 3-pin terminal block |
|
Power |
|
|
Power adapter |
12V DC |
|
Environment |
|
|
Operating Temperature |
-20°C ~ 60°C |
|
Humidity |
10% to 95%@40°C (non-condensing) |
|
Storage Temperature |
-20°C ~ 70°C |
|
IP Level |
IP 65 compliant front panel |
|
Physical Characteristics |
|
|
Colour |
Black + Silver |
|
Dimensions (LxWxH) (mm) |
391.50 x 250 x 49.60 |
|
Cutout Dimensions |
373.30 x 269.00 |
|
LCD |
|
|
LCD Color |
16.2M |
|
Viewing Angle (H-V) |
178°/178° |
|
Touch |
|
|
Touch Screen |
10-point Projected capacitive touch window (Anti-UV, Anti-glare Surface) |
|
Touch Controller |
Capacitive:litek |
|
DM2-W156K-R10 |
15.6" 450 cd/m² 1920 x 1080 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10 |
|---|---|
|
DM2-W156KL-R10 |
15.6" 450 cd/m² 1920 x 1080 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10 |
