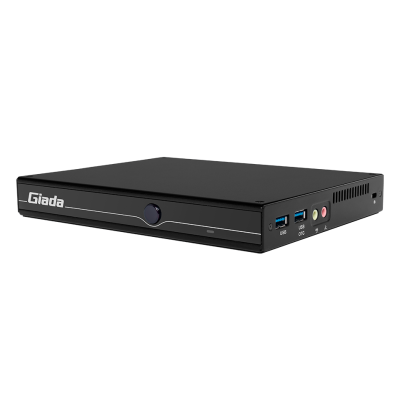

DM6-R AMD R2000 Digital Signage Player
Long Life Cycle AMD Ryzen R2000 Book-size Signage Player
Key Features:
- AMD Ryzen R2314 Processor
- 4 x HDMI (3840 x 2160 @60 Hz)
- Support Wi-Fi/BT module
- Support 3G/4G module
- AMD Radeon Vega Graphics

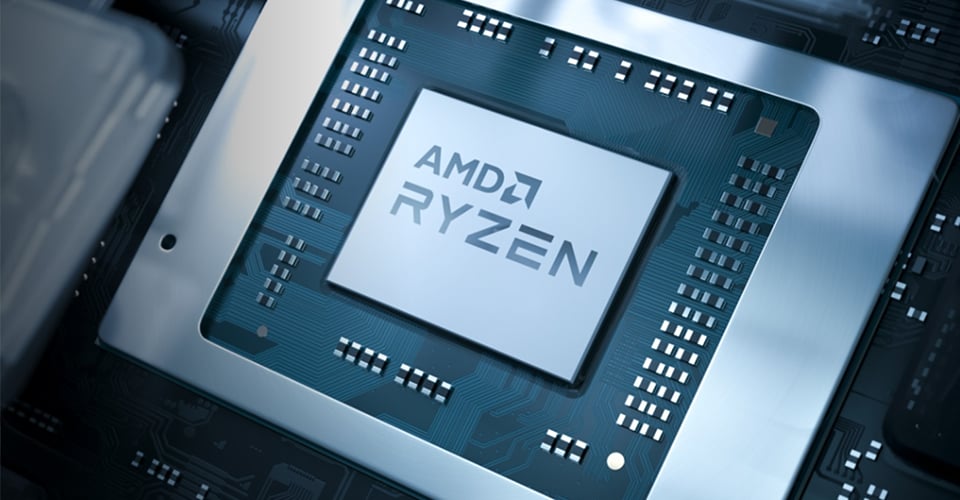

AMD® Ryzen™ R2000 Processors Long Life Cycle Product
The booksize player adopts a high-performance Ryzen™ Embedded R2314 processor. It supports dual-channel DDR4 memory and it's flexible enough to extend the hard drive through an M.2 slot.
Four Display Outputs
Supporting 4K Video Playback
The player supports AMD Radeon™ Vega 6 Graphics. It has four HDMI 2.0a outputs, supporting Max. 3840 x 2160@60Hz resolution. As for video decoding capability, it supports up to three 4K (3840 x 2160@30fps) or four 1080p (1920x1080@60fps) video decoding. With AMD drivers, users can easily group monitor configurations, including 1 x 4 and 2 x 2.
I/O Ports
|
CPU |
CPU |
AMD® Ryzen Embedded 2314
|
|
Frequency |
3.50 GHz
|
|
|
Chipset |
SoC |
|
|
Processing Units |
4 Cores |
|
|
TDP |
25 W
|
|
|
Memory |
Size |
Up to 32 GB |
|
Type |
2 x SO-DIMM DDR4-2666 MHz |
|
|
Storage |
Socket |
1 x M-Key M.2(2280) PCIe3.0 X4 for SSD |
|
Display |
GPU |
AMD® Radeon™ RX Vega 6 Graphics
|
|
Multi-media
|
H.265 / VP9 video decode, up to 4K@60fps
H.264 8-bit decode and encode
|
|
|
Display Interface |
4 x HDMI (Max.3840 x 2160 @60 Hz)
|
|
|
Network |
Network Controller |
1 x Realtek RTL 8111H Gigabit Ethernet |
|
Ethernet Interface |
1 x 1GbE RJ45 |
|
|
Wi-Fi/BT |
1 x E-Key M.2 (2230) for Wi-Fi/BT |
|
|
Mobile Network |
1 x B-Key M.2 (3042) for 3G/4G
1 x SIM Slot |
|
|
I/O interface |
USB |
2 x USB3.2 Gen1, 2 x USB2.0
|
|
Serial Port |
1 x RS232 |
|
|
Audio |
1 x MIC-IN, 1 x AUDIO-OUT |
|
|
Button |
1 x Power on, 1 x CLR-CMOS |
|
|
Antenna |
1 x Connector for Wi-Fi/BT |
|
|
System |
TPM |
Optional: TPM2.0 |
|
Watchdog Timer |
Yes |
|
|
Auto Power On |
Yes |
|
|
RTC |
Set up independently every day, a week as a cycle |
|
|
Power Requirement |
DC-IN, 19 V/3.42 A |
|
|
Dimensions |
189.6mm x 148.3mm x 26mm (7.46” x 5.83” x 1.02”) |
|
|
Construction |
Metal, Black |
|
|
Operating System |
Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit) |
|
|
Operating Temperature |
0°C ~45°C (32°F~114°F) @0.7m/s Air Flow |
|
|
Humidity |
95% @ 45°C (non-condensing) |
|
|
Certifications |
CE, FCC Class B, UKCA |
DM6-R231440M0G-GIA AMD Ryzen Embedded R2314
