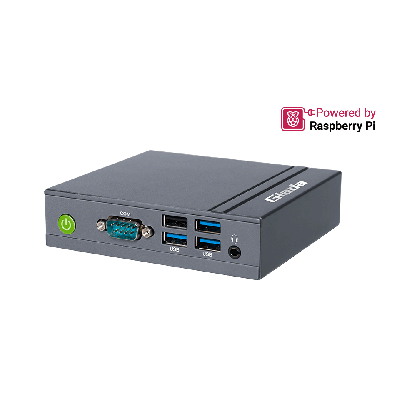

DN24 Raspberry Pi CM4 Lite Signage Player
Raspberry Pi CM4 Lite Module, Supports 4K Display
Key Features:
- Raspberry Pi CM4 Lite
- 2 x HDMI (3840 x 2160 @60Hz)
- Onboard Wi-Fi/BT module
- Fanless design
Raspberry Pi CM4 Lite Compute Module
The ultra-compact player based on the Raspberry Pi CM4 lite module features a Quad-core Cortex-A72 processor up to 1.5GHz. It supports onboard dual-channel LPDDR4 memory, and eMMC storage expansion via module compatibility
Dual Display Outputs
Support UHD (4K) Video Playback
The player features an integrated VideoCore VI GPU. It supports video playback with hardware decoding for H.265 (4Kp60), H.264 (1080p60), and VP9, and hardware encoding for H.264 (1080p30). The player provides dual video outputs via 2 x HDMI 2.0 (up to 4Kp60)
Supporting 24/7 Operation
The media player is a professional commercial-grade solution designed for continuous, stable operation 24/7, ensuring reliable performance for over two years without interruption. Its robust design significantly reduces operational and maintenance costs, making it an ideal choice for businesses seeking long-term efficiency and minimal downtime

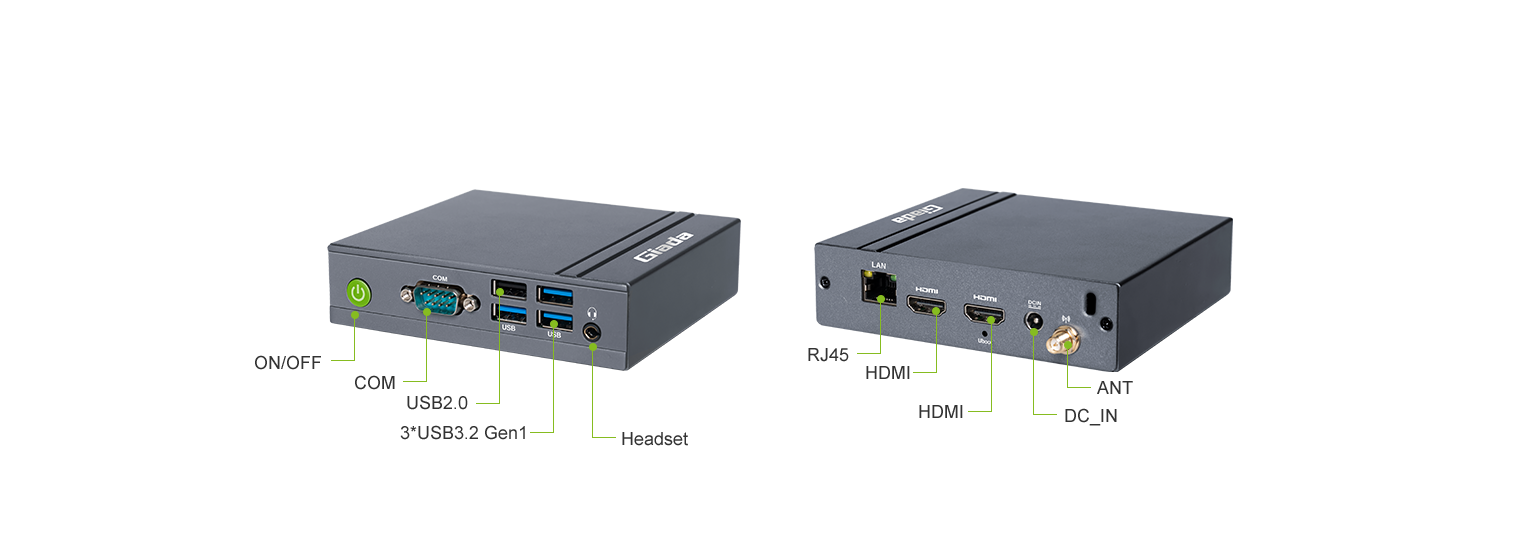

I/O port introduction
|
Compute Module |
Compute Module |
Raspberry Pi CM4 Lite |
|
Frequency |
1.50 GHz |
|
|
Processing units |
4 Cores Cortex-A72 |
|
|
Memory on Module |
4 GB, Onboard LPDDR4-3200 MHz |
|
|
Storage |
Onboard |
32 GB, Onboard eMMC (Optional: 64 GB) |
|
Network |
Network Controller |
1 x Pef7071 PHY |
|
Ethernet Interface |
1 x RJ45 |
|
|
Wi-Fi/BT |
Onboard Wi-Fi/BT module (2.4 GHz/5 GHz) |
|
|
Mobile Network |
NA |
|
|
Display |
GPU |
Video Core VI |
|
Graphic Engine |
OpenGL ES3.0, Vulkan 1.0
|
|
|
Multi-Media |
44K60 H.265 video decoders,1080p60 h.264 decoders |
|
|
Display Interface |
2 x HDMI (Max. 3840 x 2160 @60 Hz) |
|
|
I/O interface |
USB |
3 x USB3.2 Gen1, 1 x USB2.0 |
|
Serial Port |
1 x RS232 |
|
|
Audio |
1 x 2-IN-1 headset (MIC-IN & AUDIO-OUT) |
|
|
Button |
1 x Power on, 1 x U-BOOT |
|
|
Antenna |
1 x Connector for Wi-Fi/BT, 1 x Reserved |
|
|
System |
Watchdog Timer |
Yes |
|
Auto Power On |
Yes |
|
|
RTC |
Set up independently every day, a week as a cycle |
|
|
Power Requirement |
DC-IN, 12 V/2.08 A |
|
|
Dimensions |
116.6 mm x 107.4 mm x 30 mm (4.59” x 4.23” x 1.18”) |
|
|
Construction |
Metal |
|
|
Operating System |
Raspberry Pi OS |
|
|
Operating Temperature |
0°C ~45°C (32°F~113°F) @0.7m/s Air Flow |
|
|
Humidity |
95% @ 45°C (non-condensing) |
|
|
Certifications |
CE, FCC Class B, UKCA |
DN24-CM4R42E5G-GIA
Computer Module: Raspberry Pi CM4 Lite module
RAM: 4 GB, Onboard LPDDR4-3200 MHz
Storage: 32 GB, Onboard eMMC
Wi-Fi/BT: Onboard Wi-Fi/BT module (2.4GHz/5GHz)
Operating System: Raspberry Pi OS
