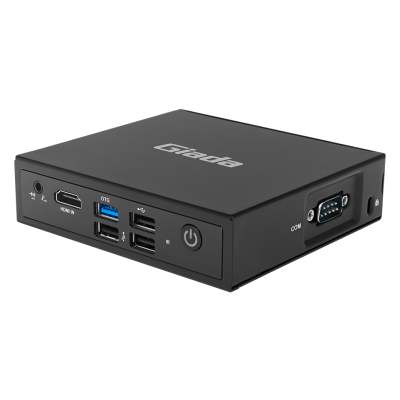

DN75 Dual-HDMI Android Signage Player with HDMI Input
Android 11 Digital Signage Player with Rockchip RK3399 and HDMI Input
Key Features:
- Rockchip RK3399 processor
- 1 x HDMI (4096 x 2160 @60 Hz), 1 x HDMI (2560 x 1440 @30 Hz) and 1 x HDMI-IN
- Onboard Wi-Fi/BT module
- Support 3G/4G module
- Fanless design
RK3399 High-performance Processor
The ultra-compact Android player adopts Dual-core Cortex-A72 and Quad-core Cortex-A53 processors. It supports onboard dual-channel LPDDR4 memory, eMMC5.1 storage, dual-band WiFi, and Bluetooth 4.2.
HDMI-IN & Dual Display Outputs
The player adopts Rockchip-integrated Mali-T860 GPU. It supports one 1080p video input via HDMI-IN port. It is designed for Picture-in-Picture or video recording applications. It also supports two video outputs via 1 x HDMI 2.0 (4096 x 2304@60Hz) and 1 x HDMI 1.4a (2560 x 1440@30 Hz).
HDMI-IN & Dual Display Outputs
The player adopts Rockchip-integrated Mali-T860 GPU. It supports one 1080p video input via HDMI-IN port. It is designed for Picture-in-Picture or video recording applications. It also supports two video outputs via 1 x HDMI 2.0 (4096 x 2304@60Hz) and 1 x HDMI 1.4a (2560 x 1440@30 Hz).
I/O port introduction
|
CPU |
CPU |
Rockchip RK3399 |
|
Frequency |
1.80 GHz |
|
|
Processing units |
2 Cores Cortex-A72 & 4 Cores Cortex-A53 |
|
|
TDP |
6 W |
|
|
Memory |
Size |
4 GB |
|
Type |
Onboard LPDDR4-2133 MHz |
|
|
Storage |
Onboard |
32 GB, Onboard eMMC (Optional: 64 GB) |
|
Socket 1 |
1 x TF Card reader |
|
|
Network |
Network Controller |
1 x Pef7071 PHY |
|
Ethernet Interface |
1 x RJ45 |
|
|
Wi-Fi/BT |
Onboard Wi-Fi/BT module |
|
|
Mobile Network |
1 x Full-size Mini-PCIe for 3G/4G |
|
|
Display |
GPU |
Mali-T860MP4 |
|
Graphic Engine |
OpenGL ES1.1/2.0/3.0/3.1, OpenCL, Support AFBC (ARM Frame Buffer Compression) |
|
|
Multi-Media |
4K VP9 decoders |
|
|
Display Interface |
1 x HDMI (Max. 4096 x 2160 @60 Hz) |
|
|
I/O interface |
USB |
1 x USB3.2 Gen1 (OTG), 3 x USB2.0 |
|
Serial Port |
1 x RS232 |
|
|
Audio |
1 x MIC-IN, 1 x AUDIO-OUT |
|
|
Button |
1 x Power on, 1 x Recovery |
|
|
Antenna |
1 x Connector for Wi-Fi/BT |
|
|
System |
Watchdog Timer |
NA |
|
Auto Power On |
Yes |
|
|
RTC |
Set up independently every day, a week as a cycle |
|
|
Power Requirement |
DC-IN, 12 V/2.08 A |
|
|
Dimensions |
116 mm x 106 mm x 30 mm (4.57” x 4.17” x 1.18”) |
|
|
Construction |
Metal, Black |
|
|
Operating System |
Android 8.1 |
|
|
Operating Temperature |
0°C ~40°C (32°F~104°F) @0.7m/s Air Flow |
|
|
Humidity |
95% @ 40°C (non-condensing) |
|
|
Certifications |
CE, FCC Class B |
