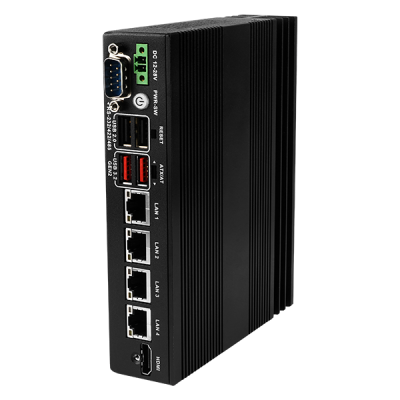

DRPC-124-EHL Fanless DIN-Rail Embedded System
Discover industrial computing excellence with the fanless DRPC-124-EHL Embedded System, featuring Intel Celeron power, four GbE LAN ports, and a compact design.
Key Features:
-
Compact Industrial Mini PC
-
Fanless system
-
Intel Celeron J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
-
Four GbE LAN
-
CE/FCC compliant
Introducing the DRPC-124-EHL Fanless DIN-Rail Embedded System, a compact marvel designed to revolutionize industrial computing. This fanless system operates seamlessly with the power of the Intel® Celeron® J6412 processor, reaching speeds of up to 2.6 GHz while maintaining an energy-efficient TDP of 10W. Its quad-core performance ensures optimal processing for demanding applications. With four GbE LAN ports, connectivity is enhanced, facilitating seamless data exchange in industrial environments. CE and FCC compliant, this embedded system guarantees reliability and adherence to industry standards. The DRPC-124-EHL combines compact design, impressive power, and comprehensive compatibility, making it the ultimate choice for industrial computing needs.
Key Features:
-
Compact Industrial Mini PC
-
Fanless system
-
Intel Celeron J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
-
Four GbE LAN
-
CE/FCC compliant
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
|
| I/O Interface | |
| I/O Ports |
|
| Expansion Slots | |
| Expansion Slots |
|
| System | |
| Cooling method / System Fan | Fanless |
| Drive Bays | eMMC 5.1 (Optional) (MOQ, please contact with sales account manager) |
| Indicator&Buttons | |
| Buttons | 1 x Power button 1 x Clear CMOS |
| Indicators | 1 x Power LED |
| Physical Characteristics | |
| Construction | Extruded aluminium alloy |
| Colour | |
| Colour | Black |
| Dimensions | |
| Dimensions | 159 x 132.5 x 35 (mm) |
| Weight | |
| Weight | 0.78KG /1.2kg |
| Environment | |
| Operating Temperature | -10°C ~ 50°C with 0.7M/S air flow (M.2) |
| Humidity | 10% ~ 95% non-condensing |
| Operating Vibration | 10-500 Hz,1.04 Grms, random, 1 hr/axis |
| Operating Shock | Half-sine wave shock 5G, 11ms, 100 shocks per axis |
| Safety & EMC | CE, FCC, UKCA |
| OS Support | |
| OS Support | Microsoft® Windows® 10/11, Linux |
Ordering Information
| DRPC-124-EHL-W10IoT21-E-R10 | OS Image with Windows® 10 Enterprise Entry 64-bit 2021 LTSC for DRPC-124-EHL Series, with DVD-ROM, RoHS |
|---|---|
| DRPC-124-EHL-JC-R10 | Fanless System with Intel® Celeron® J6412 2.0GHz (up to 2.6 GHz, Quad Core, TDP 10W), onboard 8GB LPDDR4x memory, 1 x GbE Lan, 3 x 2.5GbE Lan, 1 x HDMI, 12-28V DC, RoHS |
Package Contents
| Package Content |
|
|---|
