DRPC-242-ADL-P Fanless DIN-Rail Embedded System

In stock
SKU:
DRPC-242-ADL-P

Fanless DIN-Rail Embedded System 12/13th Gen Intel Core

Key Features:

  • 12/13th Intel Core Processor
  • -20°C to 60°C Wide Operating Temperature
  • Fanless Design
  • 4K Dual Display
  • 2 x USB 3.2 Gen2 & 4 x USB 2.0
  • 2 x RS-232 & 2 x RS-422/485 (with 2.5KV isolation)
  • CE/FCC compliant

Enquire Now
Enquire Now

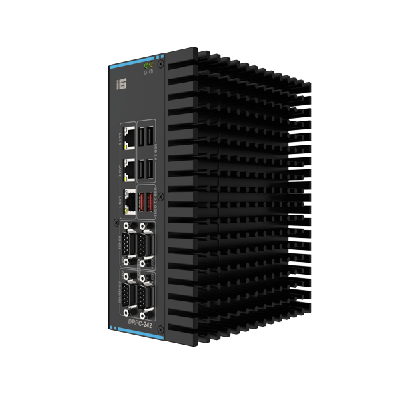

main product photo
We build to order

The DRPC-242-ADL-P is an integrated DIN rail box PC. It boasts a modular design with PCIe expansion, allowing users to customize the configuration according to their needs. With its impressive computing power, powered by the 12th generation Intel Core Processors, and versatile I/O connectivity, the DIN Rail Box PC efficiently handles advanced Industrial Internet of Things (IIoT) applications, including AMR controllers, EV charging station controls, AI inference computing, robotics control, and cabinet control.




This product is listed in Embedded Computers, IEI Integration Corp.
Specifications

Form factor

SBC Form Factor

  • Supported CPU:

    Intel® Core™ i7-1370PE (up to 4.8GHz, 14-core, 28W TDP)

    Intel® Core™ i7-1260P (up to 4.7GHz, 12-core, 28W TDP)

    Intel® Core™ i5-1340PE (up to 4.5GHz, 12-core, 28W TDP)

    Intel® Core™ i5-1240P (up to 4.4GHz, 12-core, 28W TDP)

    Intel® Core™ i3-1320PE (up to 4.5GHz, 8-core, 28W TDP)

    Intel® Core™ i3-1220P (up to 4.4GHz, 10-core, 28W TDP)

    Intel® Celeron® 7305 (5-core, 15W TDP)

  • Chipset:

    SoC

  • System Memory:

    2 x SO-DIMM slot DDR4 3200 MHz (8 GB pre-installed) (up to 64GB)

  • Power:

    3-pin terminal block: 12 ~ 28 VDC

    Consumption: 12V@4.46A (Intel® Core™ i7-1260P with DDR4 8G Memory)

I/O Interface

I/O Ports

  • USB:

    2 x USB 3.2 Gen2

    4 x USB 2.0

  • Ethernet:

    1 x 2.5 GbE by Intel® I225LM/I226LM controller support iAMT

    2 x 2.5 GbE by Intel® I225-V/I226-V controller

  • Display:

    1 x lockable HDMI™ 1.4b (up to 4096 x 2160@30Hz)

    1 x DP 1.4b (up to 4096 x 2160 @60Hz)

  • COM Port:

    2 x RS-232 (DB9 with 2.5KV isolation)

    2 x RS-232 (optional)

    2 x RS-422/485 with AFC (DB9 with 2.5KV isolation)

  • GPIO:

    1 x 12-bit(6-in, 6-out)(optional)

  • TPM:

    Support Intel PTT

  • Watchdog Timer:

    Programmable 1 ~ 255 sec/min

Expansion Slots

Expansion Slots

  • M.2:

    1 x 2230 A-key (PCIe Gen3 x1/USB 2.0) Support Vpro

    1 x 3042/52 B-key (PCIe Gen3 x1/USB 3.2 Gen2/USB 2.0)

    1 x On-board SIM card socket (hinge type) for M.2 B key

    1 x 2280 M-key (PCIe Gen4 x4)

  • Backplane:

    1 x PCIe Gen3 x4 (optional)

System

Cooling method / System Fan

Fanless

4-pin external system fan connector

Drive Bays

1 x 2.5” SATA 6Gb/s SSD bay

Indicator & Buttons

Buttons

1 x Power button

1 x 2-pin terminal block for Remote Power Button,

1 x Reset button

1 x AT/ATX switch,

Indicators

1 x Power LED

1 x HDD LED

Physical Characteristics

Construction

Extruded aluminium alloy

Colour

Colour

Black

Dimensions

Dimensions

81 x 150 x190 mm

Weight

Weight

1.88 / 2.66KG

Environment

Operating Temperature

-20°C ~ 60°C with 0.7M/S air flow (SSD)

Humidity

10% ~ 95% non-condensing

Operating Vibration

10-500 Hz, 1.04 Grms, random, 1 hr/axis (SSD)

Operating Shock

Half-sine wave shock 5G, 11ms, 3 shocks per axis (SSD)

Safety & EMC

CE, FCC, UKCA

OS Support

OS Support

Microsoft® Windows® 10/11, Linux



Ordering Information

DRPC-242-ADL-P-i7CS-R10

Embedded system with 12th Gen Intel® Core™ i7-1260P, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS

DRPC-242-ADL-P-i5CS-R10

Embedded system with 12th Gen Intel® Core™ i5-1240P, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS

DRPC-242-ADL-P-i3CS-R10

Embedded system with 12th Gen Intel® Core™ i3-1220P, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoH

DRPC-242-ADL-P-Ri7ECS-R10

Embedded system with 13th Gen Intel® Core™ i7-1370PE, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoH

DRPC-242-ADL-P-Ri5ECS-R10

Embedded system with 13th Gen Intel® Core™ i5-1340PE, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS

DRPC-242-ADL-P-Ri3ECS-R10

Embedded system with 12th Gen Intel® Core™ i3-1320PE, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS

DRPC-242-ADL-P-CCS-R10

Embedded system with 12th Gen Intel® Celeron® 7305, TDP 15W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS
Downloads
pdf
Datasheet
pdf
User Manual
Ordering Information
DRPC-242-ADL-P-i7CS-R11 Embedded system with 12th Gen Intel® Core™ i7-1260P, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS
DRPC-242-ADL-P-i5CS-R11 Embedded system with 12th Gen Intel® Core™ i5-1240P, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS
DRPC-242-ADL-P-i3CS-R11 Embedded system with 12th Gen Intel® Core™ i3-1220P, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS
DRPC-242-ADL-P-Ri7ECS-R11 Embedded system with 13th Gen Intel® Core™ i7-1370PE, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS
DRPC-242-ADL-P-Ri5ECS-R11 Embedded system with 13th Gen Intel® Core™ i5-1340PE, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS
DRPC-242-ADL-P-Ri3ECS-R11 Embedded system with 12th Gen Intel® Core™ i3-1320PE, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS
DRPC-242-ADL-P-CCS-R11 Embedded system with 12th Gen Intel® Celeron® 7305, TDP 15W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS
