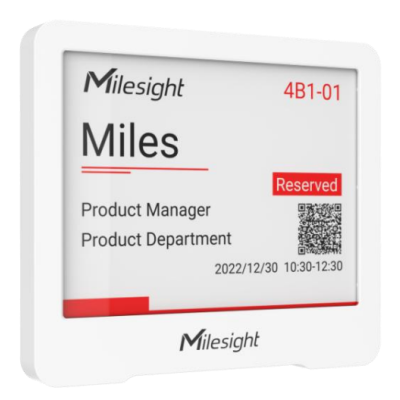

DS3604 - LoRaWAN IoT E-Ink Display
DS3604- Reflective Electrophoretic Display 4.2 Inch 5 Year Battery
Key Features:
- 4.2-inch three-color e-ink screen
- 400 × 300 pixels display with high contrast and ultra-wide viewing angle
- Enables quickly modifying of the displayed content including text, picture and QR code remotely and
locally - Support multiple characters to display up to 150 languages
- Support multicast feature for remote configurations in bulk
- Provide API for management platform integration or development
- Support display template customization
- Ultra-low power consumption with up to 5-year battery life
- Adapting to multiple scenarios with flexible installation methods
- Equipped with NFC for easy configuration
- Compliant with standard LoRaWAN® gateways
DS3604 a reflective electrophoretic display offersing flexibility and readability. 400 x 300 pixels and 1-bit Black/White/Red full display capabilities are available in the 4.2-inch active area.
The DS3604 supports up to 150 languages, along with additional modules like a picture or QR codes. Up to 5 years of battery life are possible thanks to large capacity batteries and extremely low power consumption. The DS3604 allows for remote management in bulk and allows for quick changes to the displayed content both locally and remotely through simple operations. For more integrated applications, DS3604 can also be installed using a variety of techniques and is compatible with LoRaWAN® standard gateways and networks.
Key Features:
- 4.2-inch three-color e-ink screen
- 400 × 300 pixels display with high contrast and ultra-wide viewing angle
- Enables quickly modifying of the displayed content including text, picture and QR code remotely and
locally - Support multiple characters to display up to 150 languages
- Support multicast feature for remote configurations in bulk
- Provide API for management platform integration or development
- Support display template customization
- Ultra-low power consumption with up to 5-year battery life
- Adapting to multiple scenarios with flexible installation methods
- Equipped with NFC for easy configuration
- Compliant with standard LoRaWAN® gateways
| Wireless Transmission | Technology | LoRaWAN® |
| Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 | |
| T x Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) | |
| Sensitivity | -137dBm | |
| Mode | OTAA/ABP Class A/Class B ( Default OTAA Class B) | |
| Display | E-ink Screen | 4.2-inch Black & White & Red E-Ink Screen |
| Resolution | 400 x 300 Pixels | |
| DPI | 119 | |
| Viewing Angle | 180° | |
| Refresh Rate | 16s (10 - 40°C)1 | |
| Display Character | Latin alphabet, English alphabet, Cyrillic alphabet, Greek alphabet, Chinese character, Japanese character, and Hangul |
|
| Display Languages2 | Support Displaying up to 150 Languages Including English, Chinese (Simplified & Traditional) , Spanish, French, Japanese, Portuguese, etc. (Exclude Hebrew, Arabic & Thai) | |
| Operation | Button | 1 x Reset Button (Internal) + 1 x Screen Butto |
| Buzzer | 1 x Buzzer | |
| Configuration | NFC Configuration via Mobile App | |
| Physical Characteristics | Power Supply | 3 × 590mAh CR2450 Lithium Batteries |
| Battery Life3 |
Around 5 Years (Class A Mode + 1 Screen Refresh per Day) Around 1 Year (Class B Mode + 12 Screen Refreshes per Day) |
|
| 1 The battery life will be shorten if the device works within 0~10°C for a long time. | ||
| 2 Contact Milesight to check the languages supported. | ||
| 3 Tested under laboratory conditions and for guideline purposes only. | ||
