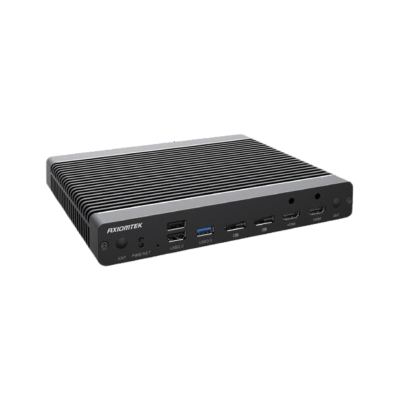

DSP521 Fanless Signage Player with 13th Gen
Digital Signage Player with 12th and 13th Generation Intel CPU, 2 HDMI, 2 DP1.4 (support
DP++), 2 RS-232, 2 LAN
Key Features:
- 2 x DDR4 SO-DIMM 3200, up to 32G each
- 2 HDMI 2.0 and 2 DP1.4 (support DP++)
- 1 1GbE LAN and 1 2.5GbE LAN
- 2 RS-232
The DSP521 Digital Signage Player offers high-performance digital signage with a choice of Intel® processors, including Intel® Celeron® 7305E, Intel® U300E, Intel® Core™ i3-1315UE, and Intel® Core™ i5-1335UE. It supports up to 32GB of dual DDR4-3200 SO-DIMM memory for smooth multitasking and responsiveness. Storage is flexible with an M.2 Key M 2280 slot supporting both SATA and NVMe.
Connectivity is extensive, featuring DP1.4, HDMI 2.0 with cable lock, RS-232, USB 3.0, USB 2.0, power and reset buttons, power LED, lockable DC power input, 1G LAN (Intel® I219), 2.5GbE LAN (Intel® I226), line-out, and four antenna openings. The player also includes M.2 Key E 2230 for Wi-Fi/BT (supporting Wi-Fi 5, 6, and 6E CNVi), M.2 Key B 3042 for 3G/4G/5G, and a SIM slot.
Powered by a +12V DC-in input, the DSP521 is compact (200 mm x 160 mm x 29 mm) and lightweight (1.3 kg). It operates in temperatures from 0°C to +60°C and humidity levels between 10% and 90% relative humidity, non-condensing, making it versatile for various installation environments.
| Component | Specification |
|---|---|
| CPU | Intel® Celeron® Processor 7305E, Intel® Processor U300E, Intel® Core™ i3-1315UE Processor, Intel® Core™ i5-1335UE Processor |
| System Memory | DUAL DDR4-3200 SO-DIMM, up to 32GB |
| Chipset | N/A |
| Storage | 1 x M.2 Key M 2280 (SATA & NVMe) |
| System I/O Outlet | 2 x DP1.4 (support DP++)<br>2 x HDMI 2.0 with cable lock design<br>2 x RS-232<br>1 x USB 3.0<br>2 x USB 2.0<br>1 x Power and reset button<br>1 x Power LED<br>1 x DC power input (lockable)<br>1 x 1G LAN (Intel® I219)<br>1 x 2.5GbE LAN (Intel® I226)<br>1 x Line-out<br>4 x Antenna opening |
| Expansion Interface | 1 x M.2 Key E 2230 for Wi-Fi/BT, support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)<br>1 x M.2 Key B 3042 for 3G/4G/5G<br>1 x SIM slot |
| Battery | Lithium 3 V/220 mAH |
| Power Input | +12V DC-in |
| Dimensions | 200 mm (7.8") (W) x 160 mm (6.2") (D) x 29 mm (1.14") (H) |
| Weight (net/gross) | 1.3 kg (2.86 lb)/2.3 kg (5.07 lb) |
| Operating Temperature | 0°C to +60°C (+32°F to +140°F) disabling CPU Turbo boost |
| Operation Humidity | 10% - 90% relative humidity, non-condensing |
