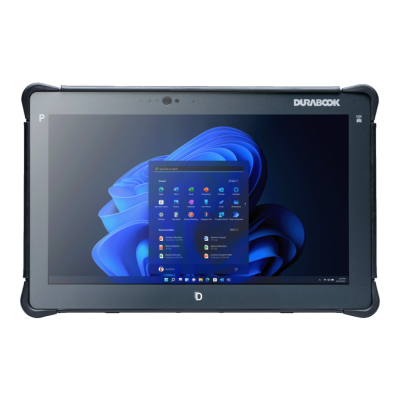

R11 11.6" IP66 Rugged Tablet with 12th Gen CPU
Sleek and Compact with Enterprise-Class Performance
Key Features:
- 11.6” FHD DynaVue® SR display with 1000 nits
- 12th Generation Intel® Core™ Processor
- Intel® Wi-Fi 6E AX211 & Bluetooth® V5.3
- Long-life battery up to 15 hours
- Optional barcode, RFID & smart card reader
- IP66 certified
- 10-point capacitive multi-touch panel with four touch modes
Crafted for the toughest conditions, the R11 stands as the most compact 11.6” tablet in its fully rugged category globally, weighing merely 1.2kg (2.65lb) and measuring a slim 20mm (0.79″) thick. Its sleek, streamlined exterior and tidy form complements its rugged reputation, ensuring peak operational performance in any scenario. Equipped with a 12th Gen Intel® Core™ processor, an IP66 design, and 4-foot drop protection, it is meticulously engineered to deliver the optimal balance of functionality, performance, and reliability, thereby enhancing the efficiency of today’s professional workforce.
Tech Specs
|
Display |
11.6” FHD (1920 x 1080) Optional 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen User selectable touch mode for Finger/Water, Glove, or Stylus programmable function |
|
Operating System |
Windows® 11 Pro 64-bit |
|
Processors |
Intel® Core™ i7-1255U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.7 GHz, 2P+8E cores) Intel® Core™ i5-1235U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.4 GHz, 2P+8E cores) |
|
Memory |
1 slot of 8GB up to 32GB (4800MHz DDR5) |
|
Storage |
256GB NVMe PCIe SSD Optional 512GB/1TB PCIe SSD |
|
Graphics |
Intel® Iris® Xe Graphics |
|
Camera |
Integrated 2.0 MP front-facing camera Optional 8.0 MP auto-focus rear camera with flash |
|
Audio |
Integrated microphone Intel® High Definition Audio Compliant Integrated speaker x 1 |
|
Keyboard & Input |
6 buttons (2 user-definable keys) |
|
I/O Ports |
Thunderbolt 4 x 1 USB 3.2 Gen2 (type A) x 1 Micro HDMI x 1 Audio in/out (combo jack) x 1 microSD card (microSDXC) x 1 Docking connector (35-pin Pogo) x 1 Nano SIM card x 1 DC-In jack x 1 Optional 10/100/1000 Ethernet (RJ-45) x 12 Optional smart card reader x 12 Optional 1D/2D barcode reader x 1 Optional RF antenna pass-through for GPS and WWAN1 |
|
Expansion Slots |
Optional RJ-45 x 1 or LF/HF-RFID (NFC) or Smart Card Reader or MSR+Smart Card Reader or RJ-45/RS-232/Smart Card Reader2 |
|
Wireless & Communications |
Intel® Wi-Fi 6E AX211 (802.11 ax) Bluetooth® V5.3 Optional dedicated GPS module (UBLOX-NEO-M8N)1 Optional GPS and 4G LTE multi-carrier mobile broadband1 Optional RF antenna pass-through for GPS and WWAN1 |
|
Security |
Intel® vPro™ Technology TPM 2.0 NIST BIOS compliant Stealth mode Kensington lock Optional Night vision mode4 Optional smart card reader2 Optional LF/HF-RFID (NFC) reader2 |
|
Power |
AC adapter : 100-240V, 50Hz-60Hz, 65W Main battery Li-Ion, 11.1V, 3950mAh, 8.5 hours3 Optional long life battery Li-Ion 11.1V, 6900mAh, 15 hours3 |
|
Dimension & Weight |
299 mm (L) x 192 mm (W) x 20 mm (H) 1.2 kg |
|
Warranty |
3-year limited warranty standard |
-
GPS/WWAN and dedicated GPS are mutually exclusive.
-
Mutually exclusive options.
-
Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.
-
Night vision mode is available only for sunlight readable display.
