Brand: BOE

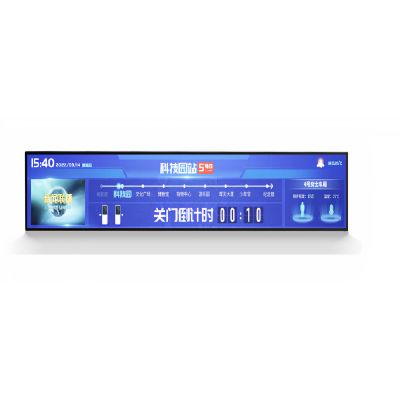

DV860FBM-N10 86" TFT-LCD Stretch Panel
In stock
SKU:
DV860FBM-N10
Key Features:
- V by one interface with 8 lanes
- High-speed response
- Low colour shift image quality
- 8-bit + FRC colour depth, display 1.07G colours
- High luminance and contrast ratio, low reflection and wide viewing angle
- GOA mode
- ADS technology is applied for high-display quality
- RoHS-compliant
Enquire Now
Enquire Now
The DV860FBM-N10a colour active matrix TFT LCD open cell employs amorphous silicon TFTs (Thin Film Transistors) as active switching devices. This OC has a diagonally measured active area of 86 inches and resolutions of (3840 horizontal by 600 vertical pixel array). This OC can display 1.07G colours because each pixel is divided into RED, GREEN, and BLUE dots arranged in a vertical stripe. This OC's TFT-LCD panel is optimised for low reflection and higher colour type.
Key Features:
- V by one interface with 8 lanes
- High-speed response
- Low colour shift image quality
- 8-bit + FRC colour depth, display 1.07G colours
- High luminance and contrast ratio, low reflection and wide viewing angle
- GOA mode
- ADS technology is applied for high-display quality
- RoHS-compliant
Applications include:
- Display Terminals for Control System
- Ultra High Definition Public Monitor
| Parameter | Specification |
| MDL Outline | 2171.08(H)X 359.5(V) mm |
| Active area | 2148.48(H)X 335.7(V) mm |
| Number of pixels | 3840(H) × 600(V) pixels |
| Pixel pitch | 562.2(H) ×562.2(V) μm |
| Pixel arrangement | 1G1D，Z Inversion，21T1C GOA |
| Display colors | 1.07G (8bits+FRC) colours |
| Display mode | Normally Black |
| Brightness | 1000 (Typ.) nit |
| MDL Thickness | 15.69 mm |
| Weight | 13500 (Max.) grams |
| Power Consumption | 240W (Max.) |
| Surface Treatment | AG25/Clear(CF /TFT POL) |
| Lifetime | 50000 hrs |
| Power Supply Voltage |
|
| Operating Temperature | -20~60C |
| Storage Temperature | -30~90C |
| Operating Ambient Humidity | 10-90%RH |
| Storage Humidity | 10-90%RH |
| Panel Surface Temperature | 80C |
