Brand: Axiomtek

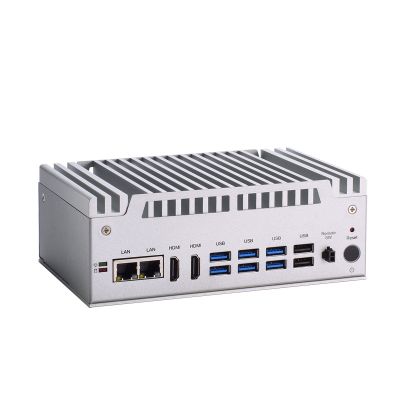

eBOX570 Fanless Embedded System with 13th Gen

In stock

SKU:

eBOX570-13P-Cel/-i5/-i7

Fanless Embedded System with 13th Gen Intel Core i7/i5/Celeron Processor, 2 HDMI, 1 DisplayPort++, 2 LANs, 8 USB, 2 COM, and 12 VDC

Key Features:

13th gen Intel Core processor (Raptor Lake P)
Fanless design with operating temperature from -20°C to 60°C
1 DDR4 SO-DIMM for up to 32GB of memory
Supports the USB power on/off control function
Supports high-speed NVMe storage (M.2 Key M 2280)
Supports Intel® vPro and TPM 2.0

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The eBOX570 is a powerful edge computer specially designed for autonomous mobile robots (AMRs) and automated guided vehicles (AGVs) controllers. This rugged device is powered by the 13th generation Intel® Core™ i7/i5 or Celeron® processors (codename: Raptor Lake P) and features a fanless design with a wide operating temperature range of -40°C to +70°C. With 8 dedicated USB ports that support USB power on/off control, users have plenty of connectivity options for their connected devices. The eBOX570 is compatible with ROS 2 software and seamlessly integrates with various imaging cameras. Its optimized design enables efficient operation and exceptional performance, making it a competitive choice for smart automation applications.

The eBOX570 is a durable computing system that comes with a range of advanced features to enhance your multitasking capabilities and memory performance. It has one 260-pin DDR4-3200 SO-DIMM slot that can support up to 32GB memory capacity. The device also has an M.2 Key M 2280 socket for high-speed NVMe storage, an M.2 Key E 2230 socket for Wi-Fi 6E (PCIe and USB 2.0 signal support), and a full-size PCI Express Mini Card slot (PCIe, USB 2.0, and SIM signal support) for various expansion needs. For better security and remote management, the eBOX570 supports TPM 2.0. You can mount it on a wall, DIN-rail, or VESA, making it versatile and easy to install.

This product is listed in Embedded Computers, Axiomtek

Specifications

CPU	Intel® Core™ i7-1365UE, Core™ i5-1335UE or Celeron® U300E (TDP up to 15W)
Chipset	SoC integrated
System Memory	1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB
BIOS	AMI
COM	2 x RS-232/422/485
USB	4 x USB 3.2 Gen2x1 (10G) type A 2 x USB 3.2 Gen1x1 (5G) type A 2 x USB 2.0
Ethernet/PoE	1 x 10/100/1000 Mbps (Intel® I210-IT) 1 x 10/100/1000 Mbps (Intel® I219-LM, supporting Intel® AMT)
Display	2 x Lockable HDMI 1.4b @30Hz with 4096 x 2160 resolution
Digital I/O	N/A
Audio	N/A
Storage	1 x M.2 Key M 2280 socket (for NVMe storage with PCIe x4 Gen3 or SATA signal, selectable through the BIOS)
Expansion	1 x Full-size PCI Express Mini Card with SIM slot 1 x M.2 Key E 2230 slot (for Wi-Fi)
Others	1 x Power button 1 x Reset switch connector 1 x Remote switch 2 x Antenna Opening TPM 2.0
Power	12 VDC
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Aluminum extrusion heavy-duty cold-rolled steel
Operating Temperature	-20°C to +60°C (-4°F to +140°F) (with W.T. DRAM & SSD, CPU TDP 15W)
Relative Humidity	10% to 95%, non-condensing
Vibration	IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Shock	IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Dimensions (W x D x H)	120 x 178 x 65 mm (4.72" x 7.01" x 2.56")
Weight (net/gross)	2 kg/2.5 kg
Certifications	CE (EN 61000-6-4/EN 61000-6-2), FCC Class A, UKCA
EOS Support	Win 11 IoT, Linux
Software Support	N/A
Mounting	Wall mount kit DIN-rail kit VESA mount kit

Downloads

Datasheet

User Manual

Ordering Information

eBOX570-13P-i7 (P/N-E36K570100)
Fanless embedded system with Intel® Core™ i7-1365UE, 2 HDMI, 2 LANs, 8 USB, 2 COM, and 12 VDC
eBOX570-13P-i5 (P/N-E36K570101)
Fanless embedded system with Intel® Core™ i5-1335UE, 2 HDMI, 2 LANs, 8 USB, 2 COM, and 12 VDC
eBOX570-13P-Cel (P/N-E36K570102)
Fanless embedded system with Intel® Celeron® U300E, 2 HDMI, 2 LANs, 8 USB, 2 COM, and 12 VDC
Wall mount kit E29R129125
DIN-rail kit E29R129126
VESA mount kit 509000004800
