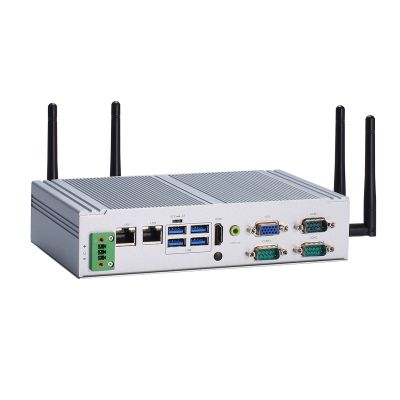

eBOX626A Fanless Embedded System with Celeron J6412
eBOX626A Fanless Embedded System Intel® Celeron J6412 2.5GbE USB 3.1 M.2 2230 Key E
Key Features:
- Intel® Celeron® Processor J6412 quad-core onboard
- -10 °C to +60 °C operating temperature
- 1 HDMI and 1 VGA for dual-view display
- Trusted Platform Module (TPM) 2.0 onboard
- M.2 Key E for WiFi/WiFi 6 connection
- 9-36 VDC Wide range power input
The eBOX626 Fanless Embedded System Features an Intel® Celeron J6412 2.0 GHz and is equipped with four USB 3.1 ports alongside two LAN connections with 2.5 and 1.0 gigabit speed capabilities. A single DDR4 SO-DIMM socket allows up to 32GB of system memory alongside M.2 and PCI Express Mini interfaces for use with Wi-Fi or SATA expansions.
Key Features:
- Intel® Celeron® Processor J6412 quad-core onboard
- -10 °C to +60 °C operating temperature
- 1 HDMI and 1 VGA for dual-view display
- Trusted Platform Module (TPM) 2.0 onboard
- M.2 Key E for WiFi/WiFi 6 connection
- 9-36 VDC Wide range power input
|
Standard Color |
Silver |
|
Construction |
Aluminum extrusion and heavy-duty steel, IP40 |
|
CPU |
Intel® Celeron® processor J6412, up to 10W |
|
System Memory |
1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB |
|
Chipset |
SoC integrated |
|
BIOS |
AMI |
|
System I/O Outlet |
1 x Audio (Line-out) 1 x HDMI 1.4b (lockable) 1 x VGA 1 x RS-232/422/485 (COM1) 2 x RS-232 (COM2/3) 4 x USB 3.1 Gen2 2 x USB 2.0 1 x 10/100/1000/2500 Mbps Ethernet (Intel® i226-LM) 1 x 10/100/1000 Mbps Ethernet (Intel® i210-AT) 1 x Phoenix type VDC power input connector 1 x ATX power switch 1 x ATX/AT quick switch 1 x Remote power switch 4 x Antenna opening |
|
Watchdog Timer |
255 levels, 1 to 255 sec. |
|
Storage |
1 x 2.5" SATA HDD drive bay (up to 9.5 mm height) 1 x mSATA (enabled in BIOS setting) |
|
Expansion Interface |
1 x Full size internal PCI Express Mini Card slot (mSATA/SIM) (USB + PCIE + SATA) 1 x M.2 2230 Key E (PCIE + USB) |
|
TPM |
TPM 2.0 |
|
System Indicator |
1 x Green LED for system power-on 1 x Yellow LED for HDD/SSD active |
|
Power Supply |
9 to 36 VDC |
|
Operating Temperature |
-10°C to +60°C (+14°F to +140°F) (with W.T. SSD/DRAM) |
|
Humidity |
10% - 95%, non-condensing |
|
Shock Vibration |
IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration) |
|
Vibration Endurance |
IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis) |
|
Dimensions |
200 mm (7.87") (W) x 120 mm (4.72") (D) x 46 mm (1.81") (H) |
|
Weight (net/gross) |
1.2 kg (2.43 lb)/1.8 kg (3.97 lb) |
|
Certifications |
CE, FCC Class A, UKCA |
|
EOS Support |
Win10 IoT, Win11 IoT, Linux |
- eBOX626A-EL-C1 (PN-E36K626A00)
- Fanless Embedded System with Intel® Celeron® J6412 2.0 GHz, HDM, VGA, 6 USB, 2 LAN, 3 COM, and 9 to 36 VDC
