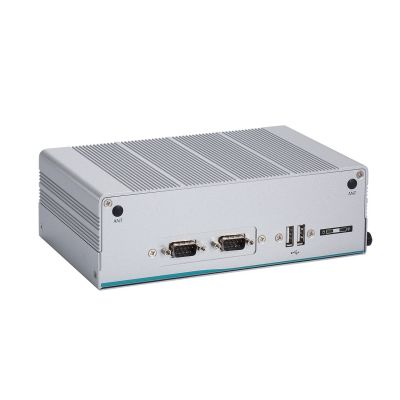

eBOX627-312-FL Pentium N4200 9~36vDC
Fanless Embedded System with Intel® Celeron® N3350 2.4 GHz/Pentium® N4200 2.5 GHz, HDMI, 2 GbE LANs, 6 USB, 4 COM and 9 to 36 VDC
Fanless Embedded System with Intel® Celeron® N3350 2.4 GHz/Pentium® N4200 2.5 GHz, HDMI, 2 GbE LANs, 6 USB, 4 COM and 9 to 36 VDC
● Intel® Celeron® N3350/Pentium® N4200 onboard
● 204-pin DDR3L-1866 SO-DIMM for up to 8GB of memory
● Support HDMI, 2 GbE LANs, 4 COM and 6 USB
● Flexible I/O Window supported
● Trusted Platform Module 1.2 (TPM) 1.2
● -20°C to +70°C operating temperature range
● 9 to 36 VDC wide range DC input
● AXView 2.0 intelligent remote monitoring software for IIoT
|
Standard Color |
Silver |
|
Construction |
Aluminum extrusion and heavy-duty steel, IP40 |
|
CPU |
IntelR CeleronR Processor N3350 2.4 GHz Intel® Pentium® Processor N4200, 2.5 GHz |
|
System Memory |
1 x 204-pin DDR3L-1866 SO-DIMM, up to 8GB |
|
Chipset |
SoC integrated |
|
BIOS |
AMI |
|
System I/O Outlet |
2 x RS-232/422/485 2 x RS-232 1 x HDMI (lockable) 2 x 10/100/1000 Mbps Ethernet (Intel® i211-AT) 2 x USB 2.0 4 x USB 3.0 4 x SMA-type antenna connector 1 x Phoenix type VDC power input connector 1 x AT/ATX switch 1 x ATX power switch 1 x Flexible I/O Window (default : 2 x DB9 half cut bracket) |
|
Watchdog Timer |
65536 levels, 1 to 65535 sec. |
|
Storage |
1 x 2.5” HDD/SSD bay (max. up 9.5 mm height) 1 x mSATA (enabled in BIOS setting) |
|
Expansion Interface |
2 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) 1 x SIM slot |
|
TPM |
TPM 1.2 |
|
System Indicator |
1 x green LED for system power-on 1 x yellow LED for HDD/SSD active |
|
Power Input |
9 to 36 VDC |
|
Operating Temperature |
Turbo Mode -20°C to +65°C (-4°F to +149°F) (with W.T. SSD/DRAM for 9 to 36 VDC) (default) Non-turbo Mode -20°C to +70°C (-4°F to +158°F) (with W.T. SSD/DRAM for 12 or 24 VDC) |
|
Humidity |
10% to 95%, non-condensing |
|
Shock |
IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration) |
|
Dimensions |
200 mm (7.87”) (W) x 120 mm (4.72”) (D) x 65 mm (2.55”) (H) |
|
Weight |
(net/gross) 1.38 kg (3.04 lb)/2.08 kg (4.59 lb) |
|
Certifications |
CE, FCC Class A |
|
EOS support |
Win 10 IoT, Linux, AXView 2.0 |
|
|
|
|
|
|
