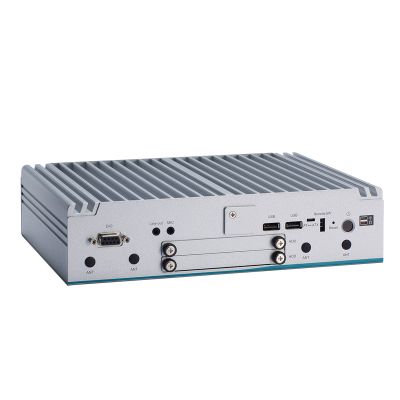

eBOX630A Fanless Embedded System with 11th Gen Core
Fanless Embedded System with 11th Gen Intel Core i7/i5/i3 or Celeron Processor, 2 HDMI, 1 DisplayPort, 3 LANs, 6 USB, 4 COM, and 9 to 48 VDC
Key Features:
- 11th gen Intel Core i7/i5/i3 or Celeron Quad-core ULT processor (Tiger Lake UP3)
- Dual-channel DDR4-3200 SO-DIMM for up to 64GB of memory
- Supports 3x 2.5 GbE, 6 USB, 4 COM
- -40°C to +60°C wide operating temperatures
- 9 to 48 VDC wide range DC power input
- Supports triple displays with 2 HDMI, and 1 DisplayPort++
- Intel Iris Xe integrated graphics (i7 & i5 SKUs)
- Trusted platform module (TPM 2.0 onboard)
The eBOX630A is a fanless embedded system powered by an 11th generation Intel Core i7/i5/i3 or Celeron processor. The IP40-rated heavy-duty aluminium extrusion and steel case of the rugged embedded system. With an operating temperature range of -40°C to +60°C and vibration endurance of up to 3G, the industrial-grade eBOX630A can operate in harsh environments. Because of the 9 to 48 VDC power input, it can be used to improve AI inference capabilities in factory automation. The feature-rich, highly customizable, and simple-to-deploy eBOX630A is an ideal solution for a wide range of AIoT applications such as edge computing, machine vision, deep learning, and robotic control.
The dependable eBOX630A has dual 260-pin DDR4-3200 SO-DIMM slots that can hold up to 64GB of system memory. It has two 2.5" SATA HDD/SSD drive bays for large amounts of storage. It also includes a full-size PCI Express Mini Card slot and a SIM card slot for wireless communication. The eBOX630A has onboard TPM 2.0 to emphasise the foundation for a hardware root of trust. The eBOX630A is compatible with both Windows 10 IoT and Linux operating systems.
Key Features:
- 11th gen Intel Core i7/i5/i3 or Celeron Quad-core ULT processor (Tiger Lake UP3)
- Dual-channel DDR4-3200 SO-DIMM for up to 64GB of memory
- Supports 3x 2.5 GbE, 6 USB, 4 COM
- -40°C to +60°C wide operating temperatures
- 9 to 48 VDC wide range DC power input
- Supports triple displays with 2 HDMI, and 1 DisplayPort++
- Intel Iris Xe integrated graphics (i7 & i5 SKUs)
- Trusted platform module (TPM 2.0 onboard)
| CPU |
|
| Chipset |
|
| System Memory |
|
| BIOS |
|
| COM |
|
| USB |
|
| Ethernet/PoE |
|
| Display |
|
| Digital I/O |
|
| Audio |
|
| Storage |
|
| Expansion |
|
| Others |
|
| Power |
|
| Watchdog Timer |
|
| Construction |
|
| Operating Temperature |
|
| Relative Humidity |
|
| Vibration |
|
| Shock |
|
| Dimensions (W x D x H) |
|
| Weight (net/gross) |
|
| Certifications |
|
| EOS Support |
|
| Software Support |
|
| Mounting |
|
