Brand: Axiomtek

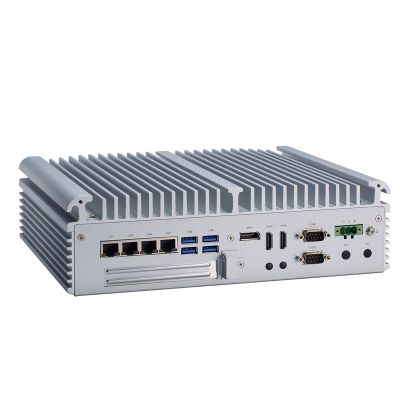

eBOX710A Fanless Embedded System 11th/10th Gen

In stock

SKU:

eBOX710A-CML-PCIe

Fanless Embedded System with LGA1200 Socket 11th/10th Gen Intel Core i9/i7/i5/i3 or Celeron Processor, Intel H420E, HDMI, DisplayPort, 6 USB, 4 LAN, PCIe x4 slot, and 9 to 48 VDC

Key Features:

10th/11th gen Intel Core i9/i7/i5/i3 or Celeron processor up to 65W
4 GbE LAN and 4 COM ports
Dual 2.5" SATA HDD drive bays
2 HDMI and 1 DisplayPort with dual view supported
-40 °C to +70 °C wide operating temperatures
Wide range power input from 9 to 48 VDC
1 PCIe x4 slot for I/O card
Flexible I/O window slot for mPCIe modules

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The high-performance 11th/10th generation Intel Core i9/i7/i5/i3 or Celeron processor (code name: Comet Lake-S) with the Intel H420E chipset powers the eBOX710A. With a wide operating temperature range of -40°C to +70°C, vibration endurance of up to 3G, and 9 to 48 VDC power input, the IP40-rated embedded box PC is designed to operate reliably in industrial environments. The tough eBOX710A has one PCIe x4 expansion slot, making it ideal for machine learning, deep learning, robotic control, edge computing, and other AIoT applications.

Key Features:

10th/11th gen Intel Core i9/i7/i5/i3 or Celeron processor up to 65W
4 GbE LAN and 4 COM ports
Dual 2.5" SATA HDD drive bays
2 HDMI and 1 DisplayPort with dual view supported
-40 °C to +70 °C wide operating temperatures
Wide range power input from 9 to 48 VDC
1 PCIe x4 slot for I/O card
Flexible I/O window slot for mPCIe modules

This product is listed in Embedded Computers, Axiomtek, Industrial Automation

Specifications

CPU	LGA1200 socket 11th/10th gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor (35W/65W)
Chipset	Intel® H420E
System Memory	2 x 260 pin DDR4-2933 non-ECC SO-DIMM, up to 64GB
BIOS	AMI
COM	2 x RS-232 2 x RS-232/422/485
USB	5 x USB 3.2 Gen1 1 x USB 2.0
Ethernet/PoE	4 x 10/100/1000 Mbps Ethernet (3 x Intel® I210-IT, 1 x Intel® I219-LM)
Display	2 x HDMI 1.4b (lockable) 1 x DisplayPort 1.2 ++
Digital I/O	N/A
Audio	N/A
Storage	2 x 2.5” SATA HDD/SSD (up to 15 mm height) 2 x mSATA (enabled in BIOS setting)
Expansion	2 x Full-size PCI Express Mini Card slot (USB + PCIe + SATA signal) 1 x M.2 Key B 3050 (for 5G; USB signal) 1 x Front-access SIM slot with cover (for M.2 Key B) 1 x Internal SIM slot with PCIe Mini Card slot 1 x PCIe x4 slot
Others	TPM 2.0 1 x AT/ATX quick switch 1 x Remote switch 2 x Antenna opening 1 x Grounding
Power	9 to 48 VDC
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Aluminium extrusion and heavy-duty steel, IP40
Operating Temperature	-40°C to +70°C (-40°F to +158°F) with 0.7 m/s air flow (CPU TDP 35W) -40°C to +60°C (-40°F to +158°F) with 0.7 m/s air flow (CPU TDP 65W)(with W.T. DRAM & SSD)
Relative Humidity	10% - 90%, non-condensing
Vibration	IEC 60068-2-64 (w/ SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)
Shock	IEC 60068-2-27 (w/ SSD: 50G, half-sine, 11 ms duration)
Dimensions (W x D x H)	280 x 210 x 80.5mm (11.02" x 8.26" x 3.16")
Weight (net/gross)	4.9 kg (10.8 lb)/7 kg (15.43 lb)
Certifications	CE, FCC Class A
EOS Support	Win 11 IoT, Linux
Software Support	N/A
Mounting	Wall mount kit DIN-rail kit

Downloads

Datasheet

User Manual

Ordering Information

eBOX710A-CML-PCIe (P/N-E36K710A00)
Fanless embedded system with LGA1200 socket 11th/10th gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor, Intel® H420E, 2 HDMI, DisplayPort, 6 USB, 4 LAN, PCIe x4 slot, and 9 to 48 VDC
