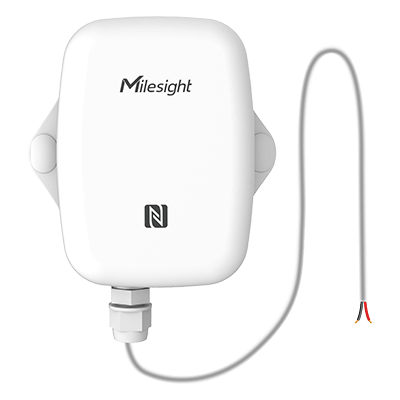

EM300 DI LoRaWAN Pulse Counter
Milesight LoRaWAN Pulse Counter Embedded with 2 Sensors IP67 Waterproof Ultra-Low Power Consumption
Key Features:
- Flexible counting configuration to enable, stop, clear accumulated values
- Support digital filtering that filters interference signals to ensure more accurate counters
- Embedded with temperature and humidity sensors for environment monitoring
- IP67 waterproof enclosure for harsh environment applications
- Ultra-wide-distance transmission up to line of sight of 10km
- Store more than 2200 historical records and support retransmission to prevent data loss
- A built-in 4000 mAh replaceable battery and works for 5 years without replacement
- Equipped with NFC for easily configuration
- Compliant with standard LoRaWAN gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution
The EM300-DI is a small LoRaWAN pulse counter that converts traditional water metres into wireless smart metres. Its IP67 waterproof design makes it suitable for use in a variety of harsh application environments.
It has a built-in high-capacity battery that will last for several years without needing to be replaced, in addition to LoRaWAN technology with low power consumption. Furthermore, the EM300-DI is compatible with both the Milesight LoRaWAN gateway and the Milesight IoT Cloud, allowing for remote monitoring and visualised smart data management to achieve the goal of water conservation. It is appropriate for both indoor and outdoor applications such as agricultural irrigation, industrial water use, property metre reading, and a variety of other scenarios.
Key Features:
- Flexible counting configuration to enable, stop, clear accumulated values
- Support digital filtering that filters interference signals to ensure more accurate counters
- Embedded with temperature and humidity sensors for environment monitoring
- IP67 waterproof enclosure for harsh environment applications
- Ultra-wide-distance transmission up to line of sight of 10km
- Store more than 2200 historical records and support retransmission to prevent data loss
- A built-in 4000 mAh replaceable battery and works for 5 years without replacement
- Equipped with NFC for easily configuration
- Compliant with standard LoRaWAN gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution
| Wireless Transmission | Technology | LoRaWAN® | |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 | ||
| Tx Power | 16dBm(868)/20dBm(915)/19dBm(470) | ||
| Sensitivity | -137dBm @300bps | ||
| Mode | OTAA/ABP Class A | ||
| Measurement | GPIO | Port | 1 × GPIO Interface, Dry Contact |
| Work Mode | Pulse Counter, Digital Input | ||
| Cable Length | 1 m (Customizable) | ||
| Applicable Meters | Reed switches meters or any other passive pulse meters | ||
| Temperature | Range | -30°C to + 70°C | |
| Accuracy | 0°C to + 70°C (+/- 0.3°C), -30°C to 0°C (+/- 0.6°C) | ||
| Resolution | 0.1°C | ||
| Humidity | Range | 0% to 100% RH | |
| Accuracy | 10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%) | ||
| Resolution | 0.5% RH | ||
| Operation | Power On & Off | NFC, Power Button (Internal) | |
| Configuration | NFC Configuration via Mobile App | ||
| Physical Characteristics | Power Supply | 1 × 4000 mAh ER18505 Li-SOCL2 Battery (extendable to 2 batteries) | |
| Battery Life* | 5 years (10 min interval + 12 pulse counts per day) | ||
| Operating Temperature | -30°C to +70°C | ||
| Relative Humidity | ≤95% (non-condensing) | ||
| ABS + PC, White | |||
| Ingress Protection | IP67 | ||
| Dimension | 105.6 × 85.2 × 27 mm (4.15 × 3.35 × 1.06 in) | ||
| Installation | Screw Mounting | ||
