EM410-RDL LoRaWAN Radar Distance/Level Sensor
The Precisionist in Measurement
Key Features:
- Accurate Detection with Millimeter Wave Radar
- Impressive IP68 Rating
- Application Scenario Mode
- Long Battery Life of Up to 7 Years
- Easy NFC & Bluetooth Configuration
- LoRaWAN® Wireless Deployment
- Scenario-based Automated Calibration
- 8° Radar Emission Angle
Radar Technology for Tailored Applications
Aside from its extensive measurement distance, radar technology is also capable of measuring through objects, including plastics, and plants, and is less sensitive to snow, dirt, dust, steam and more, making it suitable for a wider range of applications.
Easy Setup and Adjustments
Application Scenario Mode
A choice of standard, rainwater well and sewage well mode for easy scenario setup
Built-in Tilt Sensor
Allows level measurement at a tilted angle and sends timely alerts when the device has been accidentally dislocated.
|
Measurement |
|
|---|---|
|
Distance |
|
|
Technology |
Millimeter Wave Radar |
|
Target |
Liquids or Smooth Surface Solid |
|
Radar Frequency Band |
60GHz |
|
Detection Angle |
8° |
|
Detection Distance |
0.3m ~ 12m |
|
Accuracy |
Up to ± 2mm1 |
|
Resolution |
1mm |
|
Device Position |
|
|
Status |
Normal/Tilt |
|
Wireless Transmission |
|
|
LoRaWAN® Version |
|
|
Frequency |
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
|
Tx Power |
16 dBm (868 MHz)/20 dBm (915MHz)/19 dBm (470MHz) |
|
Sensitivity |
-137dBm @300bps |
|
Mode |
OTAA/ABP Class A |
|
Antenna |

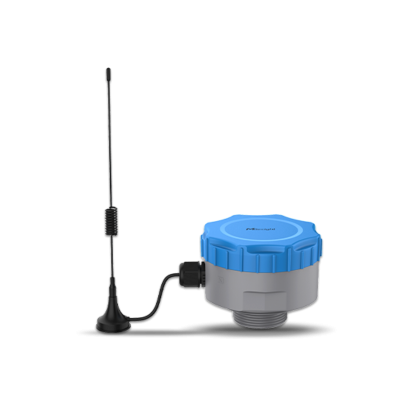

Internal Antenna or External Antenna (Hardware Optional) External Antenna (EA) Version: 1 × 50 Ω SMB Male Connector |
|
Cellular Version |
|
|
Frequency Band |
LTE (CAT 1): B1/B3/B5/B7/B8/B20/B28 for EMEA/Australia/New Zealand |
|
SIM Slot |
1 x Nano SIM (4FF) Slot |
|
Application Mode |
TCP/UDP/MQTT/AWS/Milesight Development Platform |
|
Antenna |
Internal Antenna or External Antenna (Hardware Optional) External Antenna (EA) Version: 1 × 50 Ω SMB Male Connector |
|
Others |
|
|
LED Indicator |
1 × LED indicator (Internal) |
|
Configuration |
Mobile App via NFC or Bluetooth |
|
Advanced Feature |
Distance Threshold Alarm, Distance Change Alarm, Blind Zone Alarm, Radar-echo Curve, Diagnostic, Data Storage, Data Retransmission, Data Retrievability |
|
Physical Characteristics |
|
|
Power Supply |
1 × 19000 mAh ER34615 Li-SOCL2 Battery |
|
Battery Life2 |
LoRaWAN® Version: Around 7 Years Cellular Version: Around 5 Years (15-min collection Interval+1440-report interval, 25°C) |
|
Operating Temperature |
-40°C ~ 70°C |
|
Relative Humidity |
0 ~ 100% (non-condensing) |
|
Ingress Protection |
IP68 (1m underwater, 48 hours) |
|
Dimension |
Ф 100 × 92.2 mm (Ф 3.94 × 3.63 in) |
|
Weight |
400g |
|
Color & Material |
Blue + Grey, PVDF |
|
Supported Tank Thread |
G1 ½”, G2 ½” |
|
Installation |
Wall Bracket Mounting, Pole Bracket Mounting, Tank Threaded Installation |
1 Perfectly smooth flat-surfaced solid, or still liquid surface.
2 Tested under laboratory conditions and for guideline purposes only.
