F108D Booksize Fanless Signage Player 4K Display
Compact, fanless Intel Alder Lake-N powered PC for digital signage and kiosks. Features versatile I/O ports, high-quality graphics, and reliable operation in mission-critical scenarios.
Key Features:
- Powered by Intel® Alder Lake-N processors (6-15W) for low-power efficiency.
- Book-size design tailored for digital signage and kiosk applications.
- Rich I/O ports, including dual COM ports, 6 USB Type-A, and dual LAN ports.
- Easily integrates into vending machines, self-service kiosks, and check-in kiosks.
- Intel® UHD Graphics with DP and two HDMI ports supporting resolutions up to 4096 x 2160@60Hz.
- Fanless design with passive thermal cooling for noise-free and dustproof operation.
- Ideal for mission-critical applications with reduced failure rates.

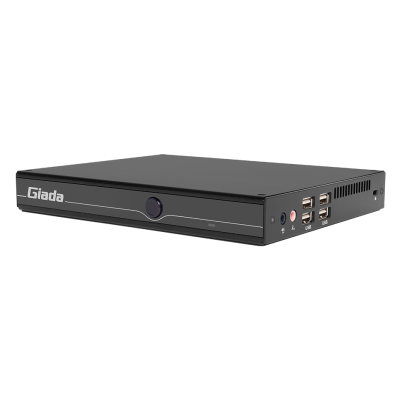

Giada F108D is a book-size embedded PC that incorporates Intel® Alder Lake-N processors, providing a low-power range of 6-15W. Specifically designed for digital signage and kiosk applications, this slim and versatile device offers a range of features to meet the demands of various applications.
Robust I/O Ports for Seamless Integration
The F108D is equipped with a comprehensive set of I/O ports, ensuring seamless integration into diverse environments. Key features include:
- Dual COM ports
- 6 USB Type-A ports
- Dual LAN ports
This versatility makes the embedded PC an ideal choice for integration into vending machines, self-service kiosks, and check-in kiosks.
High-Quality Graphics for Exceptional Display
The digital signage player within the F108D adopts Intel® UHD Graphics, enhancing the visual experience. It boasts a display interface that includes a DP (DisplayPort) and two HDMI ports, supporting resolutions up to 4096 x 2160@60Hz. This ensures crisp and vibrant visuals for a wide range of applications.
Efficient Thermal Cooling for Reliability
Featuring a passive thermal cooling system, the F108D employs a fanless design that significantly reduces the failure rate of the device. This not only enhances reliability but also ensures noise-free and dustproof operation. The efficient cooling system makes the Giada F108D suitable for mission-critical applications where continuous and reliable performance is essential.
With its powerful processor, extensive I/O ports, high-quality graphics, and reliable thermal management, the Giada F108D stands out as an excellent choice for digital signage and kiosk applications. Whether deployed in vending machines or mission-critical environments, this embedded PC delivers a robust and efficient solution for a variety of use cases.
Processor |
CPU |
Intel® Processor N100 (Fanless) Intel® Processor N95
|
|
Turbo Frequency |
3.40 GHz/3.40 GHz |
|
|
Chipset |
SoC |
|
|
Processing Units |
4 Cores/4 Cores |
|
|
TDP |
6 W/15 W |
|
Memory |
Size |
Up to 16 GB |
|
Type |
1 x SO-DIMM DDR4-3200 MHz |
|
Storage |
Socket 1 |
1 x M-Key M.2 (2280) for PCIe3.0 X4 SSD |
Display |
GPU |
Intel® UHD Graphics |
|
Graphic Engine |
DirectX 12.1, OpenGL 4.6, OpenCL 3.0 |
|
|
Display Interface |
1 x DP (Max.4096 x 2160 @60Hz) 2 x HDMI (Max.4096 x 2160 @60Hz) |
|
Network |
Network Controller |
2 x Realtek RTL 8111H Gigabit Ethernet |
|
Ethernet Interface |
2 x RJ45 (Optional: 1 x RJ45) |
|
|
Wi-Fi/BT |
1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6 |
|
|
Mobile Network |
1 x B-Key M.2 (3042) for 3G/4G
1 x SIM Slot |
|
I/O interface |
USB |
2 x USB3.2 Gen2, 4 x USB2.0 |
|
Serial Port |
2 x RS232 |
|
|
Audio |
1 x MIC-IN, 1 x AUDIO-OUT |
|
|
Button |
1 x Power on, 1 x CLR-CMOS |
|
|
Antenna |
2 x Connector for Wi-Fi/BT |
|
System |
TPM |
Optional: TPM2.0 |
|
Watchdog Timer |
Yes |
|
|
Auto Power On |
Yes |
|
|
RTC |
Set up independently every day, a week as a cycle |
|
|
Power Requirement |
DC-IN, 19 V/2.37 A |
|
|
Dimensions |
189.6mm x 148.3mm x 26mm (7.46” x 5.83” x 1.02”) |
|
|
Construction |
Metal, Black |
|
|
Operating System |
Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit) |
|
|
Operating Temperature |
0°C ~45°C (32°F~113°F) @0.7m/s Air Flow |
|
|
Humidity |
95% @ 45°C (non-condensing) |
|
|
Certifications |
CE, FCC Class B, UKCA |
- Intel N95/N100 Processors
- 2 x HDMI 2.0, 1 x DP, 2 x LAN
- Fanless, 0°C ~45°C
