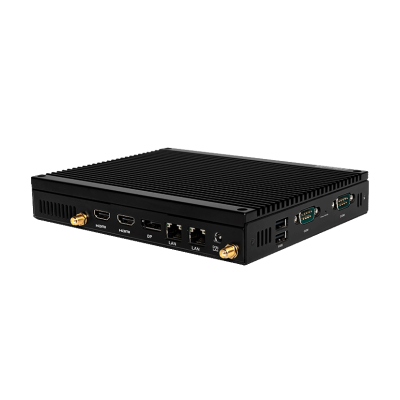

F109D Booksize Fanless Player with Intel N97/N150
Booksize, Fanless Player with Intel Twin Lake Inside, Support 4K Display
Key Features:
- Intel® Twin N-series processors
- 1 x DP (Max. 4096x 2160 @60 Hz)
- 2 x HDMI (Max. 4096 x 2160 @60 Hz)
- Support Wi-Fi/BT module
- Support 3G/4G module
- Fanless design
Intel® Twin Lake Processors
Giada F109D adopts Intel® Twin Lake processors, featuring a low-power range from 6-15W. The book-size embedded PC is specially designed for digital signage and kiosk applications

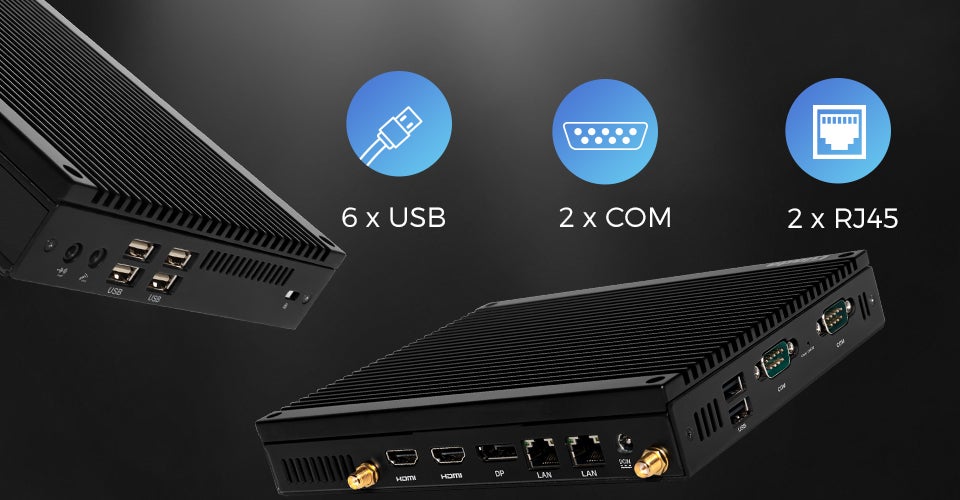

Rich I/O Ports
The slim embedded PC supports rich I/O ports, including dual COM ports, and 6 USB Type-A and dual LAN ports. It can be easily integrated into vending machines, self-service and check-in kiosks
Supporting 3 Display Outputs
The digital signage player adopts Intel® UHD Graphics. It has a DP and two HDMI ports, supporting resolutions up to 4096 x 2160@60Hz
Fanless Design
With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device noise-free and dustproof. It enables this Giada device to be applicable in mission-critical applications.
|
Processor |
CPU |
Intel® Processor N150 Intel® Processor N97
|
|
Turbo Frequency |
3.60 GHz/3.60 GHz |
|
|
Chipset |
SoC |
|
|
Processing Units |
4 Cores/4 Cores |
|
|
TDP |
6 W/12 W |
|
|
Memory |
Size |
Up to 16 GB |
|
Type |
1 x SO-DIMM DDR5-4800 MHz |
|
|
Storage |
Socket 1 |
1 x M-Key M.2 (2280) for PCIe3.0 X4 SSD Optional: Onboard eMMC |
|
Display |
GPU |
Intel® UHD Graphics |
|
Graphic Engine |
DirectX 12.1, OpenGL 4.6, OpenCL 3.0 |
|
|
Display Interface |
1 x DP (Max.4096 x 2160 @60Hz) 2 x HDMI (Max.4096 x 2160 @60Hz) |
|
|
Network |
Network Controller |
2 x Realtek RTL 8111H Gigabit Ethernet |
|
Ethernet Interface |
2 x RJ45 (Optional: 1 x RJ45) |
|
|
Wi-Fi/BT |
1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6 |
|
|
Mobile Network |
1 x B-Key M.2 (3042) for 3G/4G
1 x SIM Slot |
|
|
I/O interface |
USB |
2 x USB3.2 Gen2, 4 x USB2.0 |
|
Serial Port |
2 x RS232 |
|
|
Audio |
1 x MIC-IN, 1 x AUDIO-OUT |
|
|
Button |
1 x Power on, 1 x CLR-CMOS |
|
|
Antenna |
2 x Connector for Wi-Fi/BT |
|
|
System |
TPM |
Optional: TPM2.0 |
|
Watchdog Timer |
Yes |
|
|
Auto Power On |
Yes |
|
|
RTC |
Set up independently every day, a week as a cycle |
|
|
Power Requirement |
DC-IN, 19 V/2.37 A |
|
|
Dimensions |
189.6mm x 148.3mm x 31.7mm (7.46” x 5.83” x 1.25”) |
|
|
Construction |
Metal, Black |
|
|
Operating System |
Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit) |
|
|
Operating Temperature |
0°C ~45°C (32°F~113°F) @0.7m/s Air Flow |
|
|
Humidity |
95% @ 45°C (non-condensing) |
|
|
Certifications |
CE, FCC Class B, UKCA |
F109D-N15050N0G-GIA CPU: Intel® Processor N150
F109D-N9750N0G-GIA CPU: Intel® Processor N97
