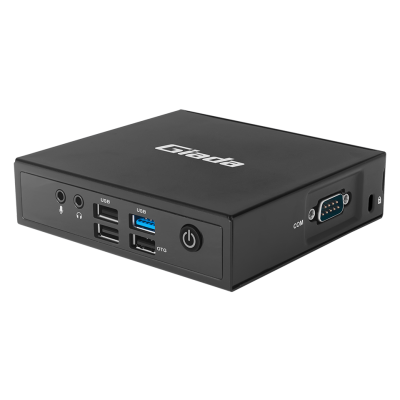

DN73 RK3328 Quad-core Android Digital Signage Player
Android 10 Player with RK3328, Supports 4K Display
Key Features:
- Rockchip RK3328 processor
- 1 x HDMI (3840 x 2160 @60 Hz)
- Onboard Wi-Fi/BT module
- Support 3G/4G module
- Fanless design
RK3328 Quad-core Processor Competitive Price
The ultra-compact Android player is equipped with a Quad-core Cortex-A53 processor. It supports onboard dual-channel LPDDR4 memory, onboard eMMC5.1 storage, and onboard dual-band WiFi and Bluetooth 4.2.
Single Display Output
The player adopts Rockchip's integrated Mali-450MP2 GPU and supports 1 x HDMI 2.0 (Max. 3840 x 2160 @ 60 Hz).
Fanless Design
With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running noise-free and dustproof. It enables this Giada® device applicable in mission-critical applications.
|
CPU |
CPU |
Rockchip RK3328 |
|
Frequency |
1.50 GHz |
|
|
Processing Units |
4 Cores |
|
|
TDP |
6 W |
|
|
Memory |
Size |
2 GB |
|
Type |
Onboard DDR4-2133 MHz |
|
|
Storage |
Onboard |
32 GB, Onboard eMMC (Optional: 64 GB) |
|
Socket |
1 x TF Card reader |
|
|
Display |
GPU |
Mali-450MP2 |
|
Graphic Engine |
OpenGL ES1.1/2.0 |
|
|
Multi-Media |
4K VP9 decoders |
|
|
Display Interface |
1 x HDMI (Max.3840 x 2160 @60 Hz) |
|
|
Network |
Network Controller |
1 x Realtek RTL8211E PHY |
|
Ethernet Interface |
1 x RJ45 |
|
|
Wi-Fi/BT |
Onboard Wi-Fi/BT module |
|
|
Mobile Network |
1 x Full-size Mini-PCIe for 3G/4G 1 x SIM Slot |
|
|
I/O interface |
USB |
1 x USB3.2 Gen1, |
|
Serial Port |
1 x RS232 |
|
|
Audio |
1 x MIC-IN, 1 x AUDIO-OUT |
|
|
Button |
1 x Power on, 1 x Recovery |
|
|
Antenna |
1 x Connector for Wi-Fi/BT, |
|
|
System |
Watchdog Timer |
NA |
|
Auto Power On |
Yes |
|
|
RTC |
Set up independently every day, a week as a cycle |
|
|
Power Requirement |
DC-IN, 12 V/2.08 A |
|
|
Dimensions |
116 mm x 106 mm x 30 mm (4.57” x 4.17” x 1.18”) |
|
|
Construction |
Metal, Black |
|
|
Operating System |
Android 7.1/Android 10 |
|
|
Operating Temperature |
0°C ~40°C (32°F~104°F) @0.7m/s Air Flow |
|
|
Humidity |
95% @ 40°C (non-condensing) |
|
|
Certifications |
CE, FCC Class B, UKCA |
|
Part Number |
Description |
| DN73-N3-3328R41E5-GIA | DN73 Android 10 Player, RK3328 Inside, Supports 4K Display |
