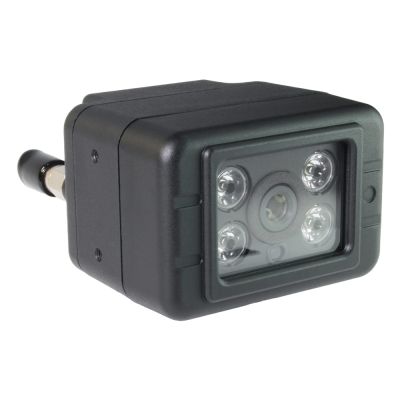

GPCL-A2GN 2MP IP Mobile LPR Camera
2MP H.264 POE IP68 8mm IR 10m (8mm/16mm/25mm lens)
1/2.7” 2MP CMOS Sensor
Up to 1920x1080
Support 60fps@1280x0720
H.264, MJPEG
Support RTSP, OnVIF
Support PoE
IP 68 rated
Nitrogen filled-in
850nm 4 Power IR LED
-10~60°C
** 8mm, 12mm, 16mm and 25mm lens options
|
CAMERA |
|
|
Lens |
8mm -Viewing Angle:45(D)°x 36(H)°x 27(V)° 25mm -Viewing Angle:13.8(D)°x 11(H)°x 8.3(V)° |
|
Image Sensor |
1/2.7” 2.1Megapixel Progressive CMOS Sensor |
|
Number of Effective Pixels |
1920(H) x 1080(V) approx. 2.0M pixels |
|
Min. Illumination |
Color Mode: 0.2 Lux |
|
B/W Mode: 0.02 Lux |
|
|
Scanning Mode |
Progressive Scan |
|
Day and Night Mode |
Automatic, Day, Night, 4 IR LED |
|
Auto Exposure Mode |
Automatic, Manual |
|
Shutter Speed Control |
1/25 ~ 1/10,000 |
|
Auto White Balance Mode |
Automatic, Manual |
|
Digital Zoom |
Yes by on-screen |
|
Back Light Compensation |
OFF/HLC/BLC/WDR( <30FPS ) |
|
DNR |
OFF/LOW/MIDDLE/HIGH |
|
Image Effect |
Mirror, Flip |
|
Privacy Mask |
1 Area Selection |
|
Video Motion Detection |
1 Area Selection (8 *10=80 AREA) |
|
Lens Shading |
ON/OFF |
|
ACE |
OFF/LOW/MIDDLE/HIGH |
|
Motion |
ON/OFF |
|
Audio |
G.711 |
