Brand: GPI Korea

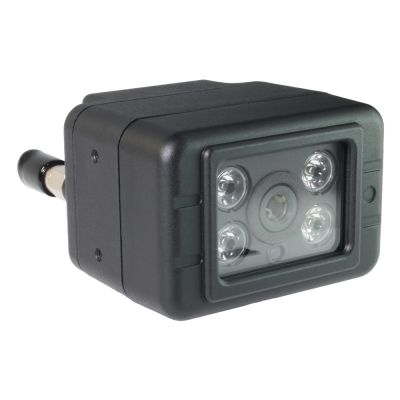

GPCL-675A1GN 5MP Outdoor Mobile POE IP68 Camera
In stock
SKU:
GPCL-675A1GN
5MP Outdoor Mobile POE IP Camera
Key Features:
- 1/2.8" 5.14M Sony CMOS sensor
- 2.8mm Fixed Lens
- Quadruple Streaming
- Max. 30fps @ 5M (2592x1944)
- H.265, H264 or MJPEG
- Various Backlight modes of WDR, BLC, HLC
- ONVIF Profile S
- Support RTSP
- Support PoE
- IP 68 rated
- Nitrogen filled-in
Enquire Now
Enquire Now
High-quality outdoor IP camera which is equipped with 5.14MP (effective pixel) Progressive Scan CMOS image Sensor. With the highest sensitivity sensor, it is especially superior in low light condition. As it supports simultaneous H.265, H.264 and MJPEG Video Compression, less network bandwidth and storage space required. It also delivers high quality video image at 30fps@5M(2592x1944) in progressive mode.
It is the best camera designed for IP68 waterproof and dustproof conditions so that it can be installed outside heavy equipment or commercial vehicles and can operate without any problems even in very poor conditions such as snow, rain, and direct sunlight.
| CAMERA | |
| Lens | 2.8mm (Viewing Angle 140° x 115.4° x 62.9°) |
| Image Sensor | Diagonal 6.52 mm (Type 1 / 2.8”) CMOS active pixel type solid-state image sensor with a square pixel array |
| Number of Effective Pixels | 5.14 M effective pixels |
| Min. Illumination | Color Mode: 0.1 Lux |
| Scanning Mode | Progressive Scan |
| NETWORK | |
| Video Compression | H.265, H.264, Motion JPEG |
| Video Resolution | 30 FPS(5M-16:19) : 2592x1944, 1920x1080, 1280x1024, 1280x720, 704x480,640x480, 320x240 |
| Frame rate | Primary up to 30fps @ 2592x1944 |
| Video Streaming | Motion JPEG and H.264/265 Triple Streaming (Simultaneously)Additional JPEG streaming (total quadruple streaming)Independently Controllable frame rate and bandwidth |
| Time Stamp | Supported (Date/Time Only) in primary stream |
| Image setting | Compression levels: 6 level Low Compression, Highest, High, Normal, Low, LowestColor: color, black & white |
| LAN interface | 10/100BaseT Ethernet auto sensing |
| Built-in Motiondetections | Up to 4 zonesMotion Sensitivity : 0 ~ 100 : 100 is hypersensitive |
| Simultaneous clients | Live-cast for up to 16 clients |
| Web browsing | Video access from Web browser |
| Developer support | Provides HTTP CGI API, ActiveX control development kit |
| Supported protocols | HTTP, RTP/RTSP(Uni/Multicast), TCP/IP(v4/v6), UDP, FTP, Telnet, HTTPS,RARP, PPPoE, SNMP, PAP, CHAP, DHCP, NTP, SMTP client, uPnP & etc |
| OPERATION ENVIRONMENTS | |
| Operating Temperature | -20℃~ + 70℃ |
| Power | PoE |
| IP Rating | IP68 |
| Power Consumption | 2.1W |
