Brand: GPI Korea

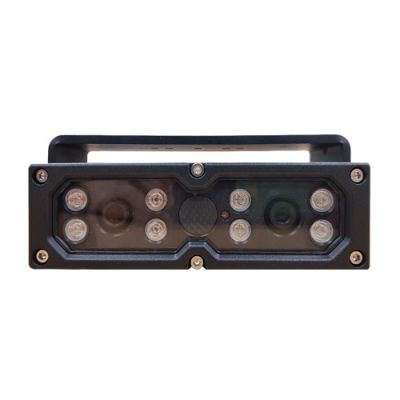

GPCL-E1P 2MP Dual Rolling Shutter Mobile IP68 IP Camera
Out of stock
SKU:
GPCL-0806E1P / GPCL-1208E1P / GPCL-1612E1P
Rolling Shutter IP Camera for LPR & Overview / AI / 2MP / IP68 / PoE+
Key Features:
- 1/2.8” 2.13MP Sony Starvis CMOS Sensor for BW & Color (Overview)
- 1.2Tops NPU Built-in
- - Supports vehicle detection, human detection, parking detection
- - Support AI Open SDK for the simple AI software
- Individual shutter speed and AEW setting for Day mode and Night mode
- Up to 60fps@1920x1080
- Day & Night function (ICR)
- OnVIF profiles S, RTSP
- IP68 Rated
- Nitrogen filled-in for dustproof & moisture-proof
- PoE + (IEEE802.3at)
Enquire Now
Enquire Now
The IP Dual Lens LPR camera assists law enforcement, parking, and other authorities to track and capture license plates. Color and B/W sensors and IR illuminators are built into a rugged and compact housing. Rated IP68 and nitrogenfilled to operate and withstand the harshest conditions 8 high-power LEDs detect virtually all kinds of reflective and non-reflective license plates. IP-based using OnVIF for effective interoperability. Power-over-Ethernet (POE+) interface allows a single wire connection for both data Transfer and power transmission.
| Item | LPR Camera (B/W) | Overview camera (Color) |
| CAMERA | ||
| Image Sensor | 1/2.8” 2.13MP Sony Starvis PS CMOS Sensor | |
| Number of Effective Pixels | 1920(H) x 1080(V) approx. 2.07 M pixels | |
| NPU | 1.2Tops | |
| Streaming | Quadruple streaming | |
| Lens / FOV | 8mm / 47.0°(D) x 38.0°(H) x 22.0°(V)12mm / 31.0°(D) x 26.0°(H) x 15.0°(V) 16mm / 25.0°(D) x 23.9°(H) x 13.5°(V) | 6mm / 60.4°(D) x 52.8°(H) x 30.3°(V)8mm / 47.0°(D) x 38.0°(H) x 22.0°(V)12mm / 31.0°(D) x 26.0°(H) x 15.0°(V) |
| IR LED | 8pcs, 855nm IR LEDs | |
| Compression | H.265, H.264, M-JPEG, JPEG | |
| Resolution | 30 FPS@1920x1080, 1280x1024, 1280x720, 704x480, 640x480, 320x240 | |
| Max. Frame Rate | 60fps, 50fps (1080P) | |
| Frequency Control | 60hz, 50hz | |
| Privacy Masking | 8 privacy zone | |
| Motion Detection | Up to 4 area | |
| Day & Night | True Day & Night (ICR) | |
| White Balance | Auto, Preset, Manual | |
| Image Adjustment | Sharpness, Gamma, Mirror, Flip, Contrast | |
| Shutter Speed | Auto, Fricker, Manual(1/30~1/30000), | |
| Sense-up | off, 2x, 4x, 8x, 16x, 32x | |
| Flip | Flip (On, Off), Horizontal (On, Off) | |
| NETWORK | ||
| LAN | Camera 10/100-base-T / output Gigabit | |
| Protocol | HTTP, RTP/RTSP (Uni/Multicast), TCP/IP (v4/v6),UDP, FTP, Telnet, HTTPS, RARP, SNMP (option), DHCP, NTP, SMTP client, uPnP & etc | |
| Standard | ONVIF (Profile S) | |
| Bit rate control | CVBR, CBR, VBR | |
| Security | IP Filtering, HTTPS, Encrypted & Basic Authentication,Management White List | |
| Multi Browser | support | |
| OPERATION ENVIRONMENT | ||
| Case | Aluminum | |
| Ingress Protection Degree | IP 68 rated, Nitrogen filled-in | |
| Operating Humidity | 0~80% (non-condensing) | |
| Operating Temperature | -20℃~+70℃ | |
| Power input | PoE+ (IEEE802.3at) | |
| Power Consumption | Max 10W, Average 9.4 W | |
| Dimension/ Weight | 185.5mm(W) x 137.6mm(D) x 53mm(H)/ about 1.6Kg | |
- lGPCL-0806E1P 8mm/6mm Lens
- GPCL-1208E1P 12mm/8mm Lens
- GPCL-1612E1P 16/12mm Lens
