Brand: Panorama Antennas

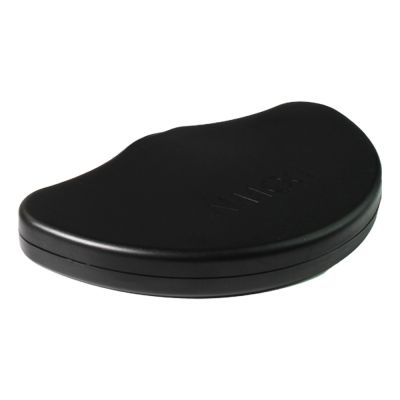

GPSCO-7-27-24-58 Glass Mount LTE/GNSS/Wi-Fi Antenna
In stock
SKU:
GPSCO-7-27-24-58
Dashboard/Windshield 2G/3G/4G LTE + GPS/GNSS Antenna & WiFi
Key Features:
- Compact Design for Easy Installation
- Can be Mounted on or Under the Vehicle Dashboard
- 3-in-1 Cellular + GPS + WiFi Antenna
- Covers all 2G/3G/4G LTE Bands
- Omni-directional and Ground Plane Independent
- Integrated GPS and WiFi Included
- A Plug-and-Play Solution with no Additional Tuning
- Versatile Product for Multiple Applications
$115.00
Enquire Now
Enquire Now
The compact, robust low-profile housing contains an antenna element covering all current global cellular and LTE bands in the freq. range 698-960/1710-3800MHz along with a GPS/GNSS/Galileo/Beidou antenna for applications that require a positioning function.
The antenna can be fitted on or under a vehicle dashboard or on a windshield using the supplied acrylic adhesive sealing pad. Supplied with integrated 3m (10’) cables that are compliant with UN ECE R118 and either SMA plug or FAKRA connectors, the antenna will offer plug-and-play connectivity with many different devices.
Key Features:
- Compact Design for Easy Installation
- Can be Mounted on or Under the Vehicle Dashboard
- 3-in-1 Cellular + GPS + WiFi Antenna
- Covers all 2G/3G/4G LTE Bands
- Omni-directional and Ground Plane Independent
- Integrated GPS and WiFi Included
- A Plug-and-Play Solution with no Additional Tuning
- Versatile Product for Multiple Applications
Applications:
- In-vehicle Connectivity
- Asset Tracking Solution
| Electrical Data | |
| LTE Frequencies | 698-960/1710-3800MHz |
| Global Positioning | GPS / GNSS 1562-1612 |
| Wifi Frequencies | 2.4/5.0GHz |
| Peak Gain (dBi) | 2 |
| Max Input Power (W) | 20 |
| Pattern | Omni-directional |
| Ground Plane Independent | Yes |
| Global Positioning Data | |
| Frequency Range (MHz) | 1562-1612 |
| LNA Gain (dB) | 26dB |
| Mechanical Data | |
| Available Colours | Black |
| Length (mm) | 80 |
| Width (mm) | 131 |
| Height (mm) | 15 |
| Operating Temperature | -30 / + 70°C |
| Mounting Data | |
| Mounting Type | Glass Mount; Dashboard Mount |
| Mounting Method | Adhesive Pad |
