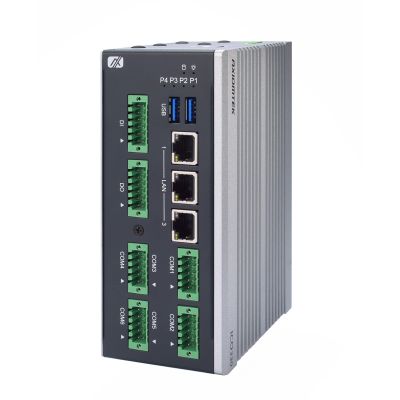

ICO330 DIN-Rail Fanless Embedded System
Intel Atom 3 x 2.5GbE LAN Isolated COM & DIO Fanless System
Key Features:
- Cost-effective with fanless design
- Intel Atom® x6212RE or x6414RE processor
- 6 isolated COM, isolated DIO (8-in/8-out), 3 2.5 GbE LAN
- Wide operating temperature range from -40°C to +70°C
- 9 to 36 VDC, typical 12-24V power input with OVP, UVP, OCP, RPP
- Supports TPM 2.0
- Supports cold boot at -40°C
Axiomtek's ICO330 features an integrated isolation system and modular mechanism design that meets 80% of the environmental requirements of the OT area and reduces customer integration time. At the same time, costs and system sizes are minimized, resulting in significant savings for customers. The ICO330 is powered by an Intel Atom® x6212RE or x6414RE processor. With an extended operating temperature range of -40°C to +70°C and a wide input range of 9V to 36V DC or typically 12/24V, the rugged gateways are ideal for data acquisition and communication.
The ICO330 offers great flexibility with full/thin configuration options. The ICO330 provides 1 isolated DIO and 6 full-featured isolated COM ports (RS-232/422/485). It can also be configured in a slim type with two independent COM ports, Addressing any environmental requirements in the OT area. IP40 rated, the ICO330 comes with a single DDR4-3200 SO-DIMM channel capable of up to 32GB of memory. Additionally, mSATA, an internal 2.5-inch SATA drive, and an integrated 8G eMMC are available to meet a wide range of storage requirements. ICO330 features an M.2 (USB 3.0/PCIe) slot for 5G connectivity and NVMe storage, Rev. 1.2 PCI Express Mini Card (USB/PCIe) slot for Wi-Fi/LTE and half-size Rev. 1.2 PCI Express Mini Card (mSATA/USB) slot for wireless module and mSATA SSD.
Key Features:
● Cost-effective with fanless design
● Intel Atom® x6212RE or x6414RE processor
● 6 isolated COM, isolated DIO (8-in/8-out), 3 2.5 GbE LAN
● Wide operating temperature range from -40°C to +70°C
● 9 to 36 VDC, typical 12-24V power input with OVP, UVP, OCP, RPP
● Supports TPM 2.0
● Supports cold boot at -40°C
|
Standard Color |
Silver |
|
|
Construction |
Extruded aluminum and heavy-duty steel, IP40 |
|
|
CPU |
Intel Atom® x6212RE processor, 1.2GHz/2C/6W Intel Atom® x6414RE processor, 1.5GHz/4C/9W |
|
|
Chipset |
SoC integrated |
|
|
System Memory |
1 x DDR4-3200 SO-DIMM, up to 32GB |
|
|
BIOS |
AMI |
|
|
TPM |
TPM 2.0 |
|
|
System I/O Outlet |
Serial |
2 x Terminal block isolated RS-232/422/284 (for slim type) 6 x Terminal block isolated RS-232/422/485 (for full type) |
|
Display |
1 x HDMI (up to 1920 x 1080 @60Hz) |
|
|
USB |
2 x USB 3.1 |
|
|
Ethernet |
3 x RJ-45 isolated 2.5 GbE LAN (Intel® i226-IT) Isolation voltage: 1.5 kV |
|
|
DIO |
1 x Isolated 8-in/8-out DIO (for full type) |
|
|
Others |
5 x Antenna opening |
|
|
Extension Interface |
1 x M.2 Key B 3050/3052 slot: USB (for 5G/Wi-Fi) 1 x Full-size Rev.1.2 PCI Express Mini Card slot: USB (for LTE/Wi-Fi) 1 x Half-size Rev.1.2 PCI Express Mini Card slot: USB/PCIe/SATA (for LTE/Wi-Fi/mSATA) 2 x SIM slot (1 for M.2; 1 for full-size PCI Express Mini Card) |
|
|
Storage |
1 x Internal 2.5” SATA Drive 1 x mSATA (occupied 1 x PCI Express Mini Card slot) 1 x M.2 (PCIe Gen3x2): NVMe (2242/2280) (optional) 1 x eMMC (optional) |
|
|
Watchdog |
255 levels, 1 to 255 sec. |
|
Power |
1 x Terminal block, 9 to 36 VDC, typical 12/24V |
|
System |
1 x LED indicator for SATA drive 1 x LED indicator for power 4 x Programable LED |
|
Operating |
-40°C to +70°C (-40°F to +158°F) Cold boot at -40°C |
|
Humidity |
10% to 95% |
|
Vibration Endurance |
3 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating) |
|
Dimensions |
Slim type: 55 mm (2.48") x 110 mm (4.33") x 155 mm (6.1") Full type: 66 mm (2.48") x 110 mm (4.33") x 155 mm (6.1") |
|
Weight |
Slim Type: 1.00 kg (2.2 lb) Full Type: 1.50 kg (3.3 lb) |
|
Certifications |
CE (Class A), FCC (Class A) |
|
EMC |
CE/FCC |
|
EOS Support |
Windows® 10 IoT, Linux |
|
Software Support |
eAPI |
|
* Wide Temperature. All W.T. supported products have to be sorted by Axiomtek. |
|
