Brand: ORing

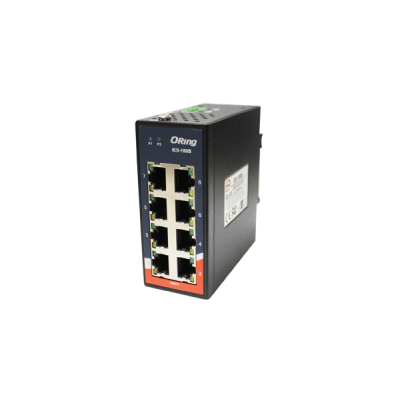

IES-180B - 8 port mini type unmanaged switch
In stock
SKU:
IES-180B
8x10/100Base-T(X) ports, IES-180B is with rigid IP-30 housing design and features extended operating temperature range from -40 oC to 75 oC.
Enquire Now
Enquire Now
- Supports 8 ports 10/100 Base-T(X)
- Supports auto-negotiation and auto-MDI/MDI-X
- Supports store and forward transmission
- Supports flow control
- Compact size for easily installation
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
| Physical Ports | |
|
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX |
8 |
| Technology | |
| Ethernet Standards |
IEEE 802.3 for 10Base-T |
| MAC Table | 1K MAC addresses |
| Processing | Store-and-Forward |
| Switch Latency | <7us |
| Switch Bandwidth | 1Gbps |
| Packet buffer size | 448K bits |
| LED Indicators | |
| Power Indicator | Green : Power LED x 2 |
| Fault Indicator | Amber : Indicates power failure occurred |
| 10/100Base-T(X) RJ45 Port Indicator |
Upper for Link/Act indicator, Green for port Link/Act. Lower for speed indicator, Amber for 100Mbps, OFF for 10Mbps |
| Fault Contact | |
| Relay | Relay output to carry capacity of 1A at 24VDC |
| Power | |
| Input Power | Dual 12~48 VDC power input on 4-pin terminal block |
| Power Consumption (Typ.) | 4 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Physical Characteristics | |
| Enclosure | IP-30 |
| Dimensions (W x D x H) | 41 (W) x 90 (D) x 95 (H)mm (1.61 x 3.54 x 3.74 inch) |
| Weight (g) | 383 g |
| Environmental | |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operating Humidity | 5% to 95% Non-condensing |
| Regulatory Approvals | |
| EMI | FCC Part 15, CISPR (EN55022) class A |
| EMS | IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Safety | EN60950-1 |
| Warranty | 5 years |
