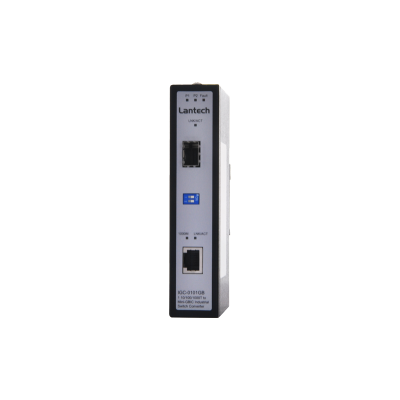

IGC-0101GB - industrial switch

In stock

SKU:

IGC-0101GB

- UL Class I Division II for Group A,B,C and D hazardous location
- Built-in LLF & LFP technology
- Wide-range redundant power with polarity reverse protection

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

_Standards	_{IEEE802.3 10Base-T} _{IEEE802.3u 100Base-TX/100Base-FX} _{IEEE802.3ab 1000Base-T} _{IEEE802.3x Flow Control and Back pressure} _{IEEE802.3z 1000BaseSX/LX standards}
_{Switch Architecture}	_{Store and Forward}
_{Jumbo Frame}	_9Kbytes
_{Fiber parameters}	_{Fiber Core: Multi-mode (62.5/125um, 50/125um)} _{Single-mode (9/125um)} _{Wavelength: 850nm(Multi-mode)} _{1310nm(Single-mode)} _{Fiber Distance: Based on transceiver type for different distance}
_{Link Lose Forward}	_{TX → Fiber: If TX port link down, the media converter will force Fiber port to link down} _{Fiber → TX: If Fiber port link down, the media converter will force TX port to link down}
_{DIP Switch}	_{DIP Switch 1:} _{ON: Enables Power Alarm} _{OFF: Disables Power Alarm} _{DIP Switch 2: TX → Fiber LLF(Link Lose Forwarding) & LFP (Link Fault Pass-Through) Disable/Enable}
_Connectors	_{Fiber: Mini-GBIC 3.3V} _{RJ-45 Socket: CAT-5 (10/100/1000Mbps) Twisted Pair cable Auto MDI/MDI-X and Auto-Negotiation Function Support}
_LED	_{Per unit: Power1 (Green), Power2 (Green), Fault (Red)} _{Fiber: Link/Active (Green)} _{TX: Link/Active (Green),1000M (Yellow)}
_{Power Supply}	_{24VDC (9~56VDC), 12~36VAC*, Redundant power with polarity reverse protect function and removable terminal block}
_{Power Consumption}	_{5.3 Watts}
_{Reserve polarity protection}	_Present
_{Overload current protection}	_Present
_{Operating Humidity}	_{5% ~ 95% (Non-condensing)}
_{Operating Temperature}	_{-20°C~60°C / -4°F~140°F (Standard model)} _{-40°C~75°C / -40°F~167°F (-E model)}
_{Storage Temperature}	_{-40°C~85°C / -40°F~185°F}
_{Case Dimension}	_{Metal case. IP-30, 30 (W) x 95 (D) x 140 (H) mm}
_Installation	_{DIN Rail and Wall Mount Design}
_{EMI & EMS}	_{FCC Class A,} _{CE EN61000-4-2 (ESD),} _{CE EN61000-4-3 (RS),} _{CE EN61000-4-4 (EFT),} _{CE EN61000-4-5 (Surge),} _{CE EN61000-4-6 (CS),} _{CE EN61000-4-8,} _{CE EN61000-4-11,} _{CE EN61000-4-12,} _{CE EN61000-6-2,} _{CE EN61000-6-4}
_Safety	_{UL, cUL, CE/EN60950} _{UL Class I Division II for Group A,B,C and D hazardous location}
_{Stability Testing}	_{IEC60068-2-32 (Free fall),} _{IEC60068-2-27 (Shock),} _{IEC60068-2-6 (Vibration)}
_MTBF	_{525424 hrs}
_Warranty	₅

This product is listed in Ethernet Switches

Downloads

Product Data Sheet

IGC-0101GB - industrial switch

Standards

IEEE802.3 10Base-T IEEE802.3u 100Base-TX/100Base-FX IEEE802.3ab 1000Base-T IEEE802.3x Flow Control and Back pressure IEEE802.3z 1000BaseSX/LX standards

Switch Architecture

Store and Forward

Jumbo Frame

9Kbytes

Fiber parameters

Fiber Core: Multi-mode (62.5/125um, 50/125um) Single-mode (9/125um) Wavelength: 850nm(Multi-mode) 1310nm(Single-mode) Fiber Distance: Based on transceiver type for different distance

Link Lose Forward

TX → Fiber: If TX port link down, the media converter will force Fiber port to link down Fiber → TX: If Fiber port link down, the media converter will force TX port to link down

DIP Switch

DIP Switch 1: ON: Enables Power Alarm OFF: Disables Power Alarm DIP Switch 2: TX → Fiber LLF(Link Lose Forwarding) & LFP (Link Fault Pass-Through) Disable/Enable

Connectors

Fiber: Mini-GBIC 3.3V RJ-45 Socket: CAT-5 (10/100/1000Mbps) Twisted Pair cable Auto MDI/MDI-X and Auto-Negotiation Function Support

LED

Per unit: Power1 (Green), Power2 (Green), Fault (Red) Fiber: Link/Active (Green) TX: Link/Active (Green),1000M (Yellow)

Power Supply

24VDC (9~56VDC), 12~36VAC*, Redundant power with polarity reverse protect function and removable terminal block

Power Consumption

5.3 Watts

Reserve polarity protection

Present

Overload current protection

Present

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-20°C~60°C / -4°F~140°F (Standard model)-40°C~75°C / -40°F~167°F (-E model)

Storage Temperature

-40°C~85°C / -40°F~185°F

Case Dimension

Metal case. IP-30, 30 (W) x 95 (D) x 140 (H) mm

Installation

DIN Rail and Wall Mount Design

EMI & EMS

FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11, CE EN61000-4-12, CE EN61000-6-2, CE EN61000-6-4

Safety

UL, cUL, CE/EN60950 UL Class I Division II for Group A,B,C and D hazardous location

Stability Testing

IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)

MTBF

525424 hrs

Warranty

5
