Brand: Axiomtek

IPC920 Fanless Industrial 13th/12th Gen CPU

In stock
SKU:
IPC920-x-F1x

Fanless Industrial System with LGA1700 Socket 13th/12th Gen Intel Core i9/i7/i5/i3 or Celeron Processor, Intel H610E/R680E, and Front-access I/O

Key Features:

  • Intelligent power management:
    - Ignition
    - USB power on/off control
  • Supports Intel® RAID (R680E)
  • Easy expansion via flexible I/O window
  • Supports connectors with pull-resistance design
  • Optional DIN-rail, bookshelf, and wall mount kit
  • EN 61000-6-2 certified

Enquire Now
Enquire Now

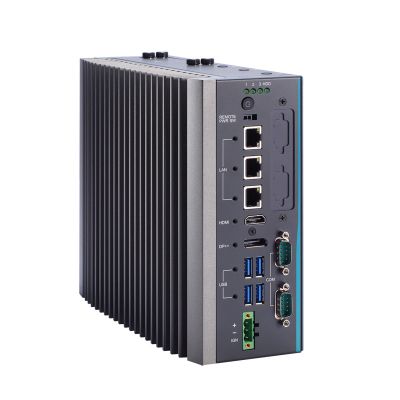

main product photo
We build to order

Introducing the IPC920, Axiomtek's state-of-the-art fanless industrial system designed to meet the rigorous demands of modern industrial applications. Powered by the latest 13th and 12th generation Intel® Core™ i9/i7/i5/i3 or Celeron® processors, this robust system features the Intel® H610E/R680E chipset and offers front-access I/O for enhanced accessibility and convenience.

Elevate your industrial computing capabilities with the IPC920, engineered for exceptional performance, reliability, and versatility to tackle the most demanding applications.



Ordering Information/Order Codes

  • IPC920-H-F1 (P/N-E26G920100)
    Industrial fanless system with Intel® H610E
  • IPC920-H-F1E (P/N-E26G920102)
    Industrial fanless system with Intel® H610E and 1 PCIe x16 slot
  • IPC920-R-F1 (P/N-E26G920101)
    Industrial fanless system with Intel® R680E
  • IPC920-R-F1E (P/N-E26G920103)
    Industrial fanless system with Intel® R680E, and 1 PCIe x16 slot




This product is listed in Embedded Computers, Axiomtek
Specifications

CPU

  • 13th/12th gen Intel® Core™ processor, up to 65W

Chipset

  • Intel® H610E/R680E

System Memory

  • 2 x 262-pin DDR5 4800/4000 ECC/non-ECC SO-DIMM, up to 64GB

BIOS

  • AMI

COM

  • 2 x RS-232 (4-wire)/422/485 (default RS-232), DB9 (by BIOS selection)

USB

  • Intel® H610E:

  • 2 x USB 3.2 Gen2x1 (10G) Type-A

  • 2 x USB 3.2 Gen1x1 (5G) Type-A

  • 1 x USB 2.0 180D Type-A (internal, up to 30mm)

  • Intel® R680E:

  • 4 x USB 3.2 Gen2x1 (10G) Type-A

  • 1 x USB 2.0 180D Type-A (internal, up to 30mm)

Ethernet

  • 2 x RJ-45 2.5GbE LAN (Intel® I226-V)

  • 1 x RJ-45 GbE LAN (Intel® I219-LM); with Intel® AMT (R680E)

Display

  • 1 x DisplayPort++ 1.2 with 4096 x 2160 resolution supported

  • 1 x HDMI 1.4b with 4096 x 2160 resolution supported

Digital I/O

  • N/A

Audio

  • N/A

Storage

  • 2 x 2.5" HDD/SSD bay (7/9.5 mm height) supporting RAID 0,1 (R680E)

  • 1 x M.2 Key M 2280 socket (PCIe x4)

Expansion

  • 1 x Full-size PCI Express Mini Card socket (USB & PCIe interface) with SIM slot

  • 1 x M.2 Key E 2230 socket

  • 1 x PCIe x16 Gen3 slot (up to 150W power for add-in card)

Others

  • TPM 2.0

  • 1 x HDD/SSD access LED

  • 3 x User's LED

Power

  • Input: 18VDC-36VDC

  • 1 x 3-pin terminal block for DC input, ignition control, and AT/ATX mode by BIOS setting

  • 1 x Power on/off button with LED (default ATX)

  • 1 x Remote power switch

Construction

  • Aluminum extrusion heavy-duty cold-rolled steel

Operating Temperature

  • -20°C to +60°C with 13th/12th gen Intel® Core™ processor and industrial wide temperature SSD, 0.7m/s air flow

Relative Humidity

  • 10% to 90%, non-condensing

Dimensions
(W x H x D)

  • IPC920-H-F1, IPC920-R-F1: 83.5 x 192 x 230 mm (3.29" x 7.56" x 9.06")

  • IPC920-H-F1E, IPC920-R-F1E:: 118.5 x 192 x 230 mm (4.67" x 7.56" x 9.06")

Weight (net/gross)

  • IPC920-H-F1, IPC920-R-F1: 3.2 kg/4.9 kg

  • IPC920-H-F1E, IPC920-R-F1E: 3.7 kg/5.4 kg

Software Support

  • N/A

EOS Support

  • Windows 10, Windows 11, Windows 10 IoT, Windows 11 IoT, Linux OS

Certifications

  • CE (EN 61000-6-4/EN 61000-6-2), FCC
Downloads
pdf
Datasheet
pdf
User Manual*
