Brand: Axiomtek

IPC964A Four-slot Industrial 14/13/12th Gen

In stock

SKU:

IPC964A-Q-ExF6

LGA1700 Socket 12th Gen Intel Core i7/i5/i3 or Celeron Processor, Intel Q670E, Front-access I/O, and PCIe & PCI Slots

Key Features:

4 PCIe/PCI slots
Optional extension system I/O window
Optional Support 5G network (Q670E)
USB power on/off control via BIOS setting
Intelligent power management - ACC ignition
EN 61000-6-2 certified
Supports Intel RST

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

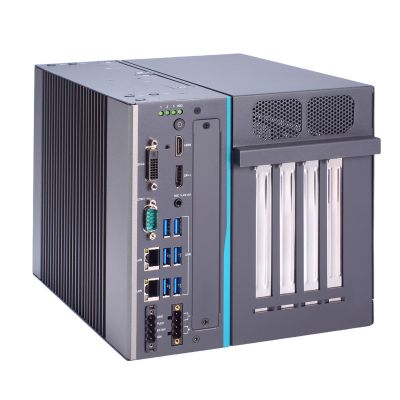

The IPC964A is a four-slot industrial system featuring an LGA1700 Socket for 14/13/12th Gen Intel Core i7/i5/i3/Celeron Processors, front-access I/O, and PCIe & PCI Slots. Ports can be customised using an extension system I/O window.

Key Features:

4 PCIe/PCI slots
Optional extension system I/O window
Optional Support 5G network (Q670E)
USB power on/off control via BIOS setting
Intelligent power management - ACC ignition
EN 61000-6-2 certified
Supports Intel® RST

This product is listed in Embedded Computers, Axiomtek, Industrial Automation, Transport

Specifications

CPU	14/13/12th gen Intel® Core™ processor, up to 65W
Chipset	Intel® Q670E
System Memory	2 x DDR5 4800/4000 SO-DIMM, up to 64GB
BIOS	AMI
COM	1 x RS-232/422/485 (default RS-232) More COM ports available from extension I/O modules
USB	6 x USB 3.2 Gen2x1 (10G) type A 1 x USB 2.0 (Q670E, internal,up to 30mm) 180D type A More USB ports available from extension I/O modules
Ethernet	1 x 2.5GbE LAN (Intel i226-LM) 1 x 1GbE LAN with Intel AMT More LAN ports available from extension I/O modules
Display	1 x DisplayPort++ with 4096 x 2304 resolution supported 1 x HDMI with 4096 x 2304 resolution supported 1 x DVI-D with 1920 x 1200 resolution supported
Digital I/O	Available from extension I/O modules
Audio	1 x 3.5mm jack for Mic-in and Line-out
Storage	2 x 2.5" HDD/SSD with Intel® RST supported (7/9.5/15 mm height) 1 x M.2 Key M 2280 socket (PCIe x4 Gen4)
Expansion	UP to 200W power for add-in card, 1 x USB 2.0 (180D type A) EIO141: 1 PCIe x16 Gen4 + 1 PCIe x8(x4 signal) Gen3 + 2 PCIe x4 Gen4 EIO142: 1 PCIe x16 Gen4 +1 PCIe x4 Gen4 +2 PCI 1 x Full-size PCI Express Mini Card slot (USB & PCIe interface) w/SIM slot 1 x M.2 Key E 2230 socket + 1 x M.2 Key B 3042/3050/3052/3060 socket w/SIM slot for 5G module or selected LTE module (optional)
Others	TPM 2.0 1 x HDD/SSD access LED 3 x User's LED 1 x Switch for power on/off with LED (default ATX)
Power	Input: 18 to 36 VDC 1 x Switch for power on/off with LED (default ATX) 1 x 4-pin terminal block (5.08 mm) for DC input 1 x 4-pin terminal block (5.08 mm) for ignition control, remote power and remote LED
Construction	Aluminum extrusion heavy-duty cold-rolled steel
Operating Temperature	-20°C to +70°C (+14°F to +140°F) with 12th gen Intel® Core™ processor and W.T. HDD/SSD
Relative Humidity	10% to 90%, non-condensing
Dimensions (W x H x D)	205 x 192 x 260 mm (8.07" x 3.62" x 10.24")
Weight (net/gross)	5.6 kg (12.35 lb) / 6.7 kg (14.78lb)
Software Support	AXView
EOS Support	Windows® 10, Linux
Certifications	CE (EN 61000-6-4/EN 61000-6-2), FCC

Downloads

Datasheet

User Manual

Ordering Information

IPC964A-Q-E1F5 (P/N-E26G964A00)
Industrial system with Intel® Q670E, EIO141 and blank extension system I/O cover; w/o Axiomtek logo
IPC964A-Q-E2F5 (P/N-E26G964A01)
Industrial system with Intel® Q670E, EIO142 and blank extension system I/O cover; w/o Axiomtek logo
AX93511 (P/N-E29R127101)
4 x RS-232/422/485 module (default RS-232)
AX93512 (P/N-E29R127102)
2 x RS-232/422/485 with isolated 1.5kVDC & 8-in/8-out with isolated 1.5kVDC DIO module
AX93516 (P/N-E29R127103)
4 x RS-232/422/485 with isolated 2kVDC module
AX93519 (P/N-E29R127104)
1 x 1GbE LAN + 2 x RS-232/422/485 + 2 x USB module
MIO160 (P/N-E39Q160100)
6 x Serial port (4-wire RS-232; TX/RX/RTS/CTS)/422/485 isolated 1.5kVDC & 2 CAN bus with isolated 1.5kVDC module (supporting the CAN 2.0A and CAN2.0B protocol)
